One cable to rule them all: HDMI KVM extender in practice
Imagine that your noisy server or monitoring recorder is located in a safe, isolated room, and you control it from the other end of the building. No delays, no loss of quality, in full 4K.
Sounds like a system worth thousands of EUR? Nothing could be further from the truth. Meet the HDMI KVM Extender - a device that redefines remote hardware management.
What is an HDMI KVM Extender and how does it work?
An HDMI KVM (Keyboard, Video, Mouse) extender is a set consisting of a transmitter and a receiver. Its task is to transmit video and control signals from the mouse and keyboard over a distance that no standard HDMI cable can handle.
Instead of thick, expensive, and damage-prone cables, the system uses ordinary, inexpensive twisted-pair network cable (Cat6/6a/7). In practice: one thin network cable transmits video, audio, and USB data over a distance of up to 60 metrów. You save on installation budget and gain neat, invisible cabling.

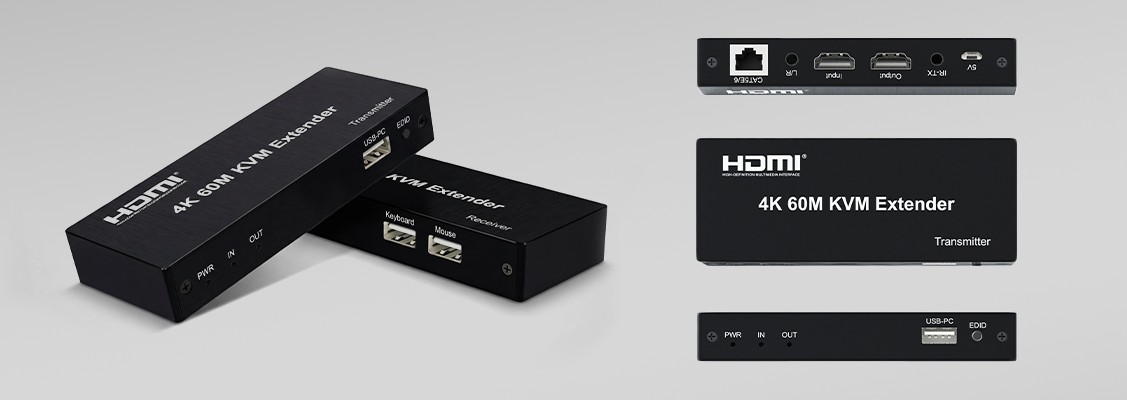

Technical specification: Spacetronik SPH-HLC11
| Feature | Parameters |
|---|---|
| Maximum range | Up to 60 metrów (when using Cat6/6a/7) |
| Maximum resolution | 4K @ 30 Hz (Ultra HD) |
| KVM function | Yes (2x USB in the receiver for mouse and keyboard) |
| HDMI Loop-out | Yes (additional output in the transmitter for a local monitor) |
| Remote control | IR support |
| Image management | EDID switch (for maximum compatibility) |
| Audio | 3,5 mm stereo L/R on TX and RX |
Where does a KVM extender work best?
Using an extender over twisted-pair cable is a solution to distance-related problems in many industries:
- CCTV monitoring: Hide the recorder in a safe cabinet, and place the monitor and mouse on the security desk.
- Professional Gaming and Streaming: Move the noisy computer to another room to enjoy silence in the gamer’s room while maintaining 4K quality.
- Server room management: Control workstations in the server room without having to stay in the cold and noise.
- Education and Conference Rooms: The lecturer’s computer under the desk, with control on the interactive whiteboard or main screen.
4 reasons why it’s worth choosing the Spacetronik extender
- Full KVM control (Keyboard, Video, Mouse).
- HDMI Loop-out output (Local preview).
- 4K stability and no delays.
- Smart EDID switch.
Solve the problem of tangled cables and distance limitations in your installation. Check out the Spacetronik SPH-HLC11 HDMI KVM Extender and take full control of your equipment from a distance.
