GSM Twin Poynting Cable CAB-143 HDF195 SMA 3m
Poynting CAB-143 HDF195 SMA (M) - SMA (F) 3m GSM Twin Cable
High-quality cable for an LTE antenna. The highest quality materials and precision workmanship guarantee excellent parameters, long service life, and user satisfaction.

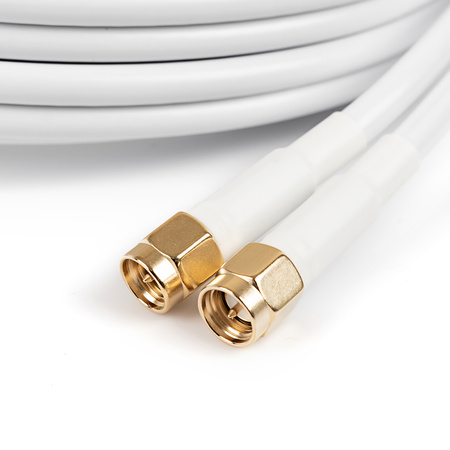

3-meter HDF195 cable with 50 Ohm impedance, terminated with an SMA male plug and an SMA female socket, will meet the requirements of even the most demanding users.
Electrical Specifications - Cable Type HDF 195
Operating Frequency (MHz) - 0 ~ 6000 MHz
VSWR - 0 ~ 6000 MHz: 1.35 Max
Input Impedance (Ohm) - 50 (nominal)
Capacitance(pF/m) - 83.3 pF/m
Velocity of Propagation (%) - 0.8
Time Delay (ns/m) - 4 ns/m
Attenuation (dB/m):
0.1GHz : 0.135dB/m
0.4GHz : 0.250dB/m
0.9GHz : 0.385dB/m
1.5GHz : 0.507dB/m
1.8GHz : 0.565dB/m
2.4GHz : 0.666dB/m
3.0GHz : 0.788dB/m
5.8GHz: 1.15dB/m
Mechanical Specifications
Inner Conductor: Material, Diameter (mm) - Copper Clad Aluminium 0.94
Dielectric: Material, Diameter (mm) - Foam PE 2.79
Outer Conductor: Material, Diameter (mm) - Tinned Copper 3.40
Jacket: Material, Diameter (mm) - Black PVC 4.95
Minimum Bending Radius (mm) - 50
Environmental Specifications
Operating Temperature - -30° to + 70°C
Environmental Conditions - Outdoor/Indoor
