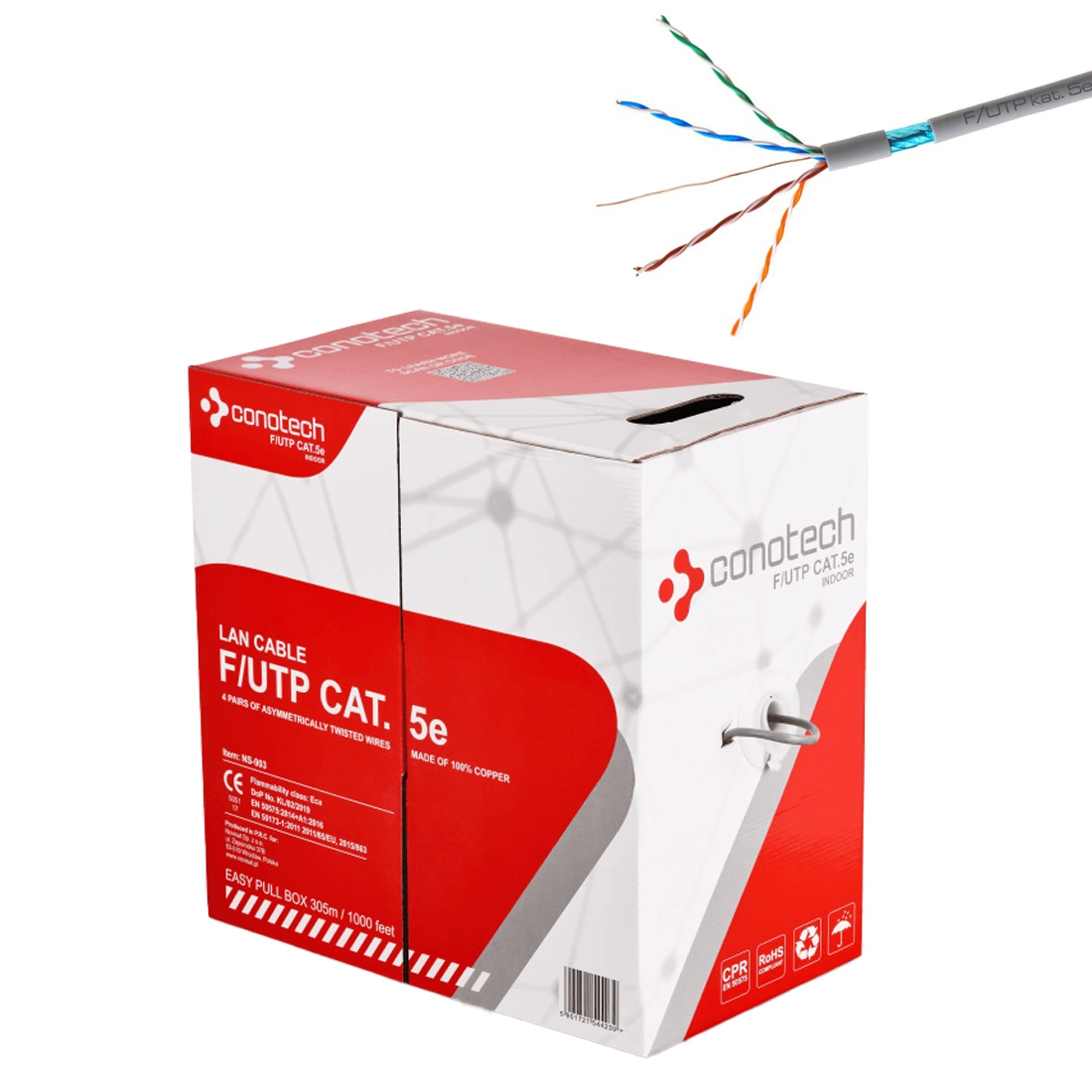

Conotech Computer Twisted Pair Cable F/UTP cat.5e shielded copper cable, indoor, gray 305m
Looking for a reliable cable to create a stable network at home or in the office? The Conotech F/UTP cat.5e computer twisted pair cable is a solid solution that combines high transmission quality with durable workmanship. Thanks to its shielding and the use of copper as the conductor, you can be sure of a clean and interference-free signal even in demanding installations. It is an ideal choice for modern ICT networks that require safety and full performance.
Key product features:
- Cable type: shielded F/UTP, cat.5e made of 100% pure copper
- Conductor structure: 4 pairs of asymmetrically twisted wires, diameter 0.50 ± 0.02 mm, wire – 24 AWG
- Shielding: aluminum shield (0.04 mm) and steel copper-clad grounding (FeCu) protecting against electromagnetic interference
- Wire insulation: solid HDPE polyethylene – high density and excellent dielectric properties
- Outer sheath: gray PVC, cable diameter Ø 5.00 ± 0.02 mm
- Mechanical resistance: durable and flexible sheath makes routing easier and protects the cable against damage

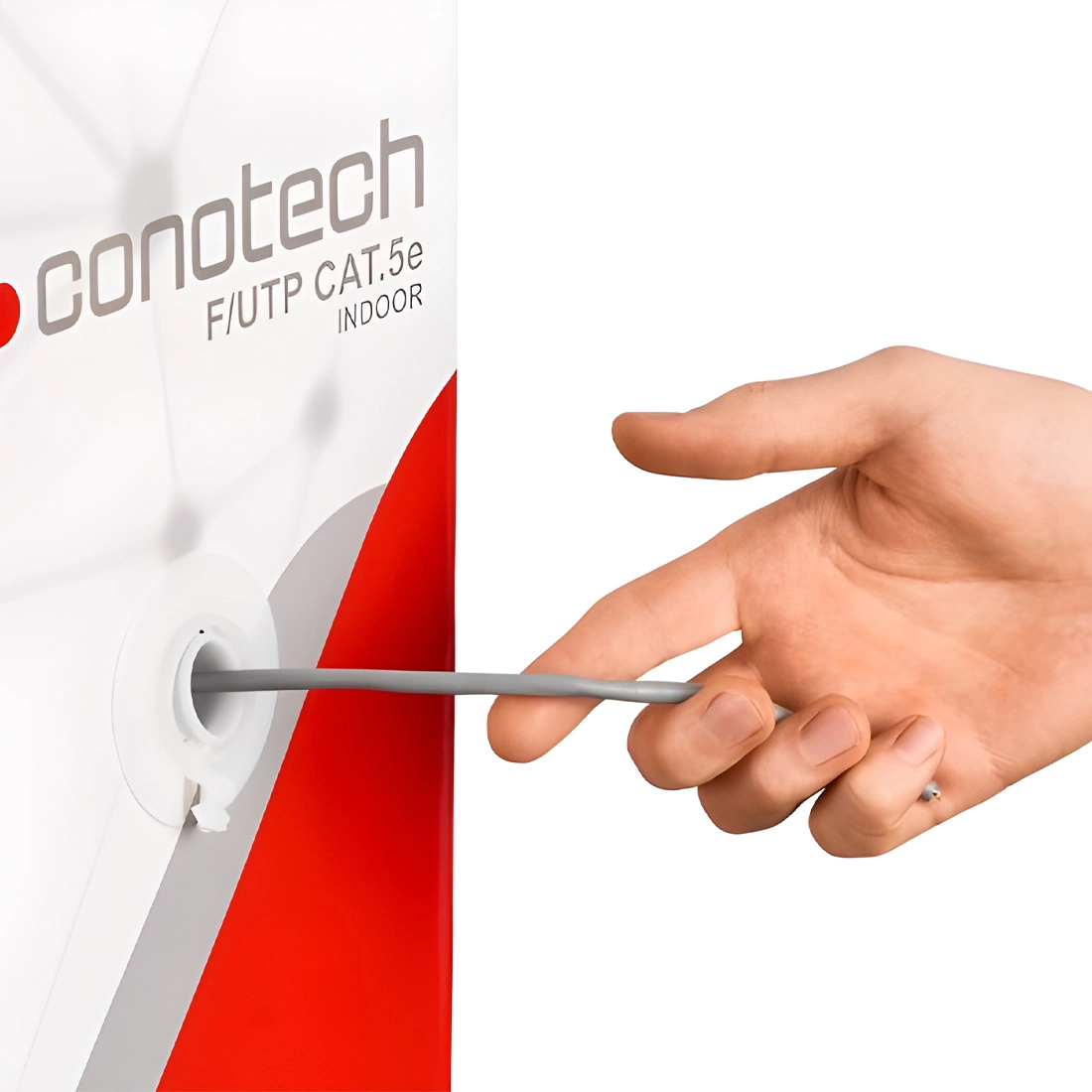

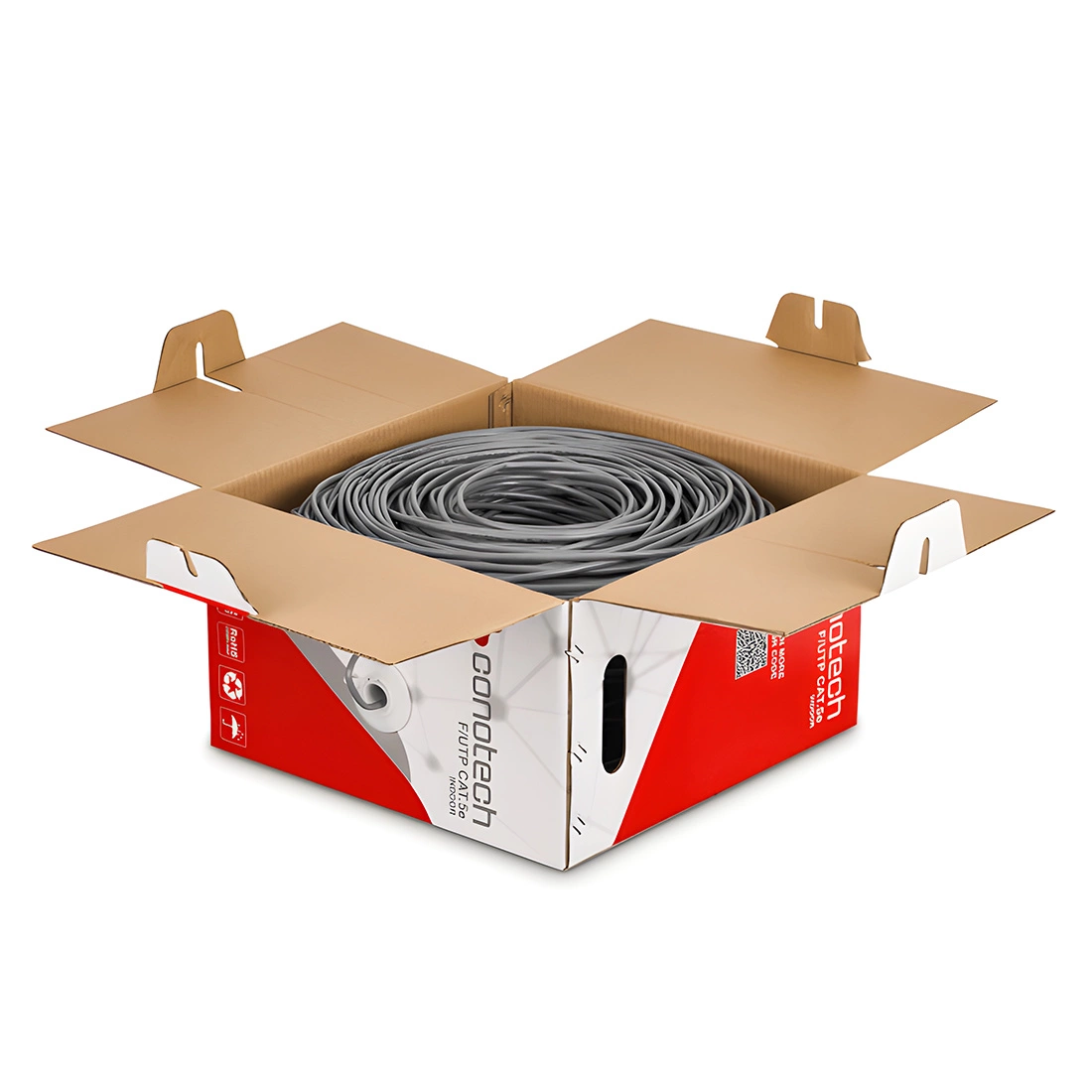

- Length: 305 m in a practical Easy Pull Box carton with meter marking
- Safety: Eca fire classification, compliance with CPR standards and European directives
- Operating temperature range: from -20°C to +70°C, installation from 0°C to +70°C
- Application: indoor installations – structured building cabling and industrial networks requiring protection against interference
Application
The Conotech F/UTP cat.5e computer twisted pair cable was designed for creating stable and secure wired connections in modern ICT installations. It is ideal for permanent installation in the structured cabling of office buildings, residential buildings, or public utility facilities. Thanks to its shielding and solid construction, the cable effectively protects data transmission against electromagnetic interference, which is of key importance in industrial networks. Its functional properties allow convenient cable routing inside buildings while ensuring the safety and reliability of the entire installation.
Technical specification
Parameters:
- Type: F/UTP, cat.5e made of pure copper
- Inner conductor: CU, four pairs twisted asymmetrically Ø 0.50 ± 0.02 mm, wire - 24 AWG
- Shield: aluminum, thickness 0.04 mm (AL)
- Grounding: steel copper-clad, diameter 0.50 mm (FeCu)
- Wire insulation: HDPE polyethylene (PE)
- Outer sheath: PVC, gray color
- Outer diameter: Ø 5.00 ± 0.02 mm
- Fire classification: Eca
- Operating temperature: -20 C ÷ +70 C
- Installation temperature: 0 C ÷ +70 C
- Minimum bending radius [x cable dia.]: >8
- Application: indoor
- Compliance with standards: ISO/IEC 11801:2010, EN 13501-6:2014 (CPR), EN 50173-1:2011, EN 50575:2014, IEC 61156-5:2002 oraz TIA/EIA 568-B.2:2001
