CAT5e U/UTP AWG24 CU PVC+PE 5.3 Fca 305m twisted pair cable
CAT5e U/UTP AWG24 CU PVC+PE 5.3 Fca 305m twisted pair cable
CAT5e U/UTP AWG24 CU PVC+PE 5.3 Fca 305m twisted pair cable

CAT5e U/UTP AWG24 CU PVC+PE 5.3 Fca 305m twisted pair cable

  • CAT5e U-UTP AWG24 twisted pair network cable 0.46BC copper conductor, PVC and PE double sheath for outdoor applications, outer diameter 5.3mm. Fluke Channel Test @ 90m ISO11801 Class D. CPR Class Fca. Black color. Packaging Pulbox 305m.
168,00 €
incl. VAT / pcs.
Regular price / pcs.
of
Quick 1-Click shopping (without registration)
You can also buy using:
Product available in very large quantities
Product available in very large quantities
14 days for easy returns
Safe shopping
Product sold out
You will receive an email notification from us when the product is available again.
Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Contact details entered above are not used to send newsletters or other advertisements. When you sign up to be notified, you hereby agree to receive only a one-time notification of a product re-availability.

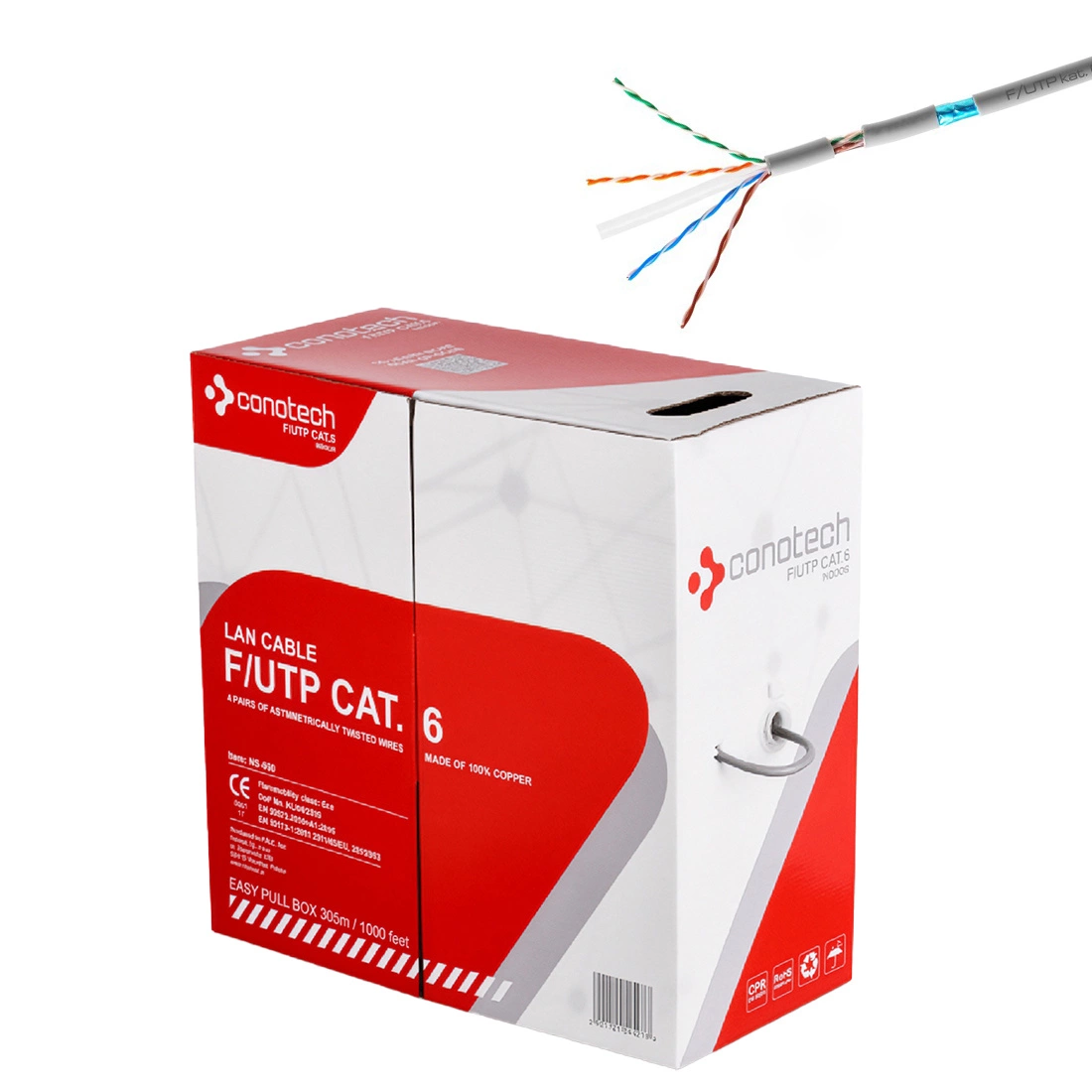

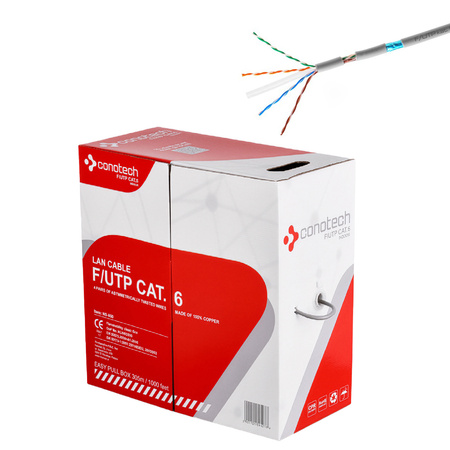

Conotech F/UTP cat.6 shielded copper computer twisted pair cable indoor grey 305m

Do you need a reliable cable to build a fast and stable network? Conotech F/UTP cat.6 computer twisted pair cable is a solid solution for indoor installations, ensuring high data transmission quality and effective protection against interference. Thanks to the use of pure copper and aluminium foil shielding, the cable guarantees reliable connections in demanding office and industrial environments.


Main product features:


- High transmission quality – made of 100% pure copper, ensures stable connections and reliable data transfer.
- Construction with cross separator – reduces interference between wire pairs, improving signal quality.
- Aluminium shield + FeCu grounding – effective protection against electromagnetic interference (EMI).
- Solid insulation – conductors insulated with high-density, high-dielectric HDPE polyethylene.
- Durable PVC outer sheath – grey jacket protects the cable against mechanical damage.

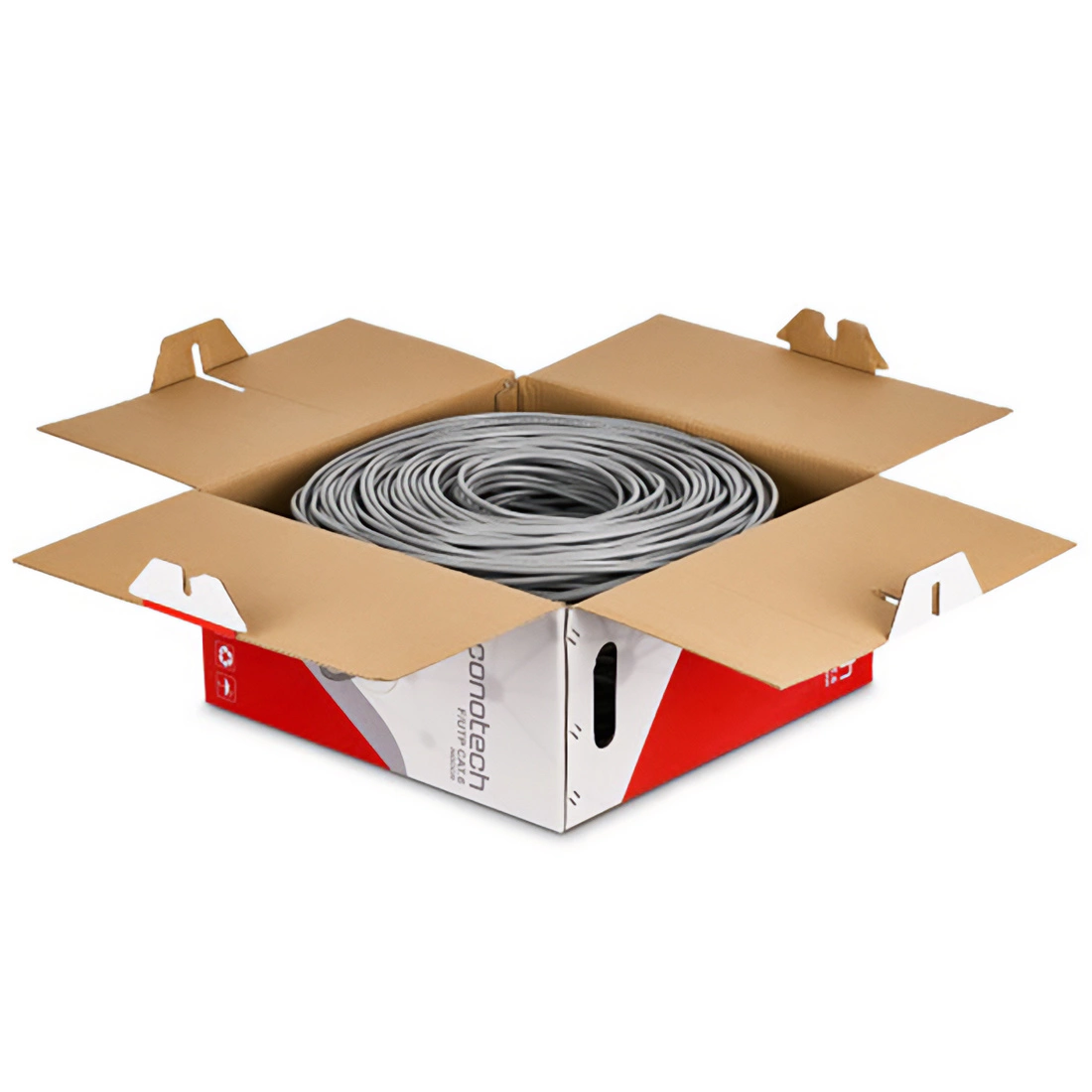

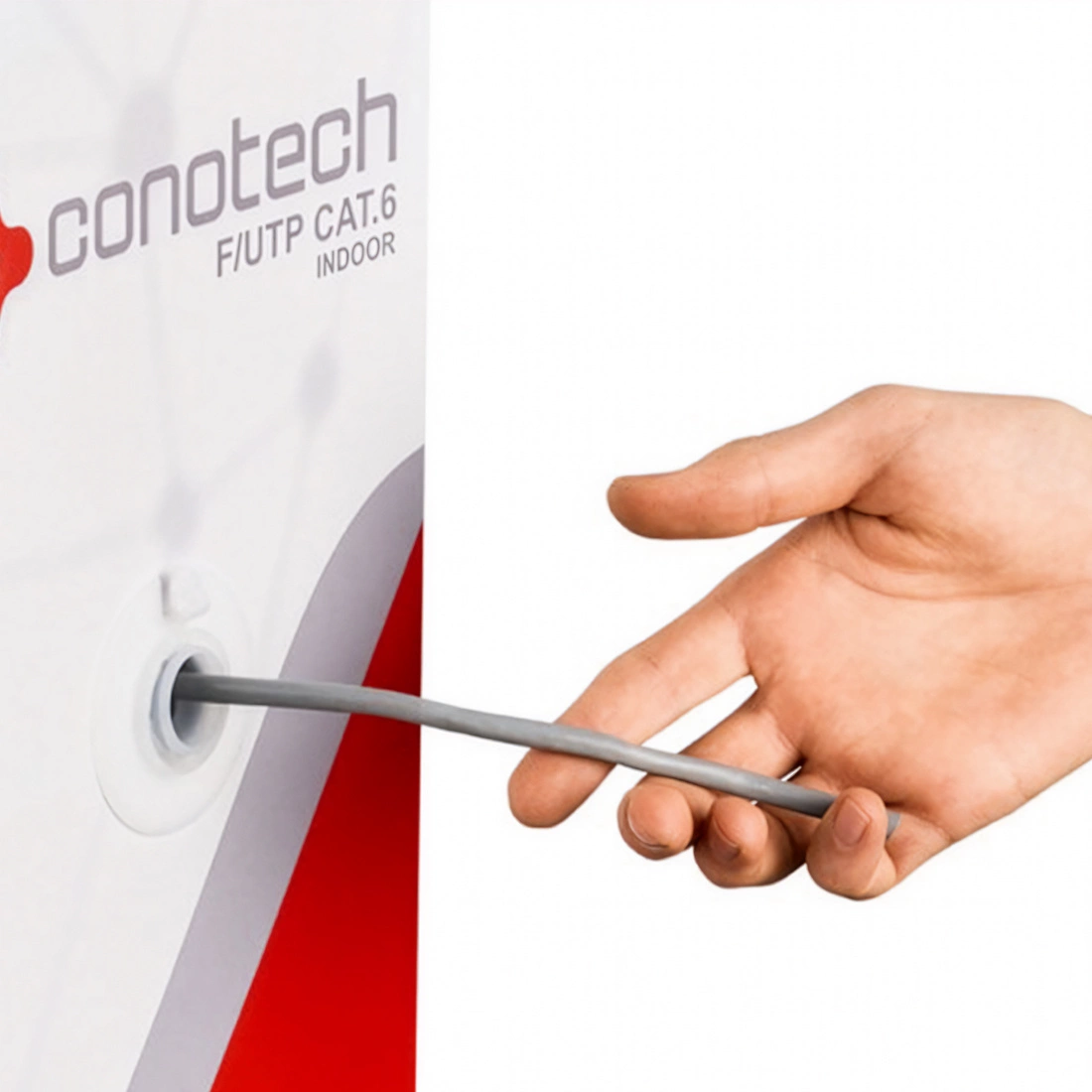

- Easy installation – cable packed in a practical Easy Pull Box with metre marking.
- Cable length 305 m – ideal for professional network installations.
- Eca flammability class – safe use in accordance with CPR standards.
- Wide operating temperature range – from -20°C to +70°C.
- Application – structured cabling of buildings and industrial networks exposed to interference.
- Full compliance with European standards – including ISO/IEC 11801, EN 50173, TIA/EIA 568-B.2.

skrętka komputerowa F/UTP kat.6 chechy

Practical application

Conotech F/UTP cat.6 computer twisted pair cable is a reliable solution for creating stable wired connections in ICT installations. The cable is suitable both for structured building cabling and industrial networks, where resistance to electromagnetic interference is important. Thanks to its design, it guarantees safe and convenient installation inside facilities, while also ensuring high-quality data transmission – both in digital and analogue form.

skrętka komputerowa F/UTP kat.6 zastosowanie

Technical specification

Parameters:
- Type: F/UTP, cat.6 made of pure copper
- Inner conductor: CU, four asymmetrically twisted pairs Ø 0.57 ± 0.02 mm, wire - 23 AWG
- Conductor insulation: HDPE polyethylene (PE)
- Cross separator: polyethylene (PE)
- Shield: aluminium with thickness of 0.04 mm (AL)
- Grounding: copper-clad steel with diameter of 0.50 mm (FeCu)
- Outer sheath: PVC compound, grey colour
- Outer diameter: Ø 6.00 ± 0.02 mm
- Flammability class: Eca
- Operating temperature: -20 C ÷ +70 C
- Installation temperature: 0 C ÷ +70 C
- Minimum bending radius [x cable dia.]: >8
- Intended use: indoor
- Compliance with standards: ISO/IEC 11801:2010, EN 13501-6:2014 (CPR), EN 50173-1:2011, EN 50575:2014, IEC 61156-5:2002 and TIA/EIA 568-B.2:2001

product features
List price
168,00 €/1pcs.
Entity responsible for this product in the EU
DMTrade Mikołaj TomaszewskiMore
ProducerDMTrade Mikołaj TomaszewskiAddress: ul. Wiśniowa 36Postal code: 64-000City: KościanCountry: PolskaPhone number: +48 61 111 02 52E-mail: info@dmtrade.pl
Responsible entityDMTrade Mikołaj TomaszewskiAddress: ul. Wiśniowa 36Postal code: 64-000City: KościanCountry: PolskaPhone number: +48 61 111 02 523E-mail: info@dmtrade.plDescription: DMTrade
Symbol
CAT6FTP305NS600
Producer code
5901721544277
Warranty
Cable length
305 m
Cable category
CAT 6
Color
Gray
Shielding
F/UTP
Core
CU (copper)
