CAT5e U/UTP AWG24 CU PVC+PE 5.3 Fca 305m twisted pair cable
CAT5e U/UTP AWG24 CU PVC+PE 5.3 Fca 305m twisted pair cable
CAT5e U/UTP AWG24 CU PVC+PE 5.3 Fca 305m twisted pair cable

CAT5e U/UTP AWG24 CU PVC+PE 5.3 Fca 305m twisted pair cable

  • CAT5e U-UTP AWG24 twisted pair network cable 0.46BC copper conductor, PVC and PE double sheath for outdoor applications, outer diameter 5.3mm. Fluke Channel Test @ 90m ISO11801 Class D. CPR Class Fca. Black color. Packaging Pulbox 305m.
174,00 €
incl. VAT / pcs.
Lowest price in 30 days before discount 150,50 € / pcs.
Regular price 185,60 € / pcs.
of
Quick 1-Click shopping (without registration)
You can also buy using:
Product available in very large quantities
Product available in very large quantities
14 days for easy returns
Safe shopping
Product sold out
You will receive an email notification from us when the product is available again.
Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Contact details entered above are not used to send newsletters or other advertisements. When you sign up to be notified, you hereby agree to receive only a one-time notification of a product re-availability.

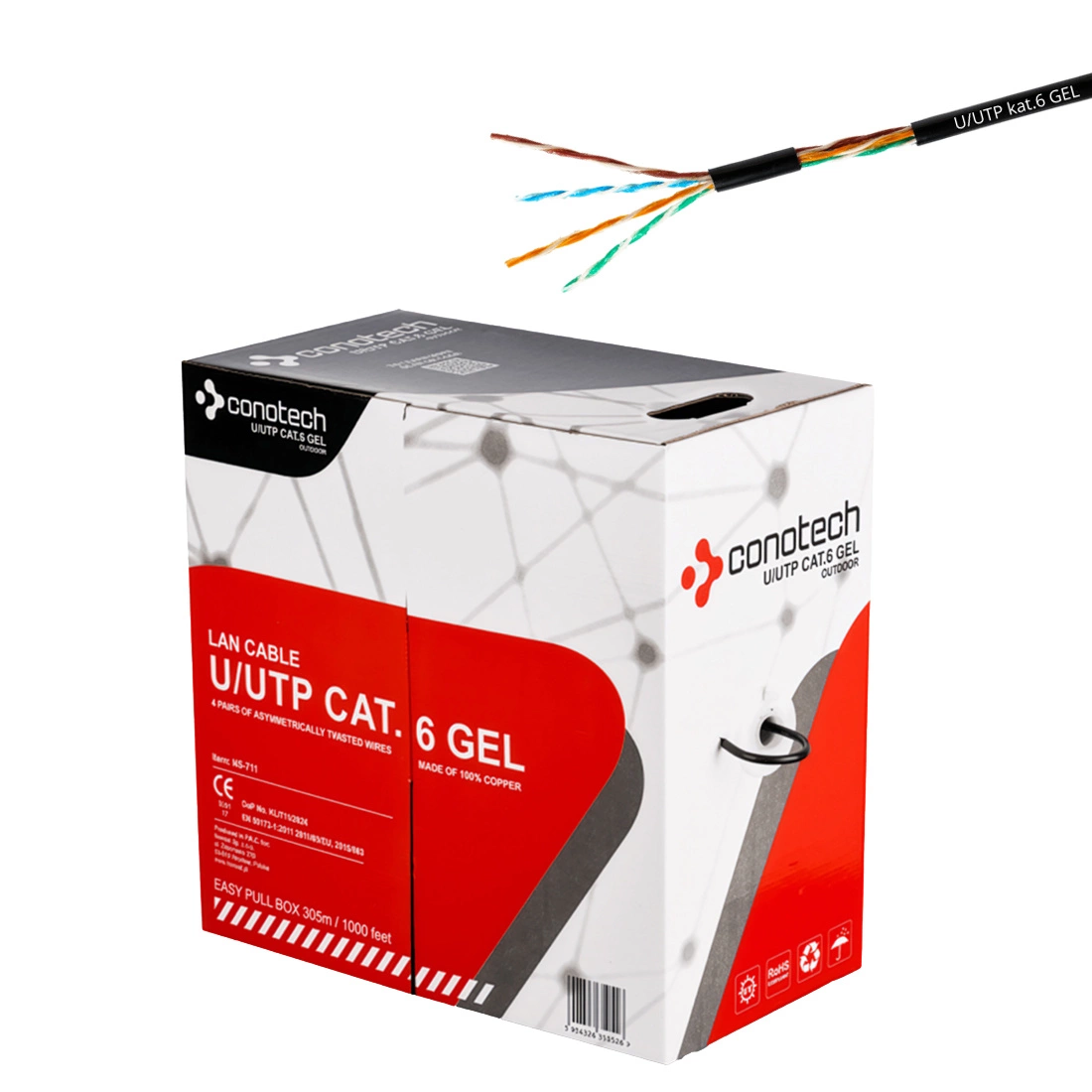

Conotech U/UTP Cat.6 GEL computer twisted-pair cable – copper, outdoor, black UV, gel-filled – 305 m

Are you looking for a reliable cable for building a modern and durable network installation? Conotech U/UTP Cat.6 computer twisted-pair cable is a cable designed for demanding outdoor conditions. Made of pure copper, equipped with a UV-resistant sheath and gel filling, it ensures stable and secure data transmission even in harsh environments. It is an excellent choice for professional ICT installations where reliability and high transmission quality matter.


Key product features:


- Cable type: U/UTP Cat.6 GEL + PE computer twisted-pair cable, made of pure copper.
- Construction: four pairs of 23 AWG copper conductors (Ø 0.57 ± 0.02 mm) twisted asymmetrically, separated by a cross separator.
- Insulation: high-density HDPE polyethylene with the addition of hydrophobic gel protecting against water penetration.
- Outer sheath: black PE polyethylene, resistant to UV radiation and mechanical damage.
- Outer cable diameter: Ø 6.0 ± 0.02 mm.
- Flammability class: Fca.
- Operating conditions: operating temperature from -20°C to +70°C, installation temperature from 0°C to +70°C.
- Minimum bending radius: >8 cable diameters.
- Application: outdoor and underground installations in ICT and industrial networks.
- Protection: filling gel provides additional resistance to moisture and stable signal transmission.

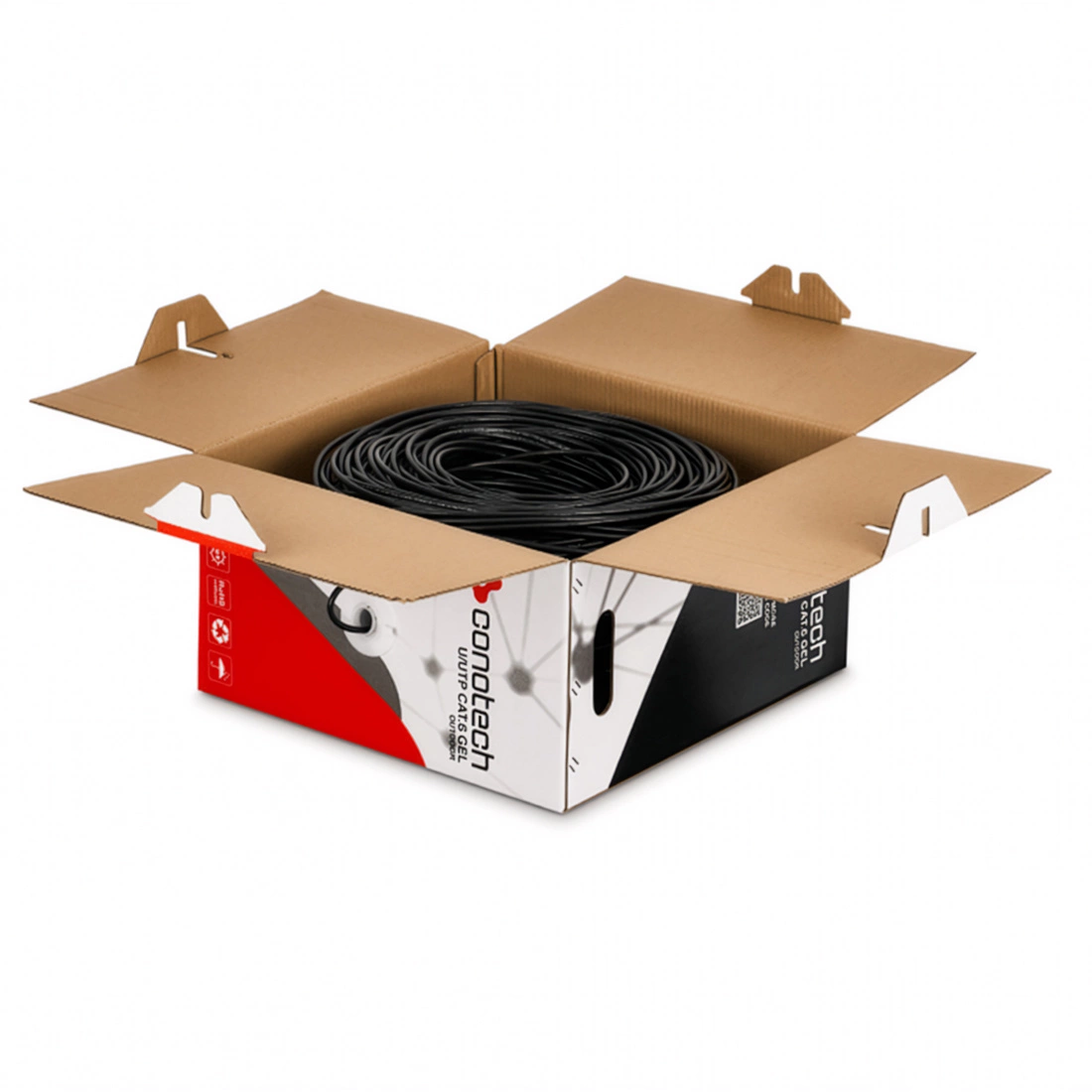

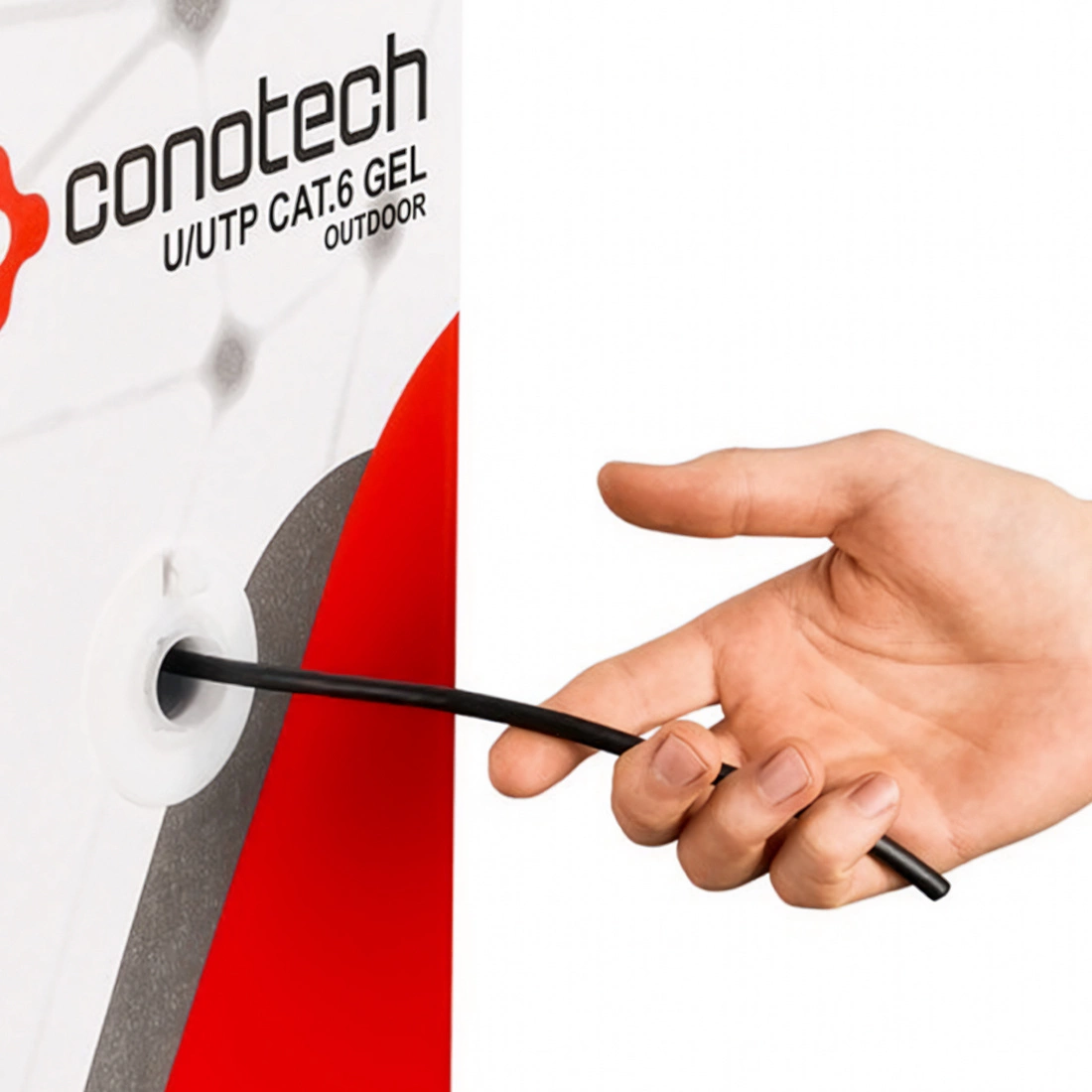

- Packaging: 305 m length in a practical Easy Pull Box carton with metre marking.
- Compliance with standards: ISO/IEC 11801:2010, EN 50173-1:2011, IEC 61156-5:2002, TIA/EIA 568-B.2:2001.
- Certificates: standardized quality confirmed by the National Institute of Telecommunications in Warsaw.

skrętka komputerowa U/UTP kat.6 GEL chechy

Practical application

Conotech U/UTP Cat.6 computer twisted-pair cable was created for reliable data transmission – both analogue and digital. It is ideal for ICT installations and fixed structured cabling in buildings. Thanks to the UV-resistant PE polyethylene sheath and gel filling, the cable is fully prepared for operation in difficult conditions – both outdoors and underground. This construction protects the installation against moisture, mechanical damage and interference, ensuring stable and secure signal transmission in every situation.

skrętka komputerowa U/UTP kat.6 GEL zastosowanie

Technical specification

Parameters:
- Type: U/UTP, Cat.6 GEL + UV made of pure copper
- Inner conductor: CU, four pairs twisted asymmetrically Ø 0.57 ± 0.02 mm, wire - 23 AWG
- Conductor insulation: HDPE polyethylene (PE) + hydrophobic gel
- Cross separator: polyethylene (PE)
- Outer sheath: PE polyethylene, black color
- Outer diameter: Ø 6.0 ± 0.02 mm
- Flammability class: Fca
- Operating temperature: -20 C ÷ +70 C
- Installation temperature: 0 C ÷ +70 C
- Minimum bending radius [x cable diam.]: >8
- Intended use: outdoor, underground
- Compliance with standards: ISO/IEC 11801:2010, EN 50173-1:2011, IEC 61156-5:2002 and TIA/EIA 568-B.2:2001

product features
List price
185,60 €/1pcs.
Entity responsible for this product in the EU
DMTrade Mikołaj TomaszewskiMore
ProducerDMTrade Mikołaj TomaszewskiAddress: ul. Wiśniowa 36Postal code: 64-000City: KościanCountry: PolandPhone number: +48 61 111 02 52E-mail: info@dmtrade.pl
Responsible entityDMTrade Mikołaj TomaszewskiAddress: ul. Wiśniowa 36Postal code: 64-000City: KościanCountry: PolandPhone number: +48 61 111 02 523E-mail: info@dmtrade.plDescription: DMTrade
Symbol
CAT6UTP305NS711
Producer code
5904326350526
Warranty
Cable length
305 m
Cable category
CAT 6
Color
Black
Shielding
U/UTP
Core
CU (copper)
