Spacetronik TV-FC05 F compression connector - 50 pcs.

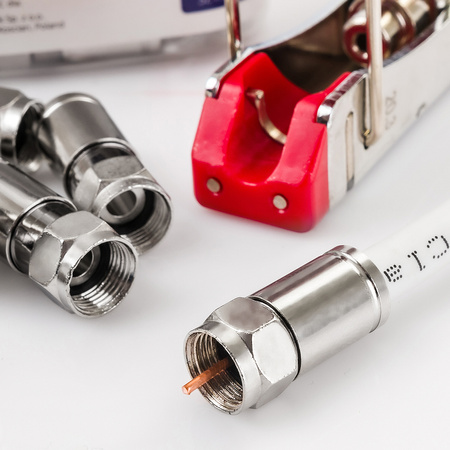

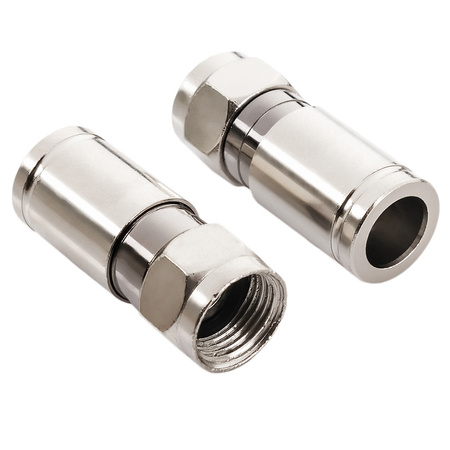

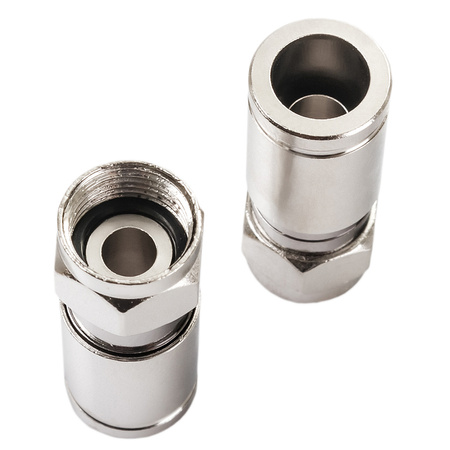

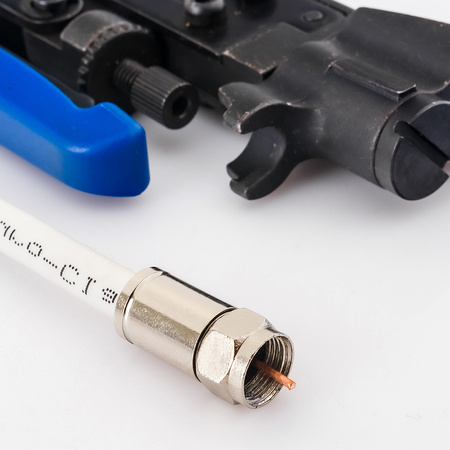

Spacetronik F-type comp ression connector designed for use with RG6 coaxial cable with jacket diameter ~ 6.5 - 7 mm. The F-type connector requires crimping using any compression crimper. The carefully crafted thread guarantees easy screwing onto the socket, with minimal attenuation. The O-ring inner seal allows the connector to be used both indoors and outdoors.
F compression connector F TV-FC05 - application
Spacetronik F comp ression connector is used, among others, in terrestrial, satellite and CCTV installations.
Specifications
Technical parameters:
- Manufacturer: Spacetronik
- Manufacturer code: TV-FC05
- Cable assembly: compression
- Connection, housing material: brass
- Connection, contact material: nickel
- Frequency range: 5...2400 MHz
- Impedance: 75?
- Outer diameter: 11mm
- Inner diameter: 7mm
- Inner sleeve diameter: 5.1mm
- Total length: 27mm
- O-ring gasket

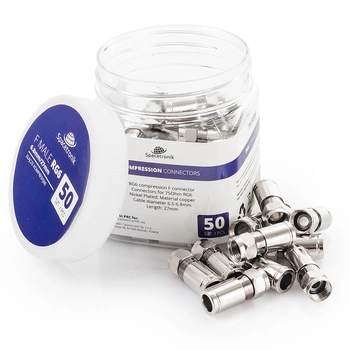

- Quantity: 50 pcs
