TV-IECF02

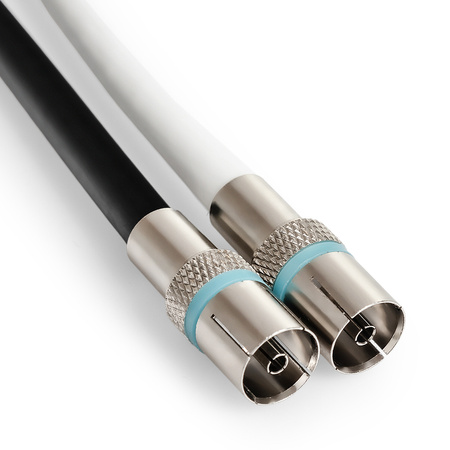

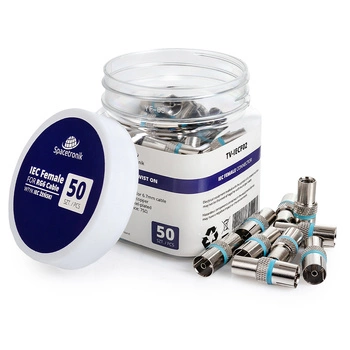

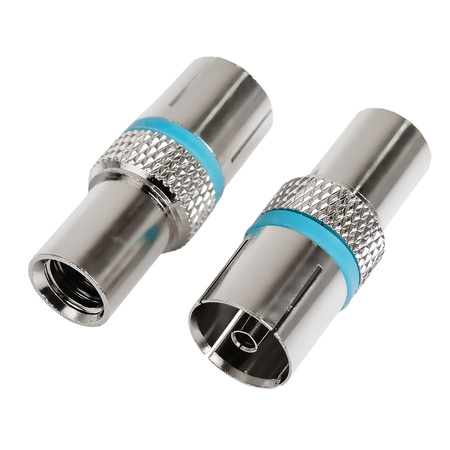

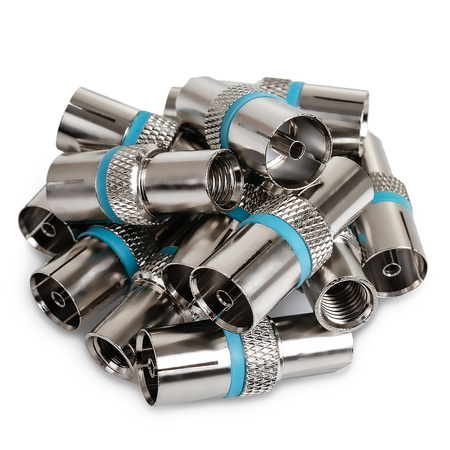

TWISTED TV screw-on IEC female socket TV-IECF02 50pcs
The socket is cast from light alloys, which ensures high mechanical stability and very good shielding.

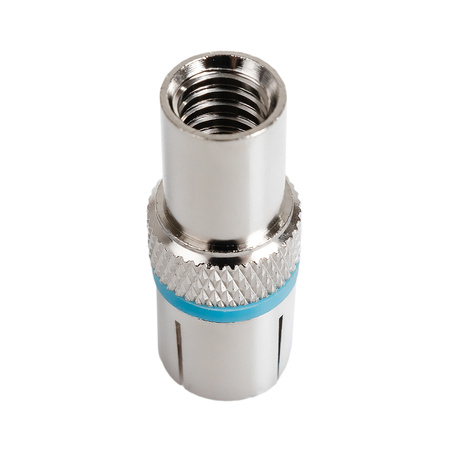

An RG6 coaxial antenna cable with a braid turned up on its outer jacket is screwed into the threaded hole of the body.
The connection of the plug with the inner conductor is made automatically (pressure mechanism), without soldering.
TV socket-IECF02 - application
TWISTED TV sockets are designed for detachable, multiple connections to electronic devices equipped with IEC male sockets, e.g. subscriber outlets
Technical specifications
- IEC female TV socket- RoHS compliant
- Impedance: 75?
- Construction material: brass, electroplated nickel plated
- Certification: ROHS, REACH

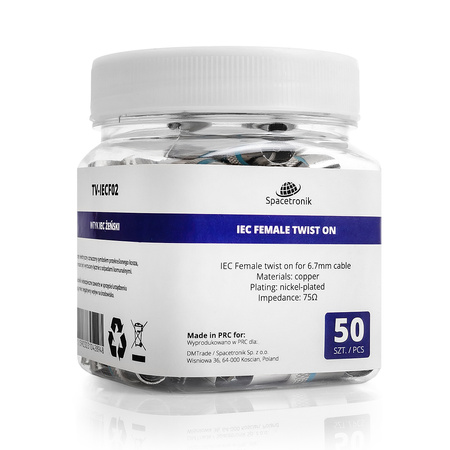

- Quantity: 50pcs.
product features
List price
23,00 €/1pcs.
Brand
Entity responsible for this product in the EU
Spacetronik Sp. z o.o.More
ProducerSpacetronik Sp. z o.o.Address:
ul. Wiśniowa 36Postal code: 64-000City: KościanCountry: PolandPhone number: +48661082052E-mail: info@spacetronik.pl
Responsible entitySPACETRONIK Sp. z o.o.Address:
ul. Wiśniowa 36Postal code: 64-000City: KościanCountry: PolandPhone number: + 48 661 082 052E-mail: info@spacetronik.plDescription: SPACETRONIK
Symbol
TV-IECF02
Producer code
TWISTED TV-IECF02 50pcs female IEC TV socket59030310428948
