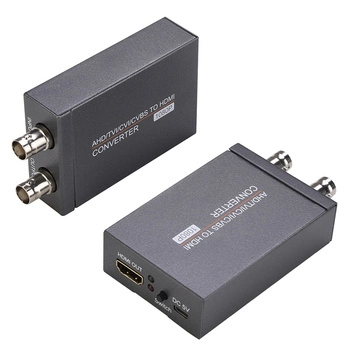

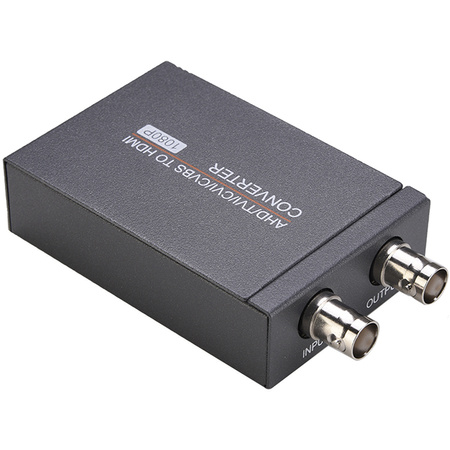

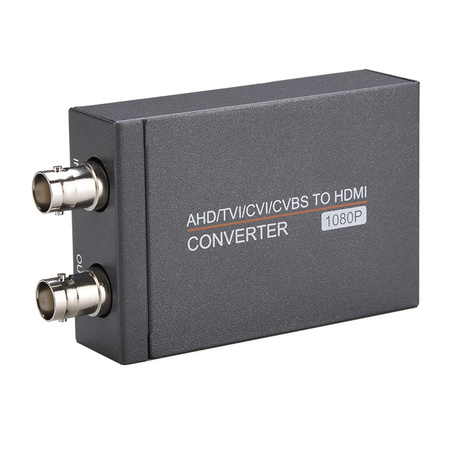

AHD/TVI/CVI to HDMI Converter SP-AHTV03
TVI / AHD / CVI to HDMI converter can transmit TVI / AHD / CVI signal to HDMI output using digital processing, which does not reduce the image quality and converts TVI / AHD / CVI signal to HDMI up to 1080p, making the image clear and stable. It can convert ordinary AHD camera signal to HDTV signal, through HDMI interface connected to a TV set, for example. The TVI/AHD/CVI converter is extremely easy to use. As with traditional solutions, use an ordinary coaxial cable, which can be run up to 700 meters with lossless HD transmission. The product broke the existing limit of HD video transmission technology, so you can get low transmission cost, long distance, no delay, high performance, anti-interference.
The main features of the converter
- AHD/TVI/CVI/CVBS conversion The TVI CVI AHD CVBS media interface converter allows you to seamlessly convert the above-mentioned signals into HDMI 720 and 1080P HD interface signals.

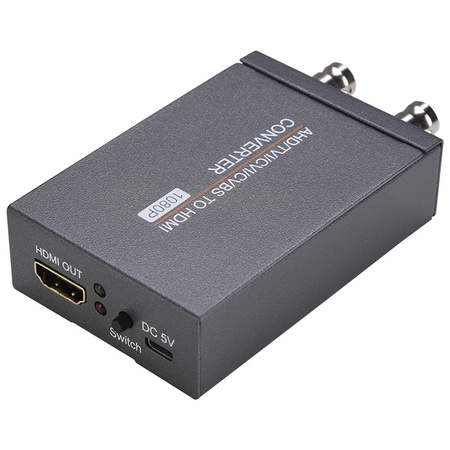

- HDMI and BNC output: the HDMI video output supports 1080p or 720p and 60 Hz resolution, which can be selected with a switch. In addition, the device has a BNC video pass-through output, so you can connect multiple devices simultaneously.
- Lossless quality: The device processes video absolutely losslessly and preserves the original brightness, contrast and colors of the image.
- Automatic resolution adjustment: The device will automatically adjust and select the resolution available to it between 720p and 1080p.
- Long range: The device allows transmission up to 700m depending on conditions and connection quality....
How to connect the AHD to HDMI converter?

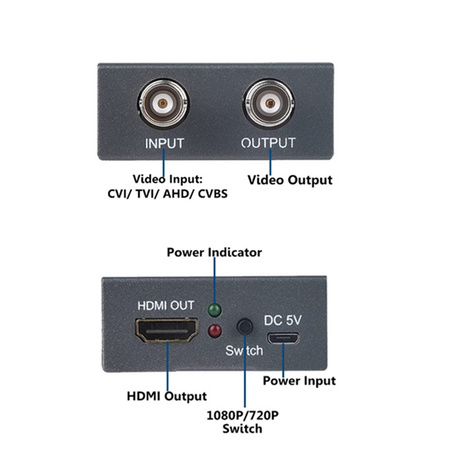

To connect the device, simply connect the input device in place of BNC Input, and in place of HDMI OUT connect the output device, such as a monitor. The device has an additional BNC output, so we can create loops and connect the device additionally, for example, to a DVR, without having to buy an additional device.
Converter specifications
- Input ports: 1x BNC
- Output ports: 1x HDMI, 1x BNC
- TVI AHD: 720p and 30 Hz, 1080p and 30 Hz, 3 MP, 4 MP, 5 MP, 8 MP
- CVI: 720P, 1080P, 4MP, 8MP
- HDMI output resolution: 1080p and 60 Hz, 720p and 60 Hz
- Impedance: 75 ohms
- Power supply: DC USB 5V/1A
- Dimension: approximately 83x 55 x 23mm
- Weight: approximately 60g
