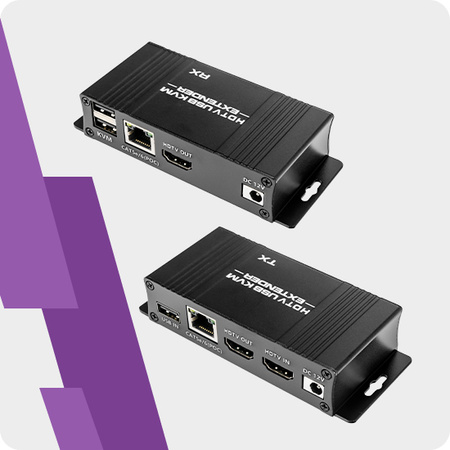

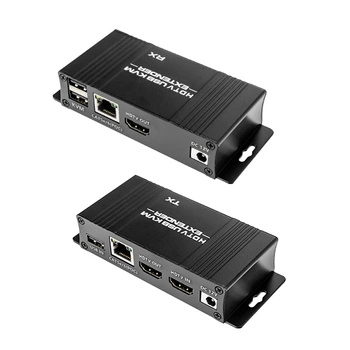

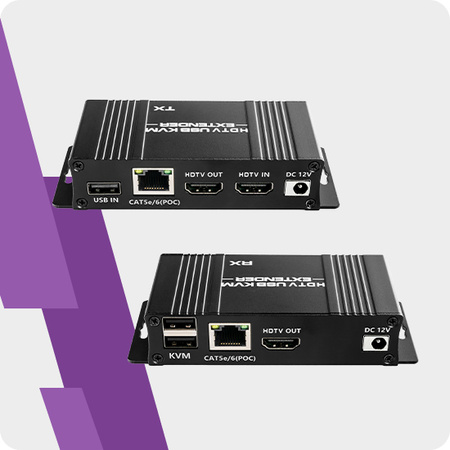

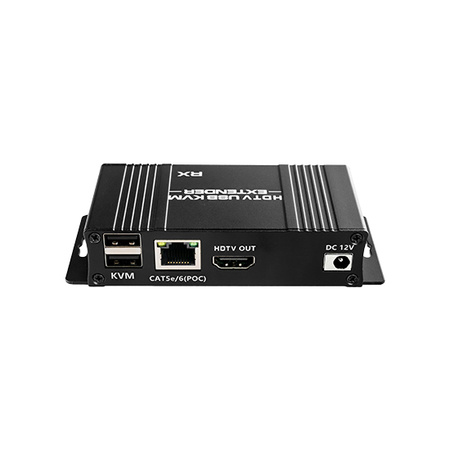

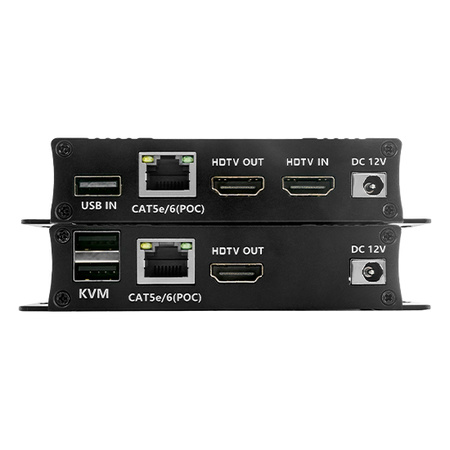

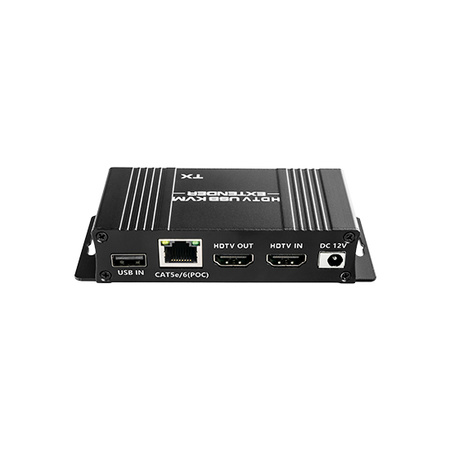

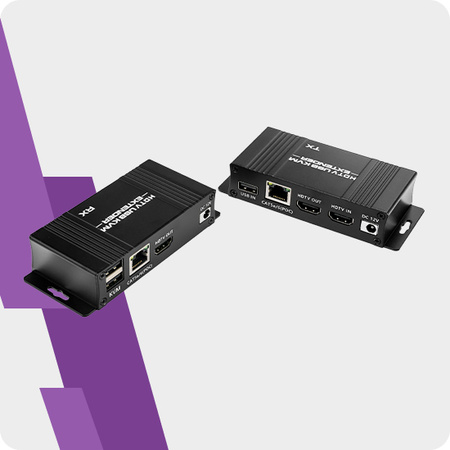

HDMI to LAN - RJ45 2xUSB 60m Spacetronik SPH-HLC6 KVM converter
Spacetronik's HDMI USB KVM Extender is an advanced device that allows you to transmit HDMI and USB signals over a distance of up to 60 meters via CAT5e/6 cable. With support for HDMI 1.4b and USB 2.0 standards, the device provides 1080p quality signal transmission at 60 Hz without delay or compression, ensuring excellent video and audio quality. A CAT5e/6 port (POC) is used to simultaneously transmit signals and power between the transmitter and receiver, simplifying installation and eliminating the need for additional power cables. The extender is ideal for professional applications such as controlling a computer from a remote location, allowing convenient management of devices and displays without the need for long HDMI and USB cables.
Key features of the HDMI KVM to LAN - RJ45 USB 60m Spacetronik Converter
- HDMI 1.4b, HDCP 1.4
- Video resolution support: Up to 1920x1080p25/30/50/60
- Audio transmission via HDMI
- Zero latency and uncompressed transmission technology
- Full USB 2.0 transmission and routing speed
- Supports 12V POC (Power over Cable) function
- Signal transmission range: up to 60m for HD 1080p@60Hz
- Color depth: 8-bit
- Supported HDMI audio formats: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+
- Dimensions: 118mm (W) x 50mm (D) x 24.6mm (H)
- Weight: 95g (transmitter and receiver)
- Power supply: input AC 100-240V 50/60Hz, output DC 12V/1A
Advanced transmission technology

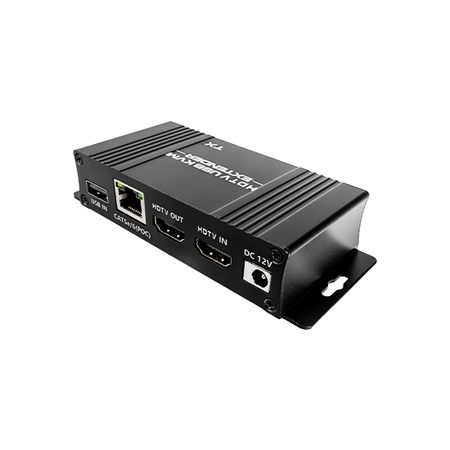

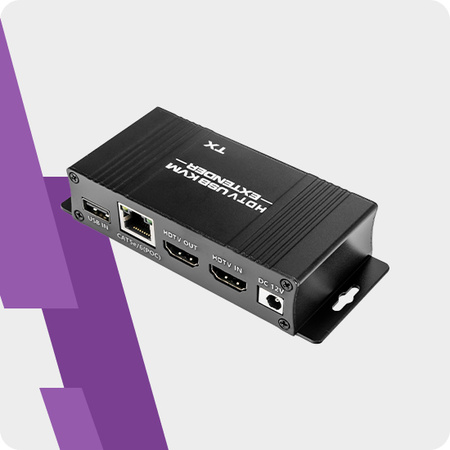

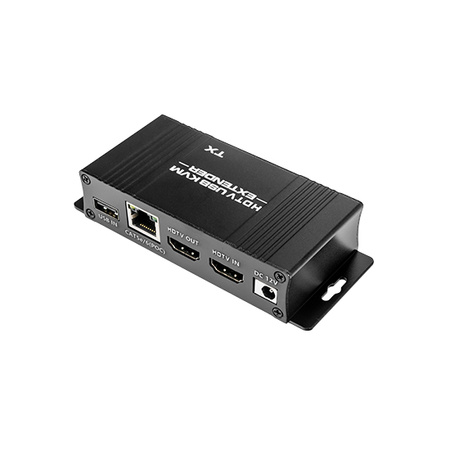

Spacetronik's HDMI USB KVM Transmitter allows you to transmit HDMI and USB signals over a distance of up to 60 meters using CAT5e/6 cable. With zero latency technology and uncompressed transmission, the device guarantees excellent video and audio quality with no lag, making it ideal for professional applications.
Support for high resolution
The device supports a wide range of video resolutions, including 1080p at 60 Hz, 720p, 1024x768 and other formats, providing flexibility in the choice of video source. No matter what resolution you choose, you can count on clear and detailed images.
Audio signal transfer
With built-in audio transmission over HDMI, the Spacetronik device provides a complete audio-visual experience. It supports audio formats such as LPCM 2/5.1/7.1CH, Dolby Digital and DTS 5.1, guaranteeing high quality audio with every projection.
Easy installation and power supply
With Power over Cable (POC) technology, the transmitter and receiver can be powered by a single power source, simplifying installation and eliminating the need for additional power cables. This solution provides convenience and saves time during system setup.
Spacetronik SPH-HLC6 KVM HDMI to LAN - RJ45 2xUSB 60m converter specifications:
Model:
SPH-HLC6 KVM
HDMI Compatibility:
HDMI 1.4b
HDCP Compatibility:
HDCP 1.4
USB Compatibility:
USB 2.0
Video resolutions:
720x576p50, 720x480p60, 640x480p60/75, 800x600p60/75, 1024x768p60/75, 1280x1024p60, 1680x1050p60, 1280x720p25/30/50/60, 1920x1080p25/30/50/60
Transmission range:
HD (1080p@60Hz 24-bit color) up to 50m (164ft)
Color depth:
8-bit
HDMI audio formats:
LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+
ESD protection:
Human body model ?8kV (discharge in air) and ?4kV (discharge on contact)
Dimensions:
118mm (W) x 50mm (L) x 24.6mm (H)
Weight:
95g (transmitter and receiver)
Power supply:
AC input 100-240V 50/60Hz, DC output 12V/1A (US/EU standards)
Power consumption:
Transmitter 1.92W (max), Receiver 1.68W (max)
Operating temperature range:
0 - 40°C
Storage temperature range:
-20 - 60°C
Relative humidity:
20 - 90% RH (non-condensing)
