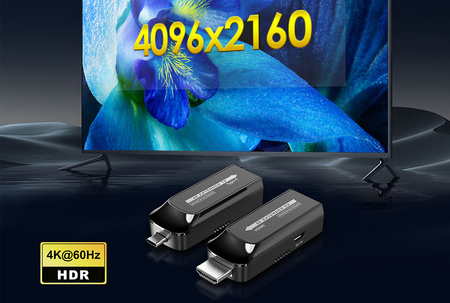

Spacetronik SPH-CL01 wired LAN transmitter from USB-C to HDMI
This LAN transmitter from USB-C to HDMI includes a transmitter and receiver, allowing you to transmit video and audio via cable and extend HDMI signals up to 20 meters wirelessly. The transmitter provides signal transmission without any delay. The design and high-quality components allow continuous operation 24/7. The device is ideal for meetings, conferences, home entertainment, multimedia education, etc. due to its compact size and interference-free video transmission.
Small transmitter, big capabilities
The device is the size of a flash drive, easy to connect with your laptop/computer using the USB-C port. The transmitter works as soon as you plug it in and you don't need to install any drivers or software. and it supports HDR and 3D features.
How to connect the USB-C to HDMI transmitter with a LAN cable?
Simply connect the USB-C transmitter to a source, such as a tablet or laptop, connect the receiver to a display, such as a TV or monitor. The transmitter and the transmitter need to be connected with each other using a Cat6/6A/7 LAN cable, and the receiver needs to be additionally powered using the included USB cable.

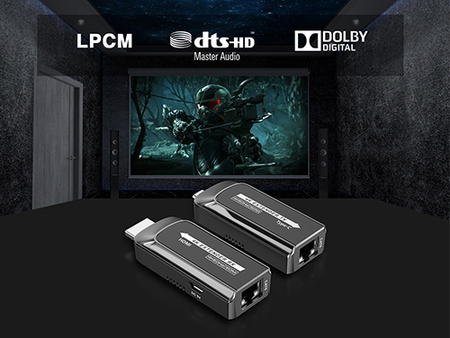

Support for multiple audio formats
The device is designed to transmit high-quality audio signal, supporting popular audio formats: LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH.
Compact size of the devices
The devices are lightweight and compact. This allows for easy portability and use even in harsher environments. Thanks to plug&play operation without the need to install additional software, it guarantees quick readiness for operation.

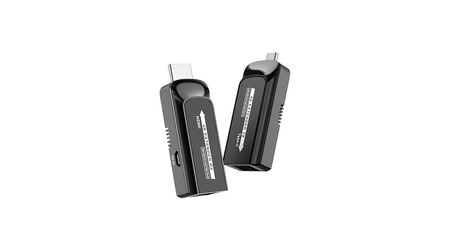

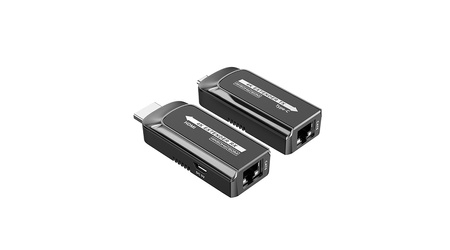

Construction of the USB-C to HDMI transmitter and receiver via LAN
The elements on the housing are intuitive. The transmitter settles on a USB-C input and LAN output. The receiver, on the other hand, is equipped with an HDMI output and LAN input. In addition, the receiver has a DC 5V charging socket.
Product features:
1. Highest supported resolution of 4K 60Hz2. Strong anti-interference capability through 5 GHz operation
3. Supports Point-to-Point wireless configuration
4. Supports HDMI2.0, compatible with HDCP1.4/2.2
5. 50-meter wireless transmission range
6. Plug and play, no software required (Plug & Play)
Specifications:
Power supply: Transmitter powered by LAN cable, Receiver powered by DC 5V 500mA
Power consumption: Transmitter <3W, Receiver <3W
HDMI version: HDMI 2.0
HDCP version: HDCP 1.4/HDCP 2.2
Max. data rate: 18Gbps
Supported resolutions: 1280x720, 1280x960, 1366x768, 1440x900, 1680x1050, 1920x1080, 1920x1200, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60/ 120Hz, 2560x1440@50/60/120/144Hz, 3840x2160@24/25/30/50/60/100/120Hz, 4096x2160@24/25/30/50/60/60Hz
Wi-Fi frequency bands: 5.18-5.24GHz
Transmission distance: 4K@60Hz?60m; 2560x1440@120/144Hz ?30m; 4K@100/120Hz?25m
Audio formats: PCM, DTS, Dolby
HDR10: Supported
HDMI 3D: Supported
Connection type: 1 to 1
EDID: Supported, automatic down scaling
Operating temperature: -20~55°C
Storage temperature: -30~60°C
TX Dimensions: 71.5(W) * 26(L) * 15(H)mm
RX dimensions: 71.5(W) * 26(L) * 15(H)mm
Weight: TX 17g, RX 17.5g
Material: ABS
