Media converter LAN to fiber (Fiber-SC) Spacetronik SP-LFC01 up to 20 kilometers
The device allows you to convert the signal transmitted over an RJ45 LAN network cable into a fiber optic Fiber-SC. This allows you to increase the distance of sent data up to 20 kilometers. The signal transmitted over fiber optic cables is almost lossless and has no delay. The SP-LFC01 converter operates in a 1:1 connection with no branching or cascading capability.
Technical specifications:
- LAN to Fiber Converter
- maximum signal transmission length on Fiber-SC cable up to 20 kilometers
- complies with 1000Base-T IEEE802.3ab, 100Base_ _TX IEEE802.3u, 10Base_ Te IEEEI802.3 standards
- auto-detection of 100Mbps or 1000Mbps transmission
- bi-directional (BiDi) 1.25G single-mode fiber
- transmitted wavelength: 1310nm
- received wavelength: 1550nm
- sC type fiber optic port
- operating temperature: -10...55ºC
- humidity: 5%-90% (non-condensing)
- power supply: 230V DC5C 1.0A
- dimensions: 59x56x19 mm
- weight: TX 55g, RX 55g

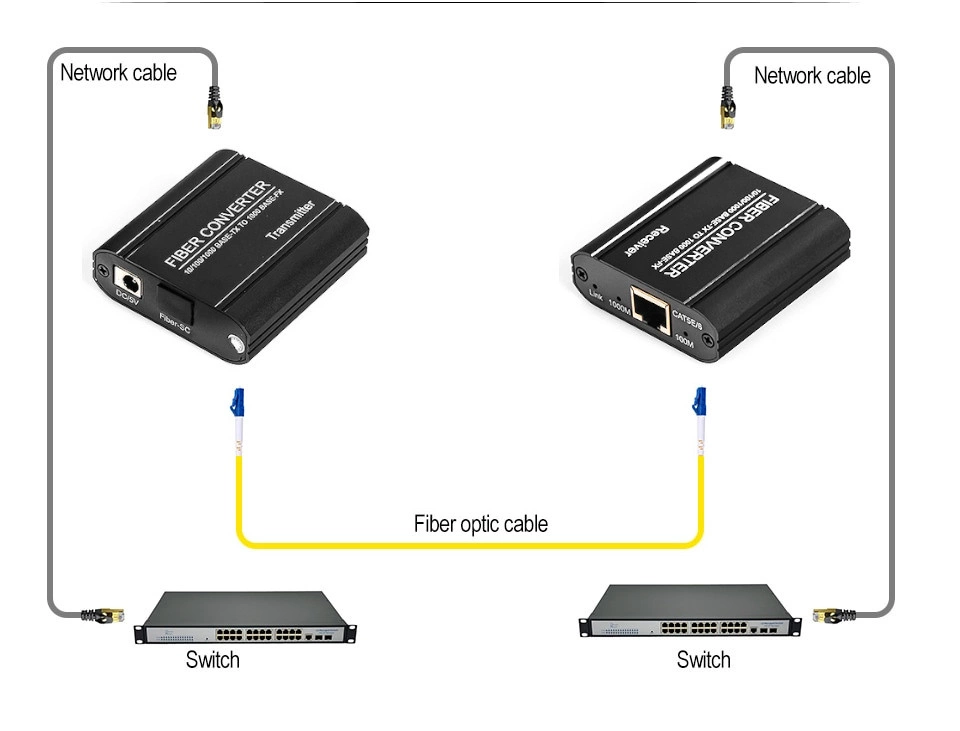

Example wiring diagram:
Kit contents:
1x TX transmitter
1x RX receiver
2x 230V 5V 1.0A power adapter
