HDMIIP3USB
Key features:
- HDMI signal extension up to 120 meters via a single network cable
- Maximum supported resolution up to 1080p @ 60Hz
- Indicators: 3x LED indicating connection, power, and USB communication status
- Support for 802.3 Ethernet 10/100 / 1000Mbps standard
- Compatible with STP and UTP CAT5 / 5e / 6 network cables
- Aluminium construction - stable and durable
Advantages:
- Transmission using one Cat. 5e/6 cable
- UDP/IP transmission
- 1080p image mode
- Maximum cable length 100 m
- USB extender
The bitrate of the compressed signal at the transmitter output is approximately 20 Mbit/s.
A dedicated receiver is required to properly decode the signal - viewing the image on a PC computer equipped with a network card is impossible.
The device is perfect for connecting a recorder, computer, or console to a receiver located away from the devices.
Only one twisted-pair computer cable needs to be led to the TV, which facilitates device installation and improves the appearance of the installation of a TV mounted on the wall using an LCD bracket.

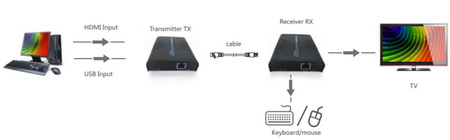

Example of an installation solution:
Technical parameters:
- Supported Video formats: DTV/HDTV: 480i/576i/480p/576p/720p/1080i/1080p
- Maximum Cat.5e twisted-pair length: 100 m
- Operating temperature: -10...60 C
- Humidity: 20%-90% (non-condensing)
- USB: 2.0
- Dimensions: 138x90x26 mm

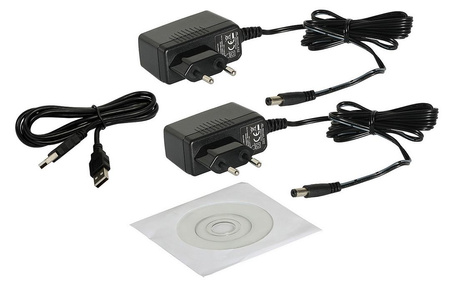

- Power supply: AC 230V / DC 5V (included)
Safety instructions >>HERE<<
Declaration of conformity >>HERE<<
product features
List price
100,70 €/1pcs.
Brand
Entity responsible for this product in the EU
Spacetronik Sp. z o.o.More
ProducerSpacetronik Sp. z o.o.Address:
ul. Wiśniowa 36Postal code: 64-000City: KościanCountry: PolandPhone number: +48661082052E-mail: info@spacetronik.pl
Responsible entitySPACETRONIK Sp. z o.o.Address:
ul. Wiśniowa 36Postal code: 64-000City: KościanCountry: PolandPhone number: + 48 661 082 052E-mail: info@spacetronik.plDescription: SPACETRONIK
Symbol
HDMIIP3USB
Producer code
6955361270101
Warranty
Color
Black
Transmission distance
do 100 metrów
Resolution
up to FullHD
Connector 1
HDMI gniazdo
USB-A socket
Connector 2
HDMI gniazdo
USB-A gniazdo
Connection type
LAN
Power supply
DC 5V
Safety information
Safety basicsMore
1.Carefully read the instruction manual or manufacturer's recommendations before use.
2.Use the product according to its intended use.Improper use can lead to damage or health risks.
3.For electrical appliances: don't use them in a humid environment, don't leave them unattended, and always unplug them after use.
4.Children's products should only be used under adult supervision.
5.Do not use a product that is damaged.This could pose a security risk.
6.If you have doubts about the technical condition of the product, contact the seller.
Mode of operation
Receiver
Transmitter
Number of outputs
3
Number of inputs
2
