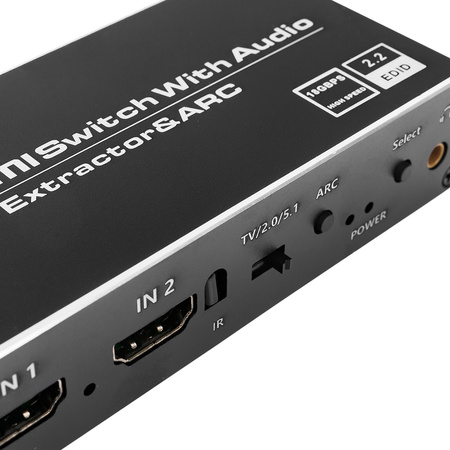

Extractor 2x HDMI-HDMI + Audio ARC + EDID 4K Spacetronik SPH-SAE07

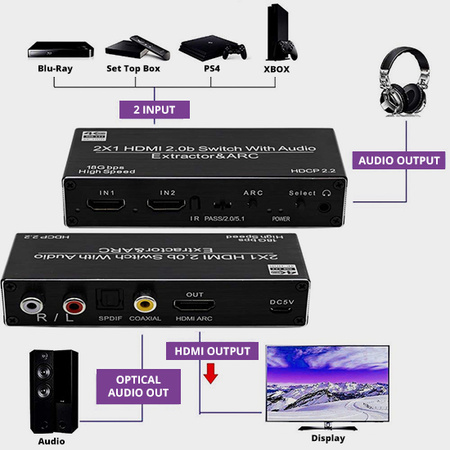

Extractor 2x HDMI to HDMI + Audio (R/L+SPDIF) allows you to connect two devices sending audio and video signals (tuner, console, dvd, blu-ray) to your TV via HDMI cable. In addition, you can extract the audio signal from the device and send it to a home theater receiver or other such device. Thanks to this solution, the sound will be heard as standard from the TV speakers and additionally from the second source when the receiver is turned on. An interesting solution when we want to control and decide for ourselves when the sound is to be heard from a particular device. The device has the ability to switch signal input and sound output 2.0; 5.1 or TV
The most important features of HDMI + Audio splitter
- Supports 2 HDMI sources: theHDMI 4K switch allows us to connect two HDMI 2.0 sources to one display device. We can output audio from each input device via Toslink+L/R+Coaxial audio output channel. Importantly, audio quality is not degraded. (HDMI output supports CEC)
- High picture quality: the device supports HDCP 2.2, HDMI 2.0b, 4K@60HZ, RGB4:4:4, Full HD, UHD, HDTV, Deep Color up to 36 bits, it is also backward compatible with 4K@30HZ and 1080P. The maximum bandwidth is 18.2 Gbps.
- Audio extractor function: With Toslink SPDIF+L/R+3.5mm+Coaxial audio outputs, the device allows you to extract audio from an HDMI source (e.g. PS4, set-top box, Xbox or any other HDMI device) and connect it to speakers, amplifier, etc. Note: If you choose optical or coaxial audio output, you can enjoy 5.1CH, 2CH or standard audio. If you choose 3.5mm or L/R audio output, you can enjoy 2CH audio or standard audio.

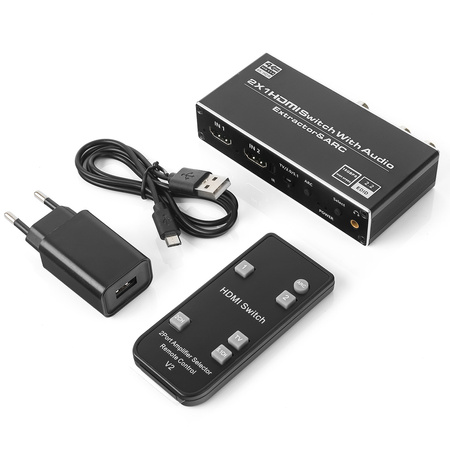

- Remote Control Operation A remote control has been provided with the device, which can be used to select HDMI source, ARC mode and audio mode between 2CH and 5.1CH.
Application of audio converter
These types of converters are useful in situations where we want to connect 2 video sources to one receiver, or when audio equipment (such as amplifiers, soundbars, TVs, Blu-ray players, game consoles, etc.) have different types of digital connectors, and the user wants to connect devices that do not have compatible connectors. The converter then acts as an "adapter" to ensure compatibility between devices.
Specifications of the SPH-SAE07 HDMI switcher

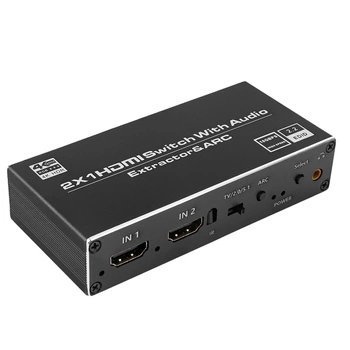

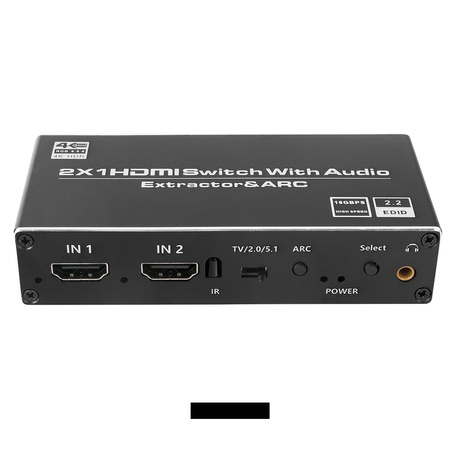

-input ports: 2x HDMI

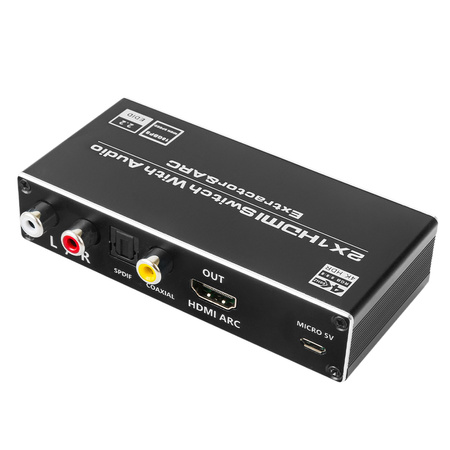

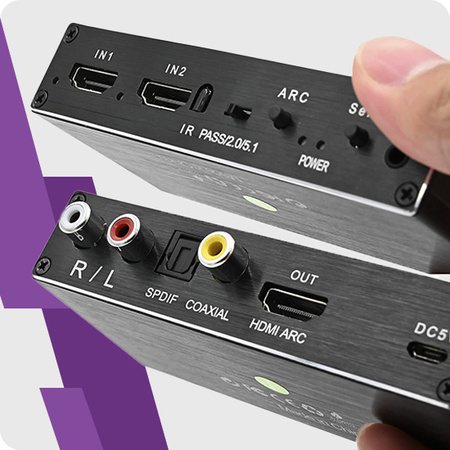

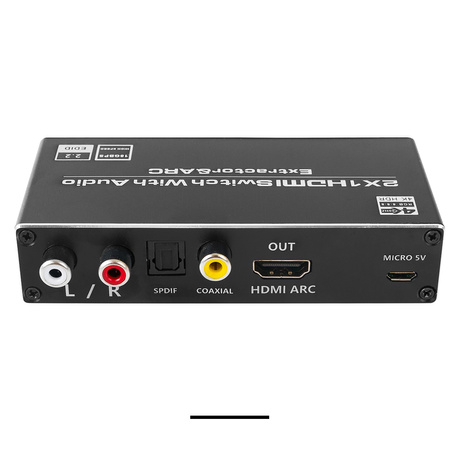

- Output ports: 1x HDMI, 1x Coaxial (RCA jack) and 1x Toslink port, 1x Jack 3.5mm, 1x L/R
- Supports HDMI 2.0 and HDCP2.2
- Supports 4K@60Hz, 1080p 3D, 1080p, 720p, 480p resolutions
- Supports audio: DTS Digital, Dolby Digital (DTS-HD and DOLBY) with Audio Separation and Audio Return Function (ARC)
- Supports HDMI2.0 (4; 4; 4 RGB)
- LED indicators on the device
- Automatic HDMI source detection
- 3Gbps/300MHz signal transmission
- 5V 1A power supply
- Dimension: approximately 113x 54 x 24 mm
- Weight: approximately 60g
