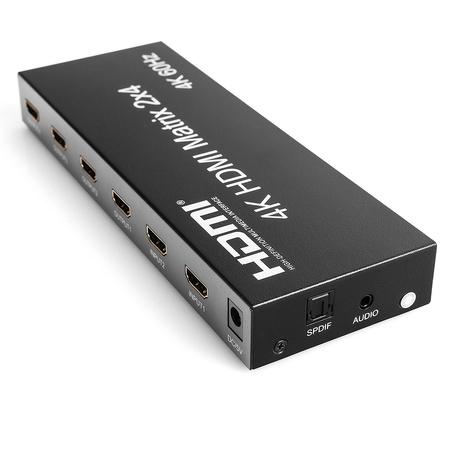

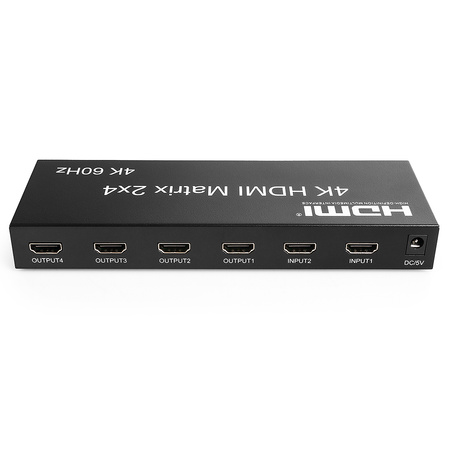

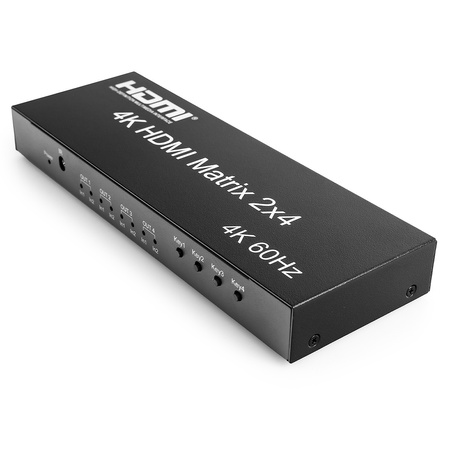

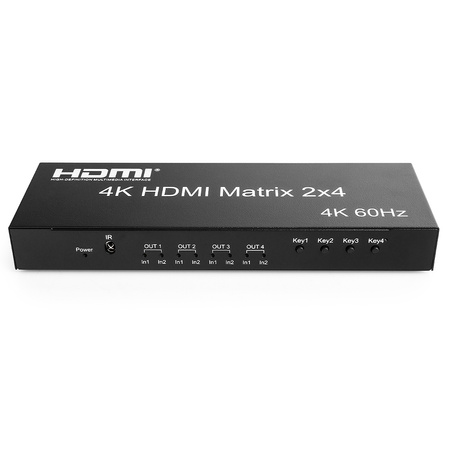

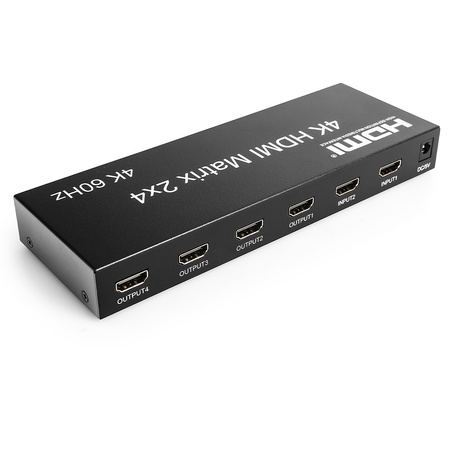

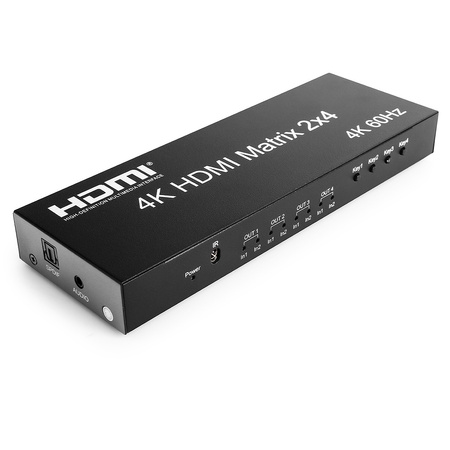

Spacetronik SPH-M24 V2 4K 60Hz HDMI 2/4 Matrix
The HDMI Matrix 2x4 can connect 2 HD signal sources to 4 HD displays, in addition, the device has a toslink or stereo headphone output. Matrix makes it easy to switch or split two HDMI devices into four HDMI-compatible monitors or projectors. The output ports can realize independent audio output via a stereo headset. The device is ideal for data center control, information distribution, conference room presentations, school and training environments.
Key features of the Spacetronik SPH-M24
- Supports 3D video format
- Supports 4K (input) 4K (output) resolution - Can also be scaled down
- Support for 4 HDMI audio outputs
- 2 HDMI inputs switch and split into 4 HDMI displays.
- Support for DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD channel
Spacetronik HDMI Matrix SPH-M24 specifications:
- HDMI version: HDMI 2.0
- HDMI resolution: up to 3840x2160 4K@60 Hz
- Audio format support: LPCM/DTS/Dolby-AC3
- Maximum bandwidth: 600 MHz
- Maximum bit rate: 3x 6 Gbps
- Input cable distance: 4K@30Hz ?15M AWG26 HDMI 4K@60Hz ?5M HDMI 2.0
- Output cable distance: 4K@30Hz ?15M AWG26 HDMI 4K@60Hz ?5M HDMI 2.0
- HDMI input: 2
- HDMI output: 4
- Maximum operating current: 600mA
- Power supply format: Input: AC (50 Hz, 60 Hz) 100V-240V; Output: DC5V / 1A
- Operating temperature range: (-15 to + 45 ?)
- Operating humidity range: From 5 to 90% relative humidity (non-condensing)
- Dimensions (L X W X H): 199x70x27 (mm)
- Weight: 300g
Included
- Matrix 2/4
- Power supply
- Remote control
