Spacetronik SPH-M42EA 4K HDMI 4/2 Matrix
The HDMI matrix allows you to connect up to 4 HDMI devices and split them losslessly to two HDMI outputs. Additionally, each screen can display different images, depending on the selection. Thanks to signal amplification, the device transmits the image losslessly even over longer distances. The maximum transmitted image resolution is 4Kx2K @ 60Hz. The device also supports the HDMI ARC channel and audio extraction.
Main features of the HDMI Matrix:
- Supports 4 HDMI inputs and 2 HDMI outputs.
- HDCP 2.2 compliant.
- Supports maximum resolutions up to 4Kx2K @ 60HZ YUV4: 4: 4.
- Supports 3D.18G, HDR.
- Supports HDMI ARC and audio extraction
- Supports extracting the selected HDMI input to SPDIF 5.1 and AUX audio output.
- Increases distance and improves transmission signal.

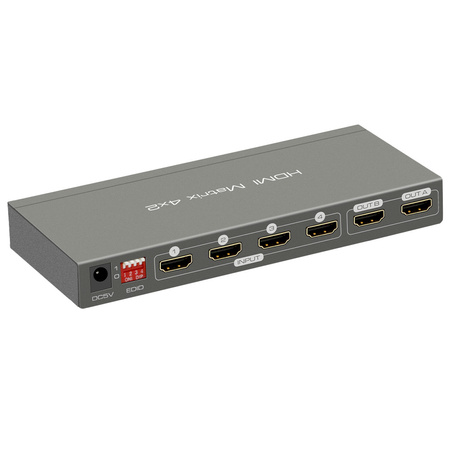

- Compatible with DVI using an HDMI TO DVI adapter.
- Plug-and-play, easy to install.
- Metal housing and overall shielding without signal interference.
- IR support and manual control.
- Supports memory function after power off.
- DC5V power supply.

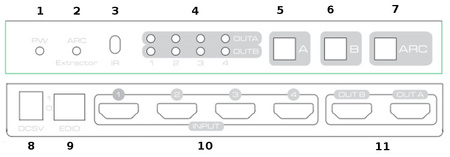

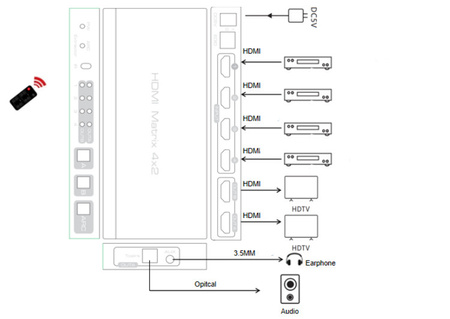

Description of buttons and indicators
1. Power indicator
2. Extractor / ARC: Audio extractor or ARC indicator. If the LED is on, it works as ARC; if the LED is off, it works in Extractor mode.
3. IR: IR receiver
4. Input A 1-4 / B 1-4: HDMI 1-4 input indicator HDMI OUTA/OUTB
5: HDMI output A, press to select input sources 1/2/3/4
6: HDMI output B, press to select input sources 1/2/3/4
7. ARC switch button: if the ARC LED is on, it works in ARC mode, otherwise it works in audio mode.
8. DC5V: DC5V power port
9. EDID DIP switch
10. HDMI input ports 1-4
11. HDMI output ports A / B

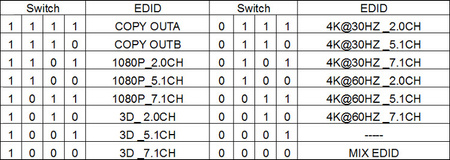

Spacetronik SPH-M42EA Matrix EDiD function:
Signal distribution by analyzing the EDID information of connected TVs / monitors selects the resolution / color depth supported by all devices. It then reports this data to the playback device. If, for example, a 4K monitor, a 3D monitor, and a traditional Full HD monitor are connected, the device informs the playback equipment in the form of EDID information about the existence of a Full HD monitor. The playback device should now automatically play, for example, a movie in ?normalnyM Full-HD mode (and not 3D or 4K, because not all devices support them).
Specification of the Spacetronik SPH-M42EA Matrix:
- HDMI resolution - 4k2k @ 60HZ YUV4: 4: 4 3D / 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
- Supports video color format - 24bit / deep color 30bit, 36bit- Supports audio format
- DTS-HD / Dolby-trueHD / LPCM7.1 / DTS / Dolby-AC3 / DSD / LPCM
- Maximum bandwidth - 600 MHz
- Maximum transmission rate - 18 Gb / s
- Input / output TMDS signal - 0.5 ~ 1.5 V p-p (TTL)
- Input / output DDC signal - 5 V p-p (TTL)
- Input cable distance - - 10 m Standard HDMI cable AWG26
- Output cable distance - 10 m Standard HDMI cable AWG26
- Maximum operating current - 300mA
- Power supply format .. Input: - AC (50 Hz, 60 Hz): 100-240 V; Output: DC5 V.
- Operating temperature range - (from -15 to + 55 ?)
- Operating humidity range - From 5 to 90% RH (non-condensing)
- Dimensions (L x W x H) - 172X75X21 (mm)
- Weight - 296.5 g
Package contents
- HDMI 4/2 Matrix
- IR remote control
- EN user manual
- 5V power supply
