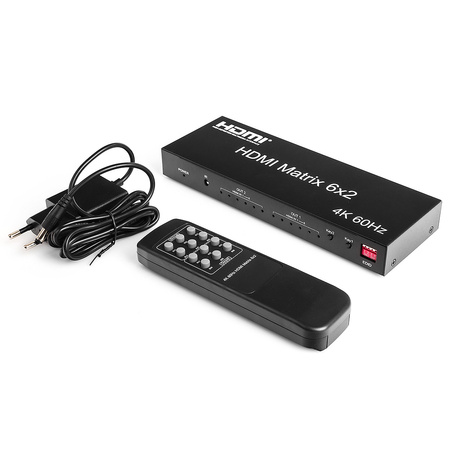

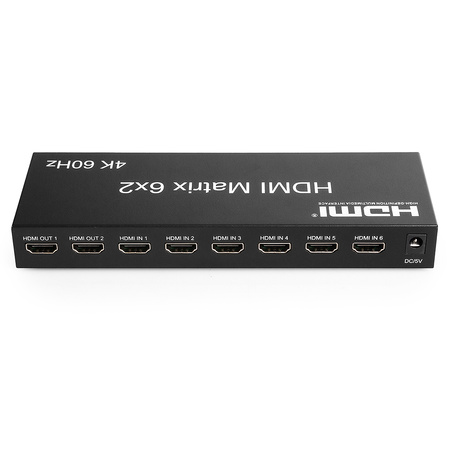

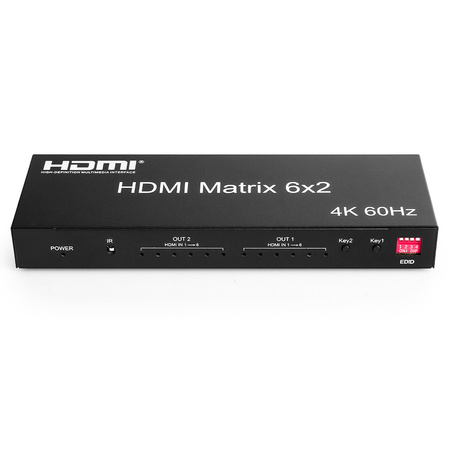

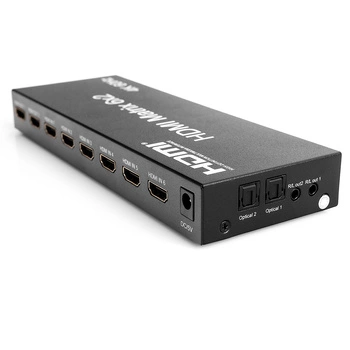

Spacetronik SPH-M620 4K 60Hz HDMI 6/2 Matrix
The HDMI Matrix 6/2 can connect 6 HD signal sources to 2 HD displays, in addition, the device has a toslink or stereo headphone output. The Matrix makes it easy to switch or split 6 HDMI devices into 2 HDMI-compatible monitors or projectors. The output ports can realize independent audio output via a stereo headset. The device is ideal for data center control, information distribution, conference room presentations, school and training environments.
Key features of the Spacetronik SPH-M620
- Supports 3D video format
- Supports 4K (input) 4K (output) resolution - Can also be scaled down
- Support for 2 HDMI audio outputs
- 6 HDMI inputs switch and split into 2 HDMI displays.
Spacetronik HDMI Matrix SPH-M620 specifications:
- HDMI version: HDMI 2.0
- HDMI resolution: up to 3840x2160 4K@60 Hz
- Audio format support: LPCM/DTS/Dolby-AC3
- Maximum bandwidth: 600 MHz
- Maximum bit rate: 3x 6 Gbps
- Input cable distance: 4K@30Hz ?15M AWG26 HDMI 4K@60Hz ?5M HDMI 2.0
- Output cable distance: 4K@30Hz ?15M AWG26 HDMI 4K@60Hz ?5M HDMI 2.0
- HDMI input: 6
- HDMI output: 2
- Maximum operating current: 1A
- Power supply format: Input: AC (50 Hz, 60 Hz) 100V-240V; Output: DC5V / 1A
- Operating temperature range: (-15 to + 45 ?)
- Operating humidity range: From 5 to 90% relative humidity (non-condensing)
- Dimensions (L X W X H): 200x70x25 (mm)
- Weight: 305g
Included
- Matrix 6/2
- Power supply
- Remote control
