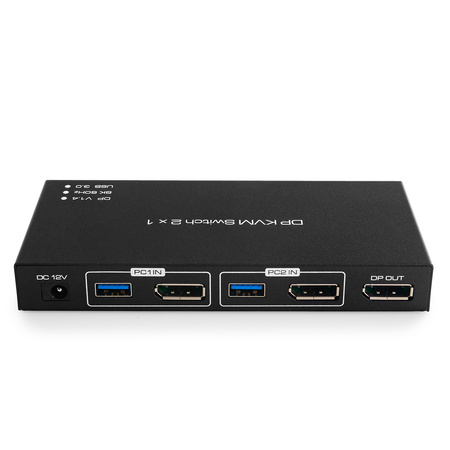

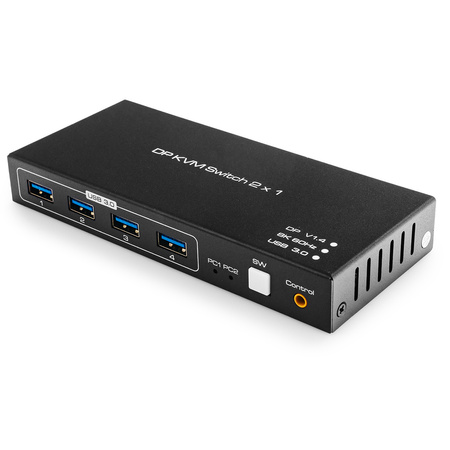

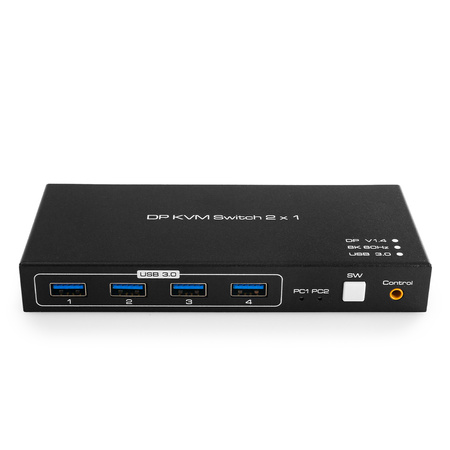

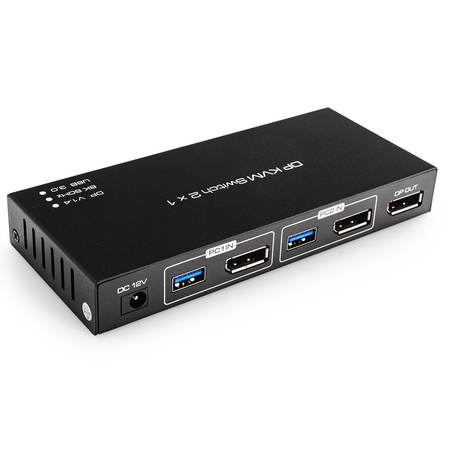

Spacetronik SPD-KVM23 USB + DisplayPort 2/1 8K@60Hz KVM Switch
Spacetronik SPD-KVM23 USB KVM Switch can control two computers with one set of mouse, keyboard and display image on one display (monitor, TV) with 8K@60Hz resolution. It is easy to use, improves work efficiency, saves utility costs and is widely used in various fields. Control and switching is very easy and is limited to the use of a switch.
Switch on the cable
Use an external button with a 1.5-meter cable, which is long enough to organize the cables and place the switching button nearby (recommendation); press the button on the KVM switch to switch the DisplayPort input device. The SPD-KVM23 switch cannot be controlled with keyboard shortcuts to avoid complications.
High quality 8K@60Hz
The switch supports resolutions up to 8K 60Hz and is backward compatible with 4K 120Hz, 1080p @120Hz, 720p, 480p; supports HDCP 2.3. Smooth and stable signal and data transmission ensures exquisite and realistic images. Automatically reads and writes monitor parameters (EDID) when connected directly via DisplayPort.

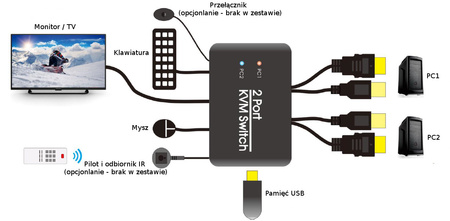

Example connection diagram
Technical data
- Applies to system: Windows, Apple, Linux, Netware, Unix, Android
- Input port: DisplayPort, USB
- Output port: DisplayPort
- Control port: USB-A
- Read and write port: USB-A
- USB port version: USB 3.0
- Maximum support resolution: 8K @ 60 Hz
- Operating temperature range: - 10 ~ + 55 ?
- Storage temperature range: -20 ~ + 60 ?
- Operating humidity range: 10 ~ 90% RH (Non-condensing)
-Humidity range during storage: 5 ~ 95% RH (Non-condensing)
