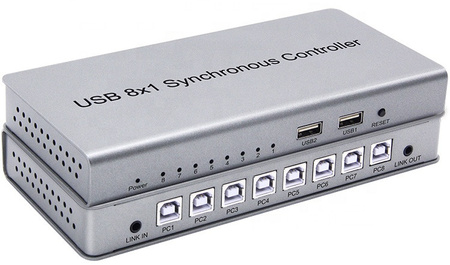

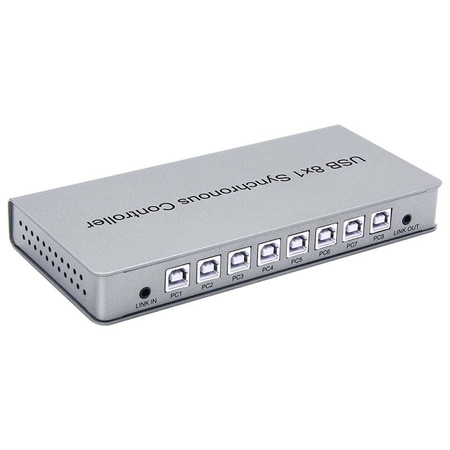

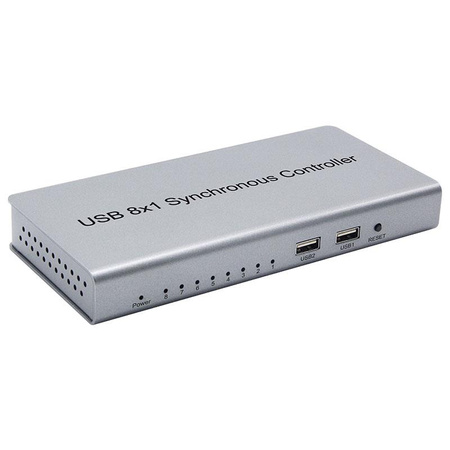

Switch, KVM Switch USB 8/1 Spacetronik SPU-81SW PRO
Switch - KVM Switch is a device that allows you to connect input peripherals (mouse, keyboard, flash drive) to several PCs. Our model, Spacetronik SPU-81SW PRO, allows you to install peripherals up to 8 workstations simultaneously. The connection itself is plug-and-play and does not require any software or drivers. The user only needs to insert the cable/adapter into the USB Type A port on the front of the device, and plug the PCs into the USB Type B ports on the back.
Features:
- Supports wireless keyboard and mouse
- Supports most gaming controllers, multimedia keyboards and mice
- Supports unlimited cascading function
- Supports synchronization function
- Automatically supports mouse sliding screen with virtual switch
- Supports iphone (connect a connector converter, such as Lightning to USB)
- Supports systems such as Windows, Linux, MAC, OS, Android, etc.
- Supports standard USB 2.0 A/B cable
- Plug & Play, no need to install any software
- Use computer port power, no need for additional power adapter
- Supports cascade (up to 5 devices)

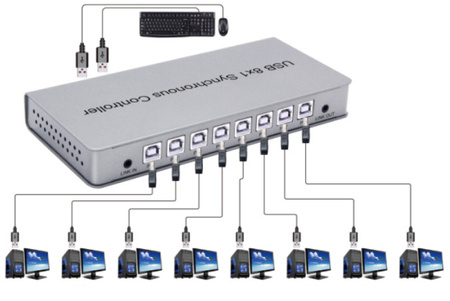

Connection diagram:

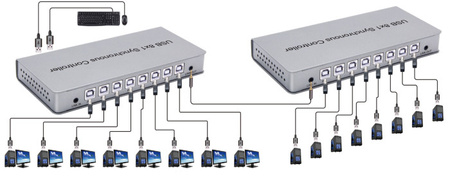

Cascade connection diagram:
Specifications:
- USB version - Compatible with USB 2.0
- USB speed - Low speed (1.5 Mb / s) Full speed (12 Mb / s)
- Cable length - Standard USB 2.0 A/B cable ? 2m
- Maximum operating current - 330mA (wired KVM mode?
- Operating temperature - (-10 to + 55 ?)
- Size - 162x80x23 (mm)
- Weight - 420g
Included:
- 1x USB KVM Switch 8/1
- 8x USB 2.0 A/B cable
- 1x Manual
