STTITANIUM8700

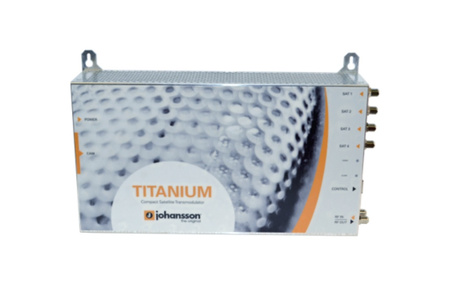

Johansson Titanium 8700 TV headend with 4x SAT tuner / 4x MUX output (DVB-T/C) / 2x CI slot
Compact headend (Compact and Modular Headends) Titanum 8700 - featuring 4 DVB-S/S2 tuners for 4 MUX outputs (DVB-T/C) / 2CI slots
The transmodulator is an ideal solution for distributing terrestrial DVB-T signal or DVB-C cable TV.
The headend is used for transmodulating DVB-S/S2 (8PSK/QPSK) signal into DVB-T/C (QAM) signal. It converts the signal from any 4 DVB-S/S2 satellite transponders into 4 DVB-T or DVB-C signal multiplexes
Selected satellite channels from one SAT frequency (FTA-unencrypted or encrypted) are converted into DVB-T or DVB-C MUX.
One multiplex, depending on the content, can accommodate approx. 4 HD channels or approx. 8 SD channels. 8700 can create approx. 16-32 channels.
Main features:
- Compact housing with built-in power supply
- 4 tuners on DVB-S/S2 input
- 2 CI slots for CAM cards with modules
- 4 MUX outputs (DVB-T/C)
- RF input and output
Headend applications:
- hotels
- guesthouses
- hospitals
- offices
- fitness clubs
This is what our customers value most about Titanium:
- Ability to select a reference tuner for each CAM
- User-friendly web interface
- Logical Channel Numbering (LCN)
- Full matrix flexibility between input, DVB-S(2) tuners, CAM modules, DVB-T/C multiplexes
- EPG support
- PID filtering including audio channels
- Ability to block all private PID data to save bandwidth
- Ability to prioritize important TV channels
- Easy firmware update
- European quality, that's Johansson...
User manual for download >>HERE<<
https://s.spacetronik.pl/zdjecia_DMTRADE/katalogi/johansson/instr8700.pdf
Polish user manual for download >>HERE<<
https://dmtrade.pl/katalogi/johansson/instr8700PL.pdf
Product data sheet for download >>HERE<<
https://s.spacetronik.pl/zdjecia_DMTRADE/katalogi/johansson/karta8700.pdf
product features
List price
1 176,50 €/1pcs.
Brand
Entity responsible for this product in the EU
DMTrade Mikołaj TomaszewskiMore
ProducerDMTrade Mikołaj TomaszewskiAddress:
ul. Wiśniowa 36Postal code: 64-000City: KościanCountry: PolskaPhone number: +48 61 111 02 52E-mail: info@dmtrade.pl
Responsible entityDMTrade Mikołaj TomaszewskiAddress:
ul. Wiśniowa 36Postal code: 64-000City: KościanCountry: PolskaPhone number: +48 61 111 02 523E-mail: info@dmtrade.plDescription: DMTrade
Symbol
STTITANIUM8700
Producer code
2087000000016
Warranty
CI slot
2x CI
Input quantity
4
Output quantity
4
Output type
DVB-C, DVB-T
Input type
DVB-S
Multiplexing
Not
