STTITANIUM8703

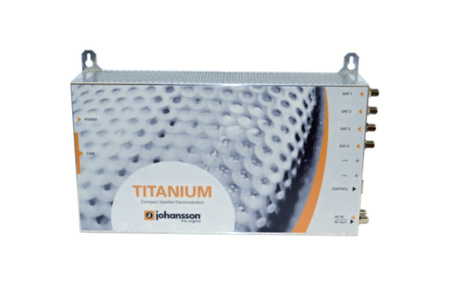

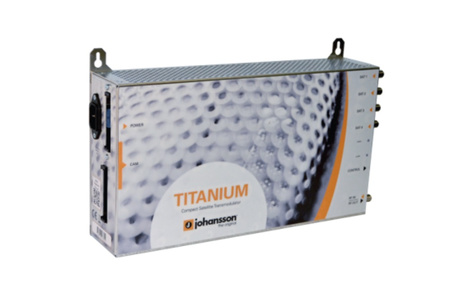

Compact Modular Headends Johansson Titanium 8703 with 8x SAT tuner / 8x MUX output (DVB-T/C) / 4x CI slot
Compact headend station (Compact and Modular Headends) Titanium 8731 - featuring 8 DVB-S/S2 tuners for 8 MUX outputs (DVB-T/C) / 4CI slots
The transmodulator is an ideal solution for distributing terrestrial DVB-T or cable DVB-C signals.
The headend station is used for transmodulating DVB-S/S2 (8PSK/QPSK) signal into DVB-T/C (QAM) signal. It converts the signal from 8 any DVB-S/S2 satellite transponders into 8 multiplexes of DVB-T or DVB-C signal
Selected satellite channels from one SAT frequency (FTA-unencrypted or encrypted) are converted into DVB-T or DVB-C MUX.
One multiplex, depending on the configuration, can contain approx. 4 HD channels or approx. 8 SD channels. 8703 can create approx. 32-64 channels.
Main features:
- Compact housing with built-in power supply
- 8 tuners on DVB-S/S2 input
- 4 CI slots for CAM cards with modules
- 8 MUX outputs (DVB-T/C)
- RF input and output
Applications of the headend station:
- hotels
- guesthouses
- hospitals
- offices
- fitness clubs
This is what our customers value most in Titanium:
- Ability to select a reference tuner for each CAM
- User-friendly web interface
- Local Channel Numbering (LCN)
- Full matrix flexibility between input, DVB-S(2) tuners, CAM modules, DVB-T/C multiplexes
- EPG support
- PID filtering including audio channels
- Ability to block all private PID data to save bandwidth
- Ability to prioritize important TV channels
- Easy firmware update
- European quality, this is Johansson...
User manual for download >>HERE<<
https://s.spacetronik.pl/zdjecia_DMTRADE/katalogi/johansson/instr8700.pdf
PL user manual for download >>HERE<<
https://dmtrade.pl/katalogi/johansson/instr8700PL.pdf
Catalog card for download >>HERE<<
https://s.spacetronik.pl/zdjecia_DMTRADE/katalogi/johansson/karta8700.pdf
product features
List price
2 588,50 €/1pcs.
Brand
Entity responsible for this product in the EU
DMTrade Mikołaj TomaszewskiMore
ProducerDMTrade Mikołaj TomaszewskiAddress:
ul. Wiśniowa 36Postal code: 64-000City: KościanCountry: PolskaPhone number: +48 61 111 02 52E-mail: info@dmtrade.pl
Responsible entityDMTrade Mikołaj TomaszewskiAddress:
ul. Wiśniowa 36Postal code: 64-000City: KościanCountry: PolskaPhone number: +48 61 111 02 523E-mail: info@dmtrade.plDescription: DMTrade
Symbol
STTITANIUM8703
Producer code
2087030000017
Warranty
CI slot
4x CI
Input quantity
8
Output quantity
8
Output type
DVB-C, DVB-T
Input type
DVB-S
Multiplexing
Not
