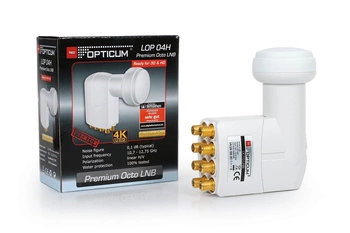

LNB converter OCTO OPTICUM LOP-04H for 8 sat receivers
Octo Opticum LOP-04H converter is a proven product on the market
The converter is used to receive digital satellite signal
- It has 8 outputs protected by a shield
- Connection of up to 8 SAT receivers
- Connection of up to 4 SAT receivers with two tuners (PVR)
- Low power consumption. High separation between polarizations
- High resistance to extreme weather conditions
Recommended for installations where high sensitivity of received signal is required.
Recommended antenna not less than 0.8 m.
Specifications
Technical parameters:
- Noise factor: 0.1 dB
- Input frequency range: 10.70 - 11.70 GHz 11.70 - 12.75 GHz
- Output frequency range: 0.95 - 1.95 GHz 1.10 - 2.15 GHz
- Attenuation: 0.1 dB (type)
- Output impedance: 75 ?
- F x8 connectors
- Holder diameter: 40 mm
- "F" socket cover: yes
