LNBU-INV-32IDLU

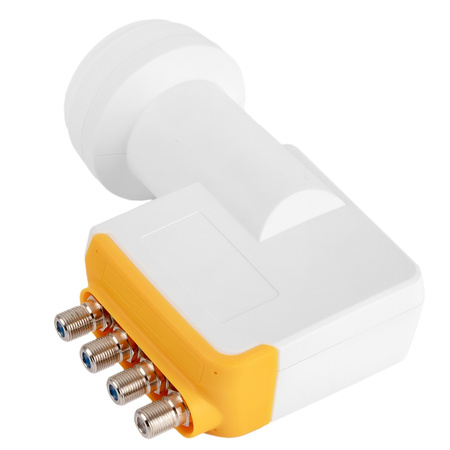

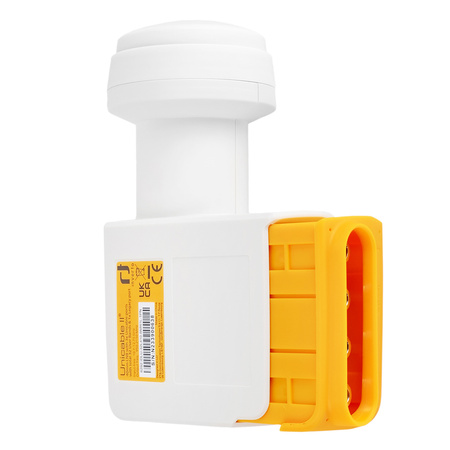

Inverto 3x Unicable II LNB PN-1L1BMR410-L-32IDLU 32x Unicable + 1x Legacy converter
Inverto Unicable II PN-1L1BMR410-L-32IDLU is a converter that has three Unicable II outputs, a total of 32 User Band frequencies programmed on all outputs, additional one traditional Legacy output.Inverto Unicable II LNB is powered from the connected satellite receiver.
Key features:
- Low phase noise
- Compatible with DVB-S2 HDTV 4K
- Ideal for Canal+, Cyfrowy Polsat decoders
- Compatible with: 4K ULTRABOX+ USW4001NCP and NCP-3670SF, EVOBOX...
- Compatible with all decoders on Linux system Enigma2
- Very high cross polarization isolation
- Programmable static mode with frequency allocation (programmer sold separately)
Technical specifications:
- Input frequency range:
- Satellite: 10.7 - 12.75 GHz
- Noise factor (noise figure) 0.7 dB max.
- LO frequency 10.4 GHz
- LO initial accuracy +/- 1.0 MHz
- LO temperature drift +/- 2.5 MHz
- Phase noise (at 10 kHz) - 80 dBc / Hz
- Conversion gain: ?56 dB
- Gain +/- 0.75 dB/UB
- Attenuation 40 dB min.
- Cross polarization isolation 22 dB min.
- Compression point 1dB (at output) 0 dBm min.
- Output VSWR 2.5 : 1 max.
- Output impedance 75 ohms
- Configurable user (channel) bandwidth, 10-64MHz (default 36MHz)
- Channel isolation 25dB min
- Unicable DiSEqC1.x/DiSEqC2.x control signals, EN50494/EN50607
- Constant current consumption (DC power supply) 400mA at 13.5V
- Operating temperature -20°C~ +60°C
- Manufacturer's article number: PN-1L1BMR410-L-32IDLU
User Band frequencies (channels) up to 32 User Band channels:
- CH1 1210MHz (EN50494+EN50607)
- CH2 1420MHz (EN50494+EN50607)
- CH3 1680MHz (EN50494+EN50607)
- CH4 2040MHz (EN50494+EN50607)
- CH5 984MHz (EN50494+EN50607)
- CH6 1020MHz (EN50494+EN50607)
- CH7 1056MHz (EN50494+EN50607)
- CH8 1092MHz (EN50494+EN50607)
- CH9 1128MHz (EN50607)
- CH10 1164MHz (EN50607)
- CH11 1256MHz (EN50607)
- CH12 1292MHz (EN50607)
- CH13 1328MHz (EN50607)
- CH14 1364MHz (EN50607)
- CH15 1458MHz (EN50607)
- CH16 1494MHz (EN50607)
- CH17 1530MHz (EN50607)
- CH18 1566MHz (EN50607)
- CH19 1602MHz (EN50607)
- CH20 1638MHz (EN50607)
- CH21 1716MHz (EN50607)
- CH22 1752MHz (EN50607)
- CH23 1788MHz (EN50607)
- CH24 1824MHz (EN50607)
- CH25 1860MHz (EN50607)
- CH26 1896MHz (EN50607)
- CH27 1932MHz (EN50607)
- CH28 1968MHz (EN50607)
- CH29 2004MHz (EN50607)
- CH30 2076MHz (EN50607)
- CH31 2112MHz (EN50607)
- CH32 2148MHz (EN50607)
Explanation:
- EN50494 = controllability with a compatible unicable receiver (Unicable I)
- EN50607 = controllable with a JESS-enabled receiver (Unicable II)
product features
List price
50,00 €/1pcs.
Brand
Entity responsible for this product in the EU
DMTrade Mikołaj TomaszewskiMore
ProducerDMTrade Mikołaj TomaszewskiAddress:
ul. Wiśniowa 36Postal code: 64-000City: KościanCountry: PolskaPhone number: +48 61 111 02 52E-mail: info@dmtrade.pl
Responsible entityDMTrade Mikołaj TomaszewskiAddress:
ul. Wiśniowa 36Postal code: 64-000City: KościanCountry: PolskaPhone number: +48 61 111 02 523E-mail: info@dmtrade.plDescription: DMTrade
Symbol
LNBU-INV-32IDLU
Producer code
Inverto 3x Unicable II LNB PN-1L1BMR410-L-32IDLU5453002616741
Warranty
Number of Legacy outputs
1
Number of Unicable II outputs
3
Terrestrial input
not
