MS0932E2

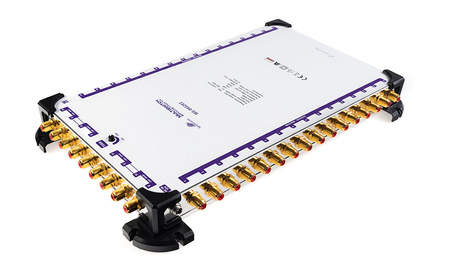

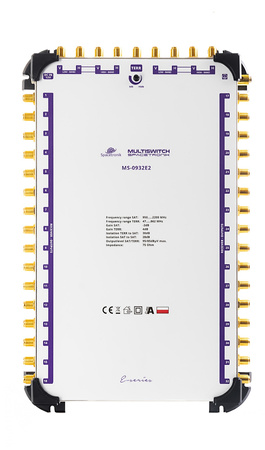

Multiswitch 9/32 Spacetronik E-Series MS-0932E2
The multiswitch is designed to expand indoor antenna installation of DVB-S2 satellite TV system and DVB-T/T2 terrestrial TV system.
The device enables distribution of satellite signals from two different satellites, e.g. Hotbird + Astra, and terrestrial signals and connection of up to 32 outlets, satellite receivers, DVB-T receivers etc...

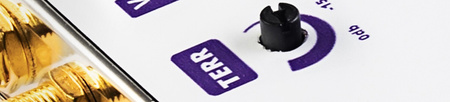

New version of Spacetronik E-Series V2 multiswitches characterized by the addition of the option to adjust the attenuation in the TERR DVB-T/T2 path: 0 / -15 dB

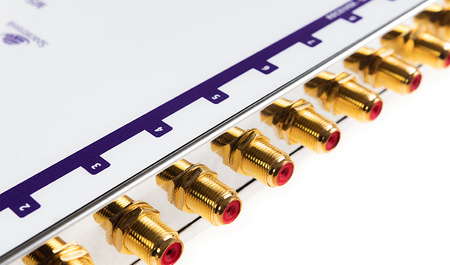

Gold-plated sockets significantly reduce signal loss at the antenna cable connection, and no oxidation phenomenon.
The multiswitch automatically recognizes the type of signal to be transmitted to the tuners.
The installation should take into account connection of the multiswitch to a satellite dish with a diameter of no less than 0.8 m and a Quattro or Quad converter, and a terrestrial TV antenna.
Separation of satellite and terrestrial signals coming out of the multiswitch is carried out by means of subscriber terminal outlets.

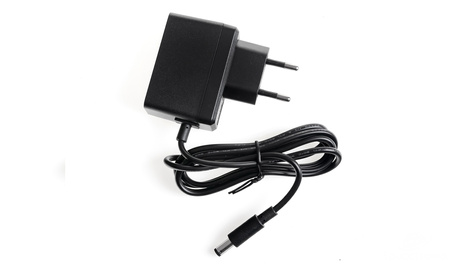

Power supply of the multiswitch is provided via an external power supply, which eliminates the phenomenon of increased operating temperature that is a common cause of damage to the device
When installing the device, one should take into account the existing installation conditions concerning power supply:
- location away from the influence of atmospheric conditions
- protection against access of unauthorized persons
- adequate ventilation
Connection:
- two inputs of signal from SAT Quattro or QUAD converter
- one input of terrestrial signal DVB-T/T2
- 32 outputs of summed signal SAT+DVB-T/T2
Technical specifications:
- SAT frequency range : 950-2200 MHz
- TER frequency range : 47-862 MHz
- SAT gain (950-2150 MHz) : 2 dB
- TER gain (47-862 MHz) : 4 dB
- SAT to TER separation : 30 dB
- TER to SAT separation : 28 dB
- H/V polarization separation : 25 dB
- Maximum SAT output level : 95 dBuV
- TER maximum output level : 85 dBuV
- Input/output impedance : 75 Ohms
- Polarity/Band switching : 13V/18V 13V/22kHz-18V/22kHz
- Mains power supply: 230V AC 50Hz
- Operating temperature : 0...+55 oC
- Dimensions : 360 x 216 x 52 mm
Instruction manual in POLISH - https://dmtrade.pl/katalogi/Spacetronik/e-series/instrukcjapl.pdf
product features
List price
109,10 €/1pcs.
Brand
Entity responsible for this product in the EU
Spacetronik Sp. z o.o.More
ProducerSpacetronik Sp. z o.o.Address:
ul. Wiśniowa 36Postal code: 64-000City: KościanCountry: PolandPhone number: +48661082052E-mail: info@spacetronik.pl
Responsible entitySPACETRONIK Sp. z o.o.Address:
ul. Wiśniowa 36Postal code: 64-000City: KościanCountry: PolandPhone number: + 48 661 082 052E-mail: info@spacetronik.plDescription: SPACETRONIK
Symbol
MS0932E2
Producer code
Spacetronik E-Series multiswitch 9/32 MS-0932E25903031020793
Warranty
Number of outputs
16
Warranty
2 years
Number of inputs
5x (1SAT + DVB-T)
Order of cascade
Multiswitch terminal
Cechy dodatkowe
Works with QUAD type converter, DVB-T/T2 signal attenuation adjustment
Power supply
Zasilacz zewnętrzny
