Automatic digitally controlled amplifier Profino Revolution 6700 v2 AUTO-SCAN signal inputs: 4xUHF/VHF+FM supporting up to 50 channels / real-time AGC gain / 12-24 V power supply
Johansson 6700 Profiler Revolution has been updated to SW1.9.0.
It is now even more flexible, and thanks to the new AUTO-SCAN function you will save a lot of time during installation.
JOHANSSON 6700 UPDATE ? SW 1.9.0:
- Automatic scanning function for optimized installation
- Built-in AGC and 5G LTE700 protection
- DAB subchannels can now be managed
- BI added to the FM input
- SD card removed
Why use Profiler Revolution 6700:
- Smart and automatic channel scanning
- Can process more than 50 channels (32 filters)
- Can process individual DAB channels (1.7 MHz)
- Can process S-band output channels
- Can simultaneously handle VHF and UHF signals from the same input antenna
- Can convert a wide selection of channels
- 5G LTE protection (694 MHz)
- The sharpest filters on the market (>50 dB on adjacent channels)
- Real-time AGC on all individual filters
- Full flexibility in assigning filters from any input. Each channel can be shifted to any other channel in the VHF or UHF band (Flex Matrix)
- To prevent unauthorized persons from changing settings, all Profiler products can be locked with a security code
- Manufactured in Europe, for worldwide applications
- 5 inputs: BI+FM / 4 x VHF-UHF, including DAB subchannels
- Remote power supply 12-24 V (Auto DC during channel scanning)
- Product dimensions (H x W x D): 165 mm x 217 mm x 59 mm

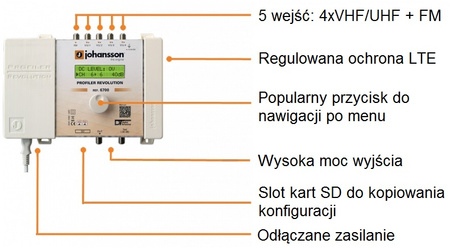

Device diagram:
Advantages of Johansson 6700:
- Ability to process and convert more than 50 channels
- Conversion of channels in the VHF-UHF band to another in the VHF-UHF band
- Real-time automatic gain control (AGC) on all multiplexes
- Full flexibility in assigning filters to inputs
- The most efficient amplifier on the market with no equivalent
Technical specification:
- 5 inputs: 4 VHF/UHF + 1 FM
- 1 output: VHF/UHF/FM + 1 test port
- Frequency range: FM 88 ? 108 MHz / VHF 174 ? 240 MHz / UHF 470 ? 862 MHz
- Gain: FM 35 dB / VHF 75 dB / UHF 75 dB
- LTE filter
- Attenuation: 20 dB
- Selectivity: 35 dB/1MHz
- High output power: 120 dB?V
- Power supply: 100 ? 240 V
- Dimensions: 165 x 217 x 59 mm

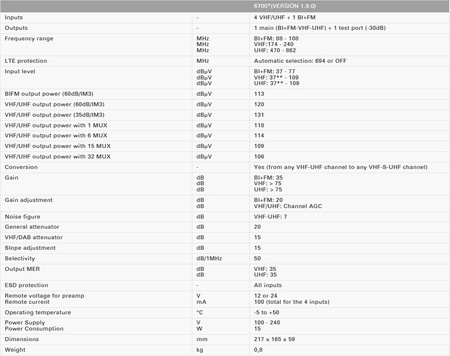

Technical parameters:
Video presenting the device:
PRODUCT SHEET AVAILABLE https://s.spacetronik.pl/zdjecia_DMTRADE/katalogi/johansson/6700karta.pdf
INSTRUCTIONS IN ENGLISH https://s.spacetronik.pl/zdjecia_DMTRADE/katalogi/johansson/9700/profiler-revolution-manual.pdf
Declaration of Conformity https://s.spacetronik.pl/zdjecia_DMTRADE/katalogi/johansson/6700/6700decl.pdf
Amplifier presentation and its programming using Johansson model REF. 6711 as an example
product features
List price
258,60 €/1pcs.
Brand
Entity responsible for this product in the EU
DMTrade Mikołaj TomaszewskiMore
ProducerDMTrade Mikołaj TomaszewskiAddress:
ul. Wiśniowa 36Postal code: 64-000City: KościanCountry: PolskaPhone number: +48 61 111 02 52E-mail: info@dmtrade.pl
Responsible entityDMTrade Mikołaj TomaszewskiAddress:
ul. Wiśniowa 36Postal code: 64-000City: KościanCountry: PolskaPhone number: +48 61 111 02 523E-mail: info@dmtrade.plDescription: DMTrade
Symbol
J_6700
Producer code
5903031046014
Warranty
Max. dB output level?V
131
Number of inputs
5
Number of channels supported
50
Number of programmable clusters
50
Max. dB gain
75
Control
Digital
Auto scanning
Inbound, Outbound
At the output
