AGSM-M01_V1
2.4GHz WiFi omnidirectional antenna with RP-SMA connector 2.5m 4.8dBi

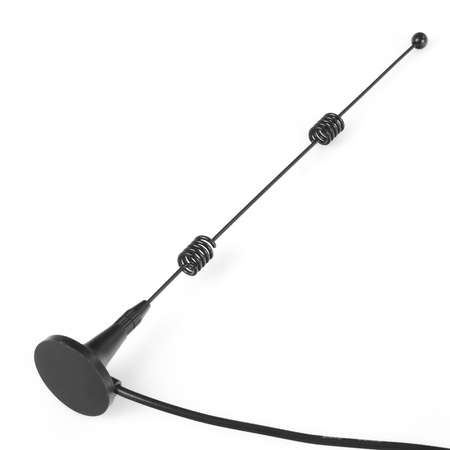

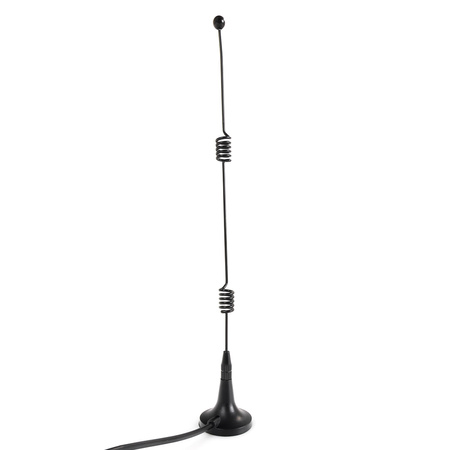

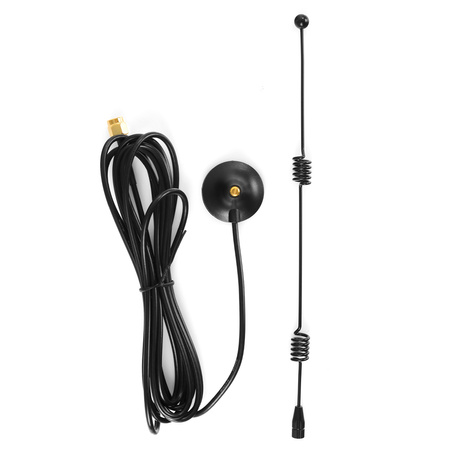

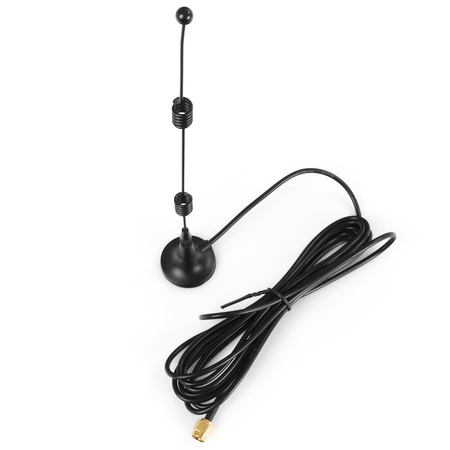

The magnetic Wi-Fi antenna can be used in active devices such as access points, PCI or USB wireless cards, Wi-Fi cameras, as well as in laptops equipped with cards with RP-SMA connector. It allows for greater range compared to a standard series-mounted antenna.

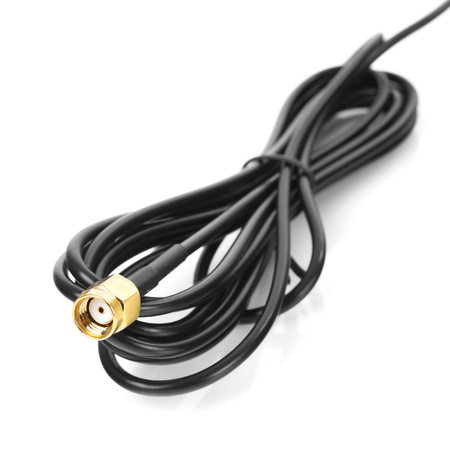

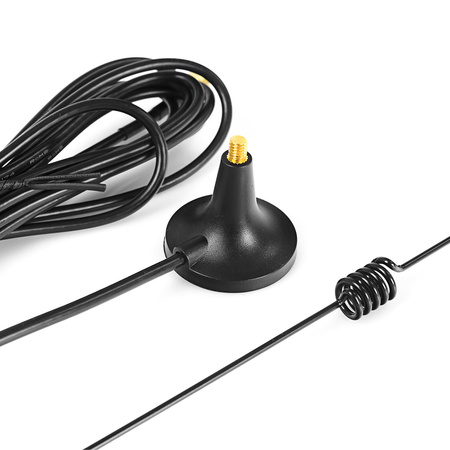

The antenna has a magnetic base with a diameter of 2.9cm and a height of 22.3cm (including the base), so it has a very large application in industry as well as at home.Equipped with a 2.5m cable terminated with RP-SMA connector.
Specifications:
Gain: 4.8 dBi
Mounting type: Magnetic
Frequency band range: 2.4 GHz
Antenna connector type: RP-SMA male
Cable length: 2.5m
Impedance: 50Ohm
Height: 223mm
Diameter: 29mm
Operating temperature: -40°C ~ 85°C
product features
List price
11,00 €/1pcs.
Brand
Entity responsible for this product in the EU
Spacetronik Sp. z o.o.More
Address:
ul. Wiśniowa 36Postal code: 64-000City: KościanCountry: PolskaPhone number: +48661082052E-mail: info@spacetronik.pl
Symbol
AGSM-M01_V1
Producer code
5903031042672
Warranty
Frequency range [MHz]
2400 - 2500
Cable length
No
Antenna termination
rP SMA male connector
