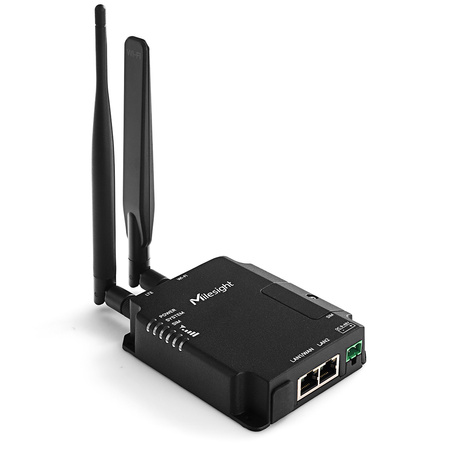

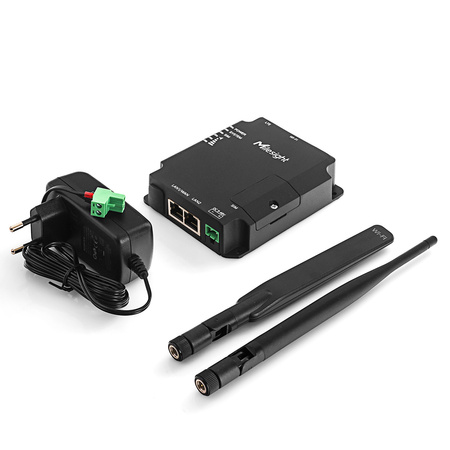

Milesight UR32S 4G LTE PoE CCTV Router + WiFi Antenna
By implementing the router in practical CCTV projects, Milesight CCTV Router UR32S can achieve a stable and secure connection between on-site monitoring equipment and remote professional installers or technicians. In this way, Milesight cameras and NVRs can be easily and remotely managed in a more secure and efficient way.
Intelligent remote management solution
- Get a stable and secure connection between on-site monitoring devices and remote professional installers or technicians
One click in the Milesight app is all it takes to automatically search for devices connected to the router
- Easily configure remote device access permissions for installers or technicians, respectively
Remote router access and bulk configuration of devices connected to the router through Milesight CMSS
Reduce on-site visits and efficiently troubleshoot even from the other side of the world
Wi-Fi client and AP mode
The Milesight UR32S CCTV ro uter supports Wi-Fi client and AP mode, allowing users to simply connect the router to the M-Sight Pro application. Since all devices connected to the router will be instantly displayed in the app, users can configure remote access permissions for devices collectively for installers or technicians in just a few steps.
Ultra-high reliability
Milesight CCTV Router UR32S offers global 4G LTE CAT4/3G networking with multiple carrier networks, providing easy global connectivity. It supports automatic failover or failback between Ethernet and mobile network with SIM card inserted.
Industrial-grade design for harsh environments
Equipped with an industrial-grade NXP processor and a compact design, the Milesight CCTV Router UR32S provides excellent performance and easy deployment even in confined spaces. In addition, the rugged IP30-rated metal housing allows for reliable operation in harsh environments and can withstand temperatures ranging from -40°C to +70°C.
Milesight VPN
The UR32 supports connection and management via Milesight VPN. MilesightVPN is a local VPN platform designed for Milesight CCTV routers to quickly and easily establish a VPN network, achieving a comprehensive remote access solution.
- Easy connection via authentication code
- Overview of connection status
- Remote and secure access to devices
Advanced routing features
Milesight CCTV Router UR32S guarantees secure transmission via stateful VPN firewall tunnels, including IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN. At the same time, it supports SNMP v1/v2c/v3, providing maximum security and flexibility to meet different needs.
Industrial router applications
Application in manufacturing
Against the backdrop of the rising tide of automation, modern production lines are increasingly dependent on network quality. It has a significant impact on the reliability of machines, and thus on the quality and speed of production. Through the use of industrial routers, we are able to receive real-time notifications, perform analysis and fault diagnostics. Updating and management of equipment is also greatly improved.
Application in monitoring
With technological development and increasing urbanization, monitoring is increasingly playing a key role. In order to efficiently deal with, for example, problems caused by traffic or other emergencies, smooth and uninterrupted operation of intelligent monitoring can be an important element.
Network access in public transportation
The trend toward smartphone ownership is on the rise, and it is increasingly difficult to meet a person who would not use the Internet on their phone. Not to mention other devices such as a tablet or laptop. With Spacetronik industrial routers, we can create stable 4G mobile communications and offer WiFi hotspot
Parcel Machines and Smart Cabinets
Who has never ordered a parcel to a Parcel Machine-type pick-up point should raise their hand. Thanks to industrial routers, it is possible to have an efficient, remote connection to the head office. This is an ideal way to replace the traditional wired transmission.
Robotics and modern technology
If you are developing your passion or working professionally in the robotics sector, then you will certainly need extremely fast routers that can be installed in any way you want. The latest technology needs advanced solutions such as the Milesight router.
Technical specifications
Hardware System
- CPU - ARM Cortex-A7,528 MHz
- Memory - 128MB DDR3 RAM and 128MB Flash
Cellular Interface
- Antenna Connector - 1 × 50 ? SMA Connectors (Center PIN: SMA Female)
- SIM Slots - 1(Mini SIM-2FF)

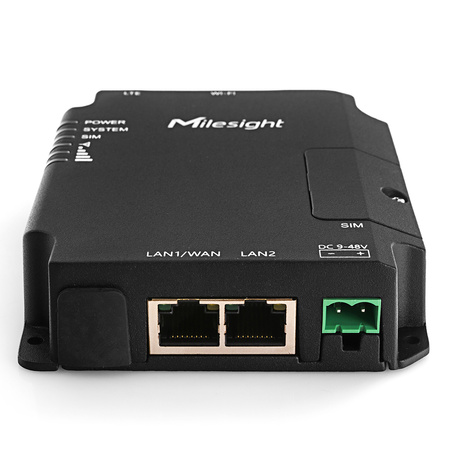

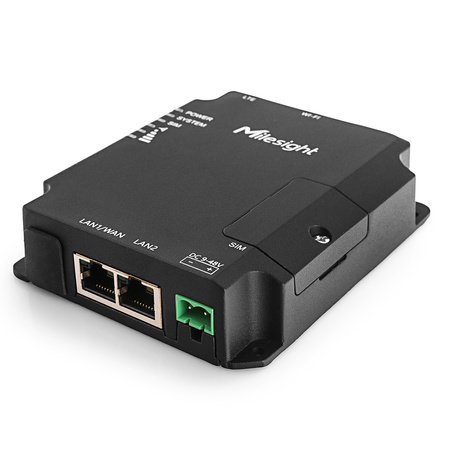

Ethernet Interface
- Numbers - 2 × 10/100 Mbps
- Property - 1 × WAN + 1 × LAN (Default) or 2 × LAN
- Mode - Full or half-duplex (Auto-Sensing)
- PoE - 2 × 802.3 af/at PoE PSE on LAN Ports (Optional)
Wi-Fi Interface
- Antenna Connector - 1×50? SMA Connector (Center PIN: RP-SMA Female)
- Standards - IEEE 802.11 b/g/n,2.4GHz
- Tx Power - 802.11b: 16 dBm +/-1.5 dBm (11 Mbps)
802.11g: 14 dBm +/-1.5 dBm (54 Mbps)
802.11n: 13 dBm +/-1.5 dBm (65 Mbps, HT20/40 MCS7) - Modes - AP or Client mode
- Security - WPA/WPA2 authentication, WEP/TKIP/AES encryption
Others
- Reset Button - 1 × RESET
- LED Indicators - 1 × POWER, 1 × SYSTEM, 1 × SIM, 3 × Signal strength
- Built-in - Watchdog, Timer
Software
- Network Protocols - IPv4/IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, VLAN, SSH, FRP, etc.
- VPN - DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE
- Security - Access Control, DMZ, Port Mapping, MAC Binding, SPI Firewalls, DoS&DDoS Protection, Filtering(IP&Domain), IP Passthrough
- Management - Web, CLI, SMS, On-demand dial up, SNMP v1/v2/v3, DeviceHub
- AAA - Radius, Tacacs+, LDAP, Local Authentication
- Multilevel Authority - Multiple Levels of User Authority
- Reliability - VRRP, WAN Failover
Power Supply and Consumption
- Power Connector - 2-pin 5.08 mm Terminal Block
- Input Voltage - 9-48 VDC, with Surge-Protection and Reverse Polarity Protection
- Power Consumption - Typical 1.8 W, Max 2.2 W (In Non-PoE mode)
Physical Characteristics
- Ingress Protection - IP30
- Housing - Metal
- Dimension - 108 x 90 x 26 mm (4.25 x 3.54 x 1.02 in)
- Installation - Desktop, Wall or DIN Rail Mounting
Environmental
- Operating Temperature - -40°C to +70°C (-40? to +158?) Reduced Cellular Performance Ab
- Storage Temperature - -40°C to +85°C (-40? to +185?)
- Ethernet Isolation - 1.5 kV RMS
- Relative Humidity - 0% to 95% (non-condensing) at 25°C/77?
Aprovals
- Regulatory - CE, FCC, RCM
- Environmental - RoHS
- EMC - EN 55032, EN 55035
- EMS
IEC 61000-4-2 Level 3
IEC 61000-4-3 Level 2
IEC 61000-4-4 Level 2
IEC 61000-4-5 Level 2
IEC 61000-4-6 Level 3
IEC 61000-4-8 Level 1
IEC 61000-4-11 Level 3 - Radio Frequency - EN 301 489-1/17/19/52, EN 301 511, EN 301 908-1/2/13, EN 303 413
- Safety - EN62368-1
