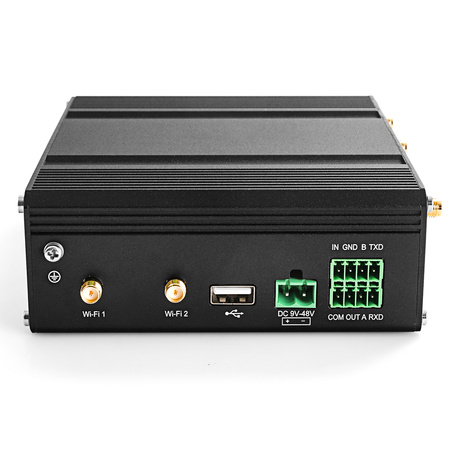

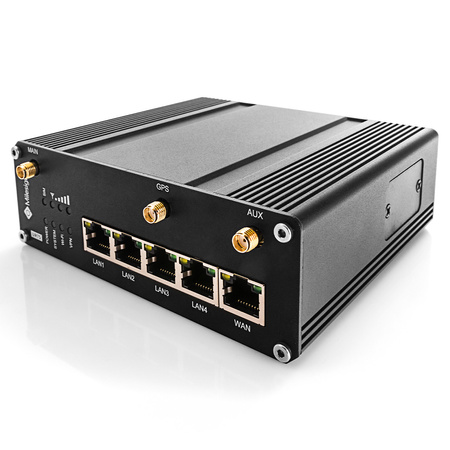

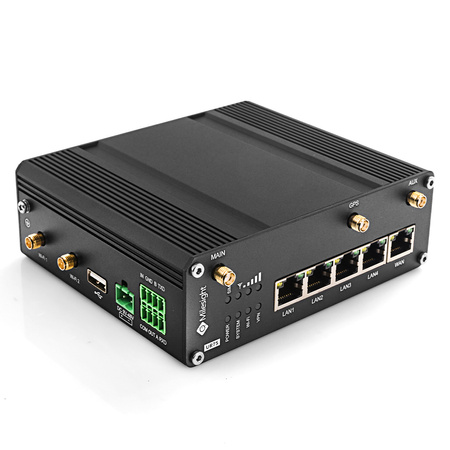

Milesight UR75-L04EU-G-P-W advanced industrial 4G LTE PoE router
A great choice for professional M2M applications. Thanks to its high 4G LTE network speed and advanced performance, the industrial router will prove itself as a wireless data device in areas where the transfer load is very high.
Features of Milesight 4G UR75 industrial router
- 4G / Wi-Fi / GPS Supported
- Dual SIM / 1 * M.2 NVMe SSD Interface
- 5 * 10/100/1000Mbps
- (1 * WAN + 4 * LAN)
- 1 * RS232 + 1 * RS485
- 1 * DI + 1 * DO
- PoE PSE
Advanced OpenCPU system
UR75 is equipped with an improved quad-core ARM Cortex-A55 processor with more memory for faster data transmission.
Adopting OpenCPU system, UR75 has a more simplified but efficient structure with advantages:
- Lower power consumption
- Reduced investment cost
- Increased flexibility and performance
Ultra-high reliability
- Fast network backup
Automated failover/disaster backup between Ethernet, cellular (two SIM cards) and Wi-Fi networks - Built-inWatchdog
Built-in hardware watchdog for automatic recovery from various failures - Security protection
Equipped with multiple protection measures such as ACL, DMZ, SYN-Flood protection and data filtering to ensure network security
Industrial-grade design for harsh environments
With a wide operating temperature range of -30°C to 60°C and an IP30-rated metal enclosure, the UR75 maintains performance in harsh environments.
Milesight VPN
UR75 supports connection and management with Milesight VPN
- Easy connection via authentication code
- Overview of connection status
- Remote and secure access to devices
DeviceHub
Milesight DeviceHub offers a high-performance, low-maintenance solution for easy deployment of Milesight industrial cellular routers across multiple sites, reducing complexity and increasing productivity.
- Centralized management
- Device status monitoring
- Remote and bulk configuration
Industrial router applications
Application in manufacturing
In the context of the rising tide of automation, modern production lines are increasingly dependent on the quality of the network. It significantly affects the reliability of machines, and thus the quality and speed of production. Through the use of industrial routers, we are able to receive real-time notifications, perform analysis and fault diagnostics. Updating and management of equipment is also greatly improved.
Application in monitoring
With technological development and increasing urbanization, monitoring is increasingly playing a key role. In order to efficiently deal with, for example, problems caused by traffic or other emergencies, smooth and uninterrupted operation of intelligent monitoring can be an important element.
Network access in public transportation
The trend toward smartphone ownership is on the rise, and it is increasingly difficult to meet a person who would not use the Internet on their phone. Not to mention other devices, such as a tablet or laptop. With Spacetronik industrial routers, we can create stable 4G mobile communications and offer WiFi hotspot
Parcel Machines and Smart Cabinets
Who has never ordered a parcel to a Parcel Machine-type pick-up point should raise their hand. Thanks to industrial routers, it is possible to have an efficient, remote connection to the head office. This is an ideal way to replace traditional wired transmission.
Robotics and modern technology
If you are developing your passion or working professionally in the robotics sector, then you will certainly need extremely fast routers that can be installed in any way you want. The latest technology needs advanced solutions such as the Milesight router.
Technical specifications
Hardware System
- CPU Qualcomm Quad-core ARM Cortex-A7,716.8 MHz
- Memory 512 MB DDR3 RAM and 8GB Flash
- Extendable Storage 1 × M.2 NVMe SSD Interface
Cellular Interface
- Antenna - 2 × 50 ? SMA Connectors (Center PIN: SMA Female)
- SIM Slots - 2?Mini SIM-2FF?

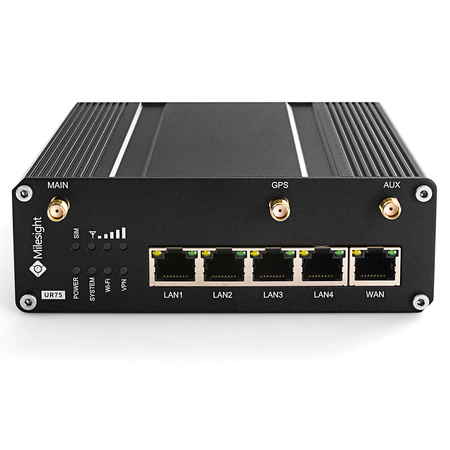

Ethernet Interface
- Numbers - 5 × 10/100/1000 Mbps
- Property - 1 × WAN +4 × LAN
- Mode - Full or Half Duplex (Auto-Sensing)
- PoE - 4 × 802.3 af/at PoE PSE on LAN Ports (Optional)
WiFi Interface
- Antenna - 2 × 50 ? SMA Connectors (Center PIN: RP-SMA Female)
- Standards -
IEEE 802.11b/g/n/ax 2 × 2 MIMO, 2.4 GHz
IEEE 802.11a/n/ac/ax 2 x 2 MIMO, 5 GHz - Max Bit Rate - 2.4 GHz: 600 Mbps, 5 GHz: 1200 Mbps
- Modes - AP and Client mode
- Security - WEP/WPA/WPA2 authentication, WEP/TKIP/AES encryption
GPS
- Antenna - 1 × 50 ? SMA Connector (Center PIN: SMA Female)
- Technology - GPS/GLONASS/Beidou/Galileo/QZSS
Serial Interface
- Numbers - 1 × RS232 + 1 × RS485 (2 × RS485 Optional)
- Connector - 3.5 mm Terminal Block
- Baud Rate - 300bps to 230400bps
DI/DO
- Numbers - 1 × DI (dry contact) + 1 × DO (wet contact), galvanic isolation
- Connector - 3.5mm Terminal Block
- Maximum V/A - 0.3A@30VDC (DO)
Others
- USB - 1 × USB 2.0
- Reset Button - 1 × RESET
- LED Indicators - 1 × POWER,1 × SYSTEM,1 × VPN,1 × WLAN,1 × SIM,3 × Signal strength
- Built-in - Watchdog, Timer
Software
- Network Protocols - IPv4/IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, VLAN, SSH, etc.
- VPN - DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE
- Security - Access Control, DMZ, Port Mapping, MAC Binding, SPI Firewalls, DoS&DDoS Protection, Filtering(IP&Domain), IP Passthrough
- Management - Web, CLI, SMS, On-demand dial up, SNMP v1/v2/v3, DeviceHub
- AAA - Radius, Tacacs+, LDAP, Local Authentication
- Multilevel Authority - Multiple Levels of User Authority
- Reliability - VRRP, WAN Failover, Dual SIM Backup
- Serial Port - Transparent(TCP Client/Server, UDP), Modbus Master/Slave, Modbus Gateway (Modbus RTU to Modbus TCP)
Power Supply and Consumption
- Power Connector - 2-pin 5.08 mm Terminal Block
- Input Voltage - 9-48 VDC, with Surge-Protection and Reverse Polarity Protection
- Power Consumption - ? 7.9W (In Non-PoE mode)

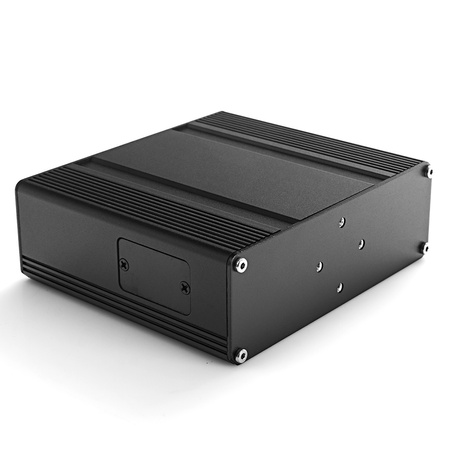

Physical Characteristics
- Ingress Protection - IP30
- Housing - Metal
- Dimension - 135 x 115 x 36.4 mm (5.31 x 4.53 x 1.43 in)
- Installation - Desktop, Wall or DIN Rail Mounting
Environmental
- Operating Temperature - -30°C to +60°C (-22? to +140?)
- Storage Temperature - -40°C to +85°C (-40? to +185?)
- Ethernet Isolation - 1.5 kV RMS
- Relative Humidity - 0% to 95% (Non-condensing) at 25°C/77?
