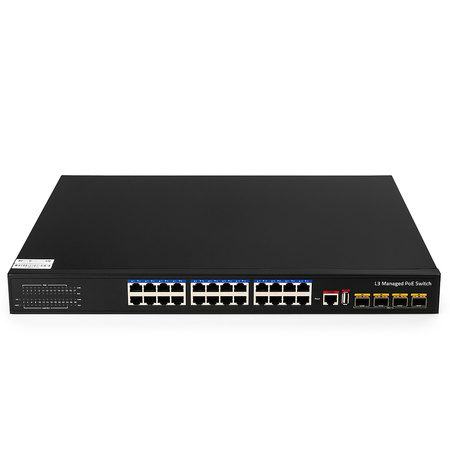

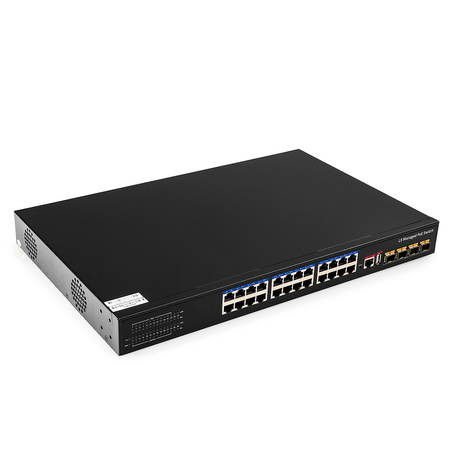

PoE+ 400W Managed L3 Switch Cudy GS5024PS4-400W 24-port + 4 SFP

The Cudy GS2028PS4 is a 28-port managed PoE switch with VLAN function, supporting IEEE 802.1d?IEEE 802.1w?IEEE 802.1s?IEEE 802.1p?IEEE 802.3?IEEE 802.3u?IEEE 802.3x?IEEE 802.3z?IEEE 802.3ab?IEEE 802.3ae protocols. It offers 24 10/100/1000 Mbps PoE+ ports, 4 10G SFP ports, 1 console port and 1 USB port. With features such as link aggregation, access control and QoS support, it is perfect for corporate networks, surveillance cameras or VoIP systems.

Main features

- 24 PoE+ 10/100/1000Mbps ports
- 4 SFP/TP Combo 1000Mbps ports
- 2 uplink 1000Mbps ports

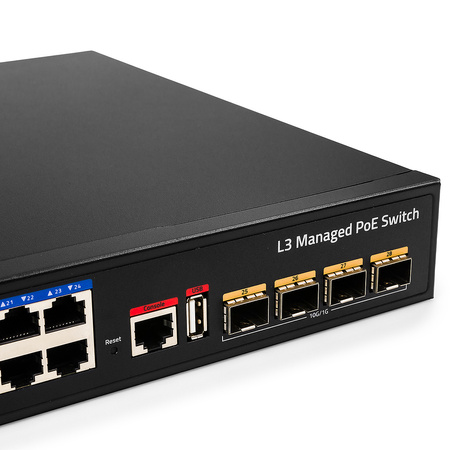

- 1 RJ45 console port
- 128Gbps bandwidth
- Maximum PoE power: 390W
- Support for IEEE 802.3af/at protocol

Security and management

The Cudy GS2028PS4 switch has advanced security and management features. Among them are the ability to set a password for security, access level management for users, and support for HTTPS, SSH V1/V2 protocols.

VLAN functions

The switch offers support for 4096 VLANs, Access, Trunk and Hybrid VLAN modes, GVRP protocol and many other VLAN-related features.

Bandwidth management

The Cudy GS2028PS4 LAN Switch provides bandwidth control and traffic prioritization. It supports QoS functions such as traffic classification, traffic shaping and queue marking.

Support for multicast protocols

The Cudy GS2028PS4 switch supports multicast protocols such as IGMP Snooping v1/v2 and other multicast group management functions.

Energy saving

With the IEEE 802.3az (Energy Efficient Ethernet) function, the Cudy GS2028PS4 switch saves energy by automatically adjusting power consumption according to network load.

Specifications

Model: Cudy GS5024PS4-400W

Compliant with IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae.
L3 management, DHCP server support, QoS, ACL control, SNMP V1/V2/V3 support, IGMP Snooping v1/v2 support.
Support for Spanning Tree Protocol STP/RSTP/MSTP (ERPS), support for loop detection and self-healing, support for remote monitoring and loop control (802.3ah OAM).
Support for multiple VLAN splitting, mac VLAN, protocol VLAN, private VLAN.
Support for IP + MAC + VLAN + port binding, support for DHCP Snooping, support for IP source protection and DAI.
Support for IPV4/IPV6,RIP,OSPF.
Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4W) power supply standards.
Support for PoE management, PoE watchdog.

Interfaces:

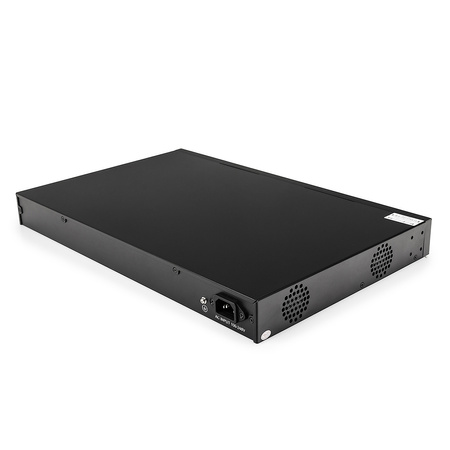

- Power: AC100-240V/50-60Hz
- Ethernet: 2410/100/1000Mbps PoE ports, 410G SFP ports
- Performance: 128Gbps throughput, 95.23Mpps packet throughput
- Memory: DDR SDRAM 128MB, Flash 16MB, Packet Buffer 12Mbit
- MAC Address: 16K
- Jumbo Frame: 12Kbytes
- VLAN: 4096
- MTBF: 100000 hours

Standards:
-Network Protocols: IEEE 802.3: Ethernet MAC Protocol, IEEE 802.3i: 10BASE-T Ethernet, IEEE 802.3u: 100BASE-TX Fast Ethernet, IEEE 802.3ab: 1000BASE-T Gigabit Ethernet, IEEE 802.3z: 1000BASE-X Gigabit Ethernet, IEEE 802.3ae: 10G Ethernet, IEEE 802.3az: Energy-efficient Ethernet, IEEE 802.3ad: Standard method of performing link aggregation, IEEE 802.3x: flow control, IEEE 802.1ab: LLDP/LLDP-MED, IEEE 802.1p: LAN Layer 2 Qos/Cos protocol related to traffic priority, IEEE 802.1q: VLAN Bridge Operation, IEEE 802.1x: Client/Server Access Control and Authentication Protocol, IEEE 802.1d: STP, IEEE 802.1s: MSTP, IEEE 802.1w: RSTP.
- PoE protocols: IEEE802.3af (15.4W), IEEE802.3at (30W)

Operating environment:
- Operating temperature: -10-50°C
- Storage temperature: -40-70°C
- Humidity during operation: 10%~90%, non-condensing
- Humidity during storage: 5%~90%, non-condensing
- Altitude during operation: up to 10,000 feet
- Altitude during storage: up to 10,000 feet

Function indicators:
- PWR (Power indicator)
- SYS (System indicator)
- Link (Link indicator)
- PoE/ACT (PoE indicator)
- ACT (Data transmission indicator)

Physical Specifications:
- Device dimensions: 440x280x44mm
- Net weight: 4.03KG
- Power supply voltage: AC100-240V/50-60Hz
- Power supply: 52V 7.5A 12V4A
- Product power consumption: 33W
- PoE budget: 390W
- Total power consumption: 440W

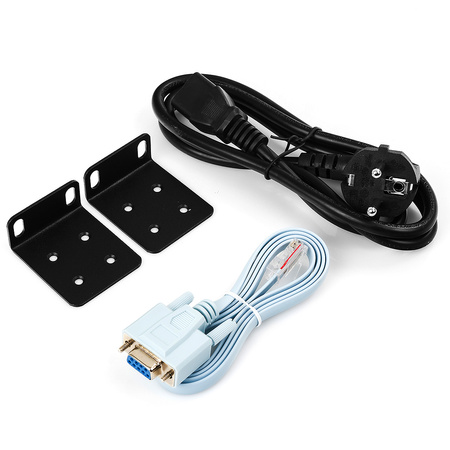

Package contents:

Ethernet switch 1 piece, User's manual 1 piece, Certificate 1 piece, Power cable 1 piece, Serial cable 1 piece, Attachments 1 pair....
