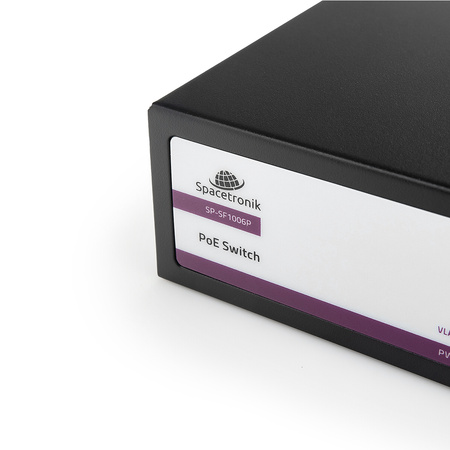

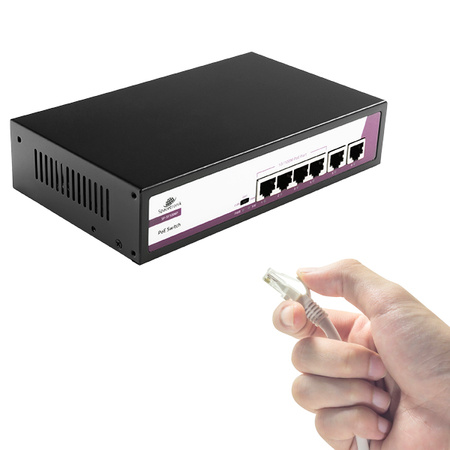

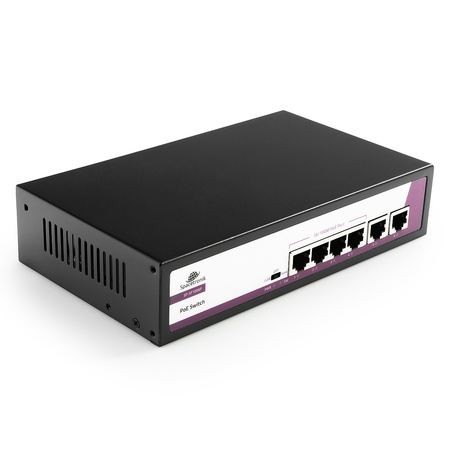

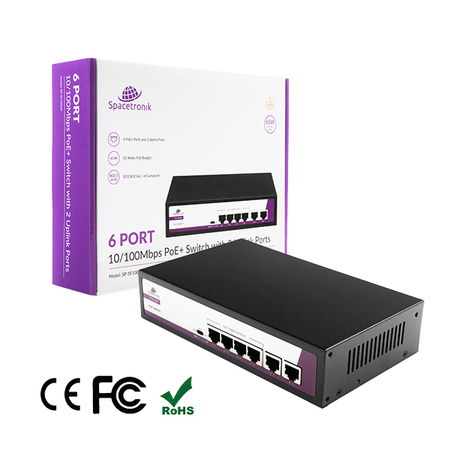

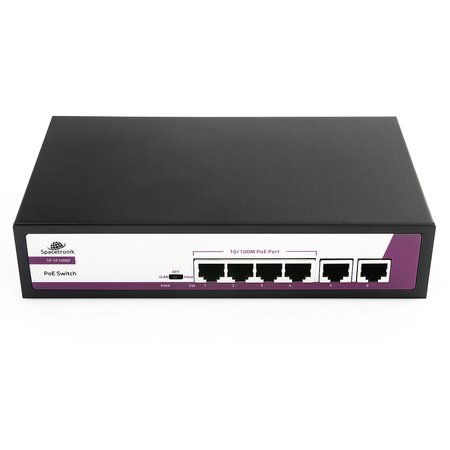

spacetronik 6-Port SWITCH 4x POE port + 2x Uplink Ethernet port RJ45 SP-SF1006P 10/100Mbps 65W

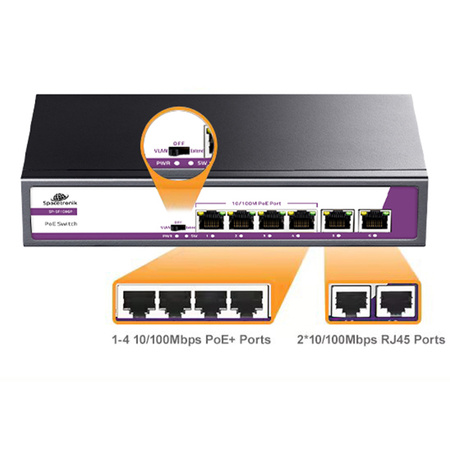

- 4*10/100M POE ports + 2*10/100M Ethernet Uplink ports
- Compliant with IEEE 802.3/IEEE 802.3u/ IEEE 802.3x standards
- Ethernet port supports adaptive 10/100M speed
- Supports Watchdog function
- Supports automatic port inversion (Auto MDI/MDIX)
- Panel indicators monitor status and help analyze failures
- Smart switch with three speeds and one button, supporting VLAN mode, OFF mode and Extend mode
- Lightning surge: general mode 4KV (level B), ESD 8KV, 6KV (level C)
Application of Spacetronik PoE switches
- Metro-optical broadband network:
Data network operators such as telecommunications, cable TV and network system integration, etc.
- Broadband private network
Suitable for financial, government, oil, railroad, electric power, public security, transportation, education and other industries
- Multimedia transmission
Integrated video, voice and data transmission, suitable for remote teaching, conference TV, videophone.
- Real-time monitoring
Simultaneous transmission of control signals, images and data in real time
Power over Ethernet PoE - what is it?
Power over Ethernet (PoE for short) is a technology for transmitting power over an Ethernet cable. This allows us to simultaneously power the device and provide information exchange. PoE technology is particularly popular for IP cameras, VoIP phones, Internet access points (Access Point) and POS terminals. Network devices using PoE are convenient to use, which makes them well-liked by installers. Taking a surveillance network, for example - normally one would have to pull a separate power and transmission cable for each camera. Here we can use a switch that both powers the devices and transmits information from them.
High performance
RJ-45 ports with auto-negotiation can ensure the transfer of large files, and are compatible with any 10/100Mbs Ethernet devices. Thanks to the non-blocking switching architecture, the product forwards and filters packets at full cabling speed for maximum throughput.
It is a switch for all conditions - rugged housing, temperature resistance. Ideal for industrial applications.

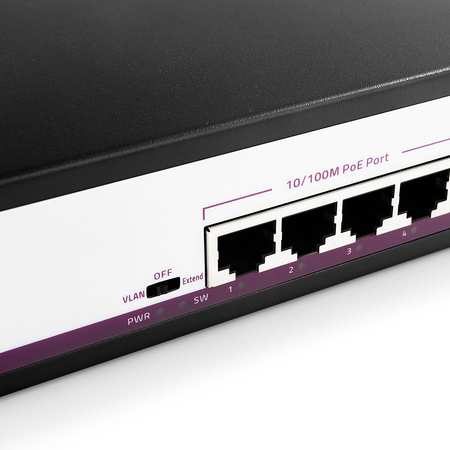

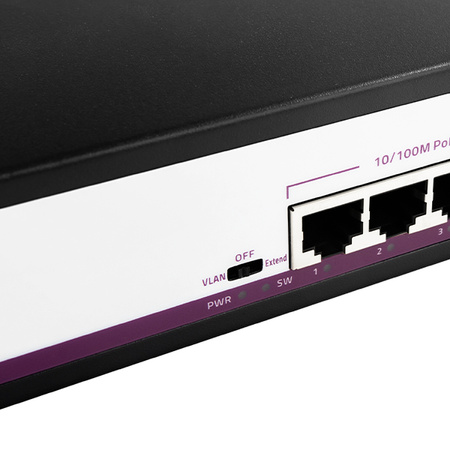

Simple button to switch between modes
With one button on the chassis you can switch between VLAN, OFF, Extend modes
60W POE+ power
Supports a total PoE power of 60W. Automatically detects the power device, so it won't burn a non-standard PoE device or a normal PoE switch. Compatible with the POE standard IEEE802.3af/at.
Plug&Play technology
Easy-to-use industrial switch - just plug in the device. No additional hardware or network configuration required.
Watchdog
PoE watchdog constantly monitors the connection status of remote hosts. If an error is detected on a remote PoE device, the PoE switch immediately reboots the device to return it to normal operation. The Watchdog system is great especially for monitoring network equipment located in a remote location when a manual reset is not possible.
CE, FCC, RoHS certifications
This Ethernet switch is certified by the European CE, US FCC and meets the standards of the ROHS directive, making it a fully tested, high-quality product that meets all global standards and norms.
Operation over a wide temperature range
The Ethernet switches are designed with wide temperature support to ensure reliable operation in temperatures from -10?C to 50?C. Made of high quality metal housing, rugged and durable, with long service life, provides better heat dissipation, suitable for most environments.
Technical Specifications SP-SF1006P
Voltage

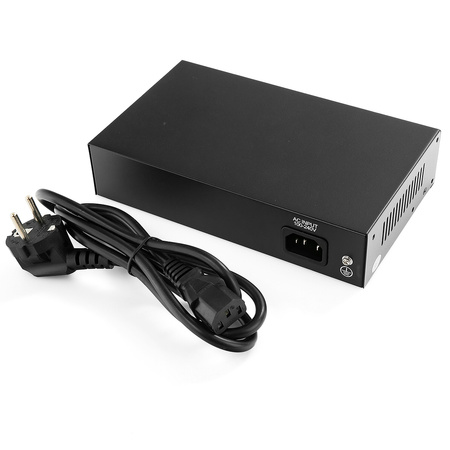

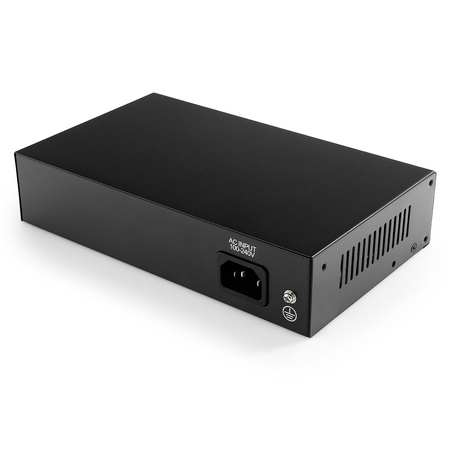

Power input voltage - AC 100-240V
Power supply output voltage - 52V 1.25A
PoE
Network protocols IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX), IEEE802.3x (Flow control)
PoE+ protocols IEEE802.3af (15.4W), IEEE802.3at (30W)
PoE+ port output voltage: DC 44-57
PoE+ power pins: 1/2+; 3/6-
PoE+ resource: 65W
Performance
Switching capacity - 1.2Gbps
Performance - 0.8928Mpps
Packet buffer - 448Kbit
MAC address - 1K
Forwarding mode - Store and forward
Modes - VLAN, Normal, Extend
Network Medium - 10BASE-T: Cat 3,4,5 or above UTP/STP (?100 m); 100BASE-TX: Cat5 or above UTP/STP (?100 m)

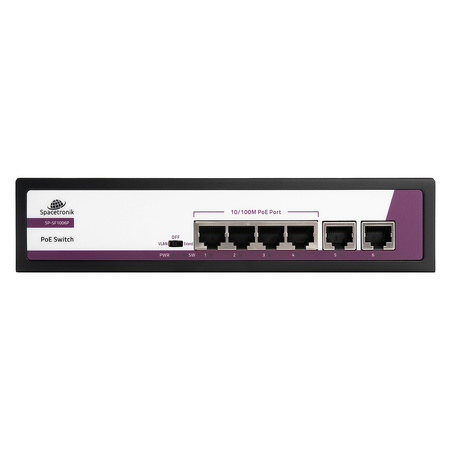

LED indicators - PWR, Link, SW
Industry standards - EMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge)
Dimensions
Productdimensions- 200*118*44mm; Package dimensions - 245*190*60mm
Net product weight - 0.6kg; Gross product weight - 0.86kg
Operating environment
Operating temperature: -10-50C
Storage temperature: -40-70C
Operating humidity: 10%~90% (non-condensing)
Storage humidity: 5%~95% (non-condensing)
Package contents - switch 1pc, manual 1pc, certificate 1pc, power adapter 1pc.
Certifications - CE, FCC, RoHS
