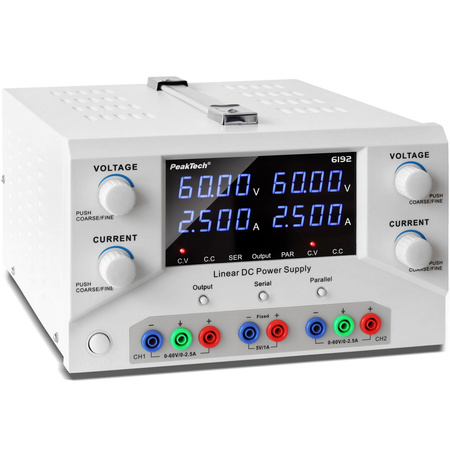

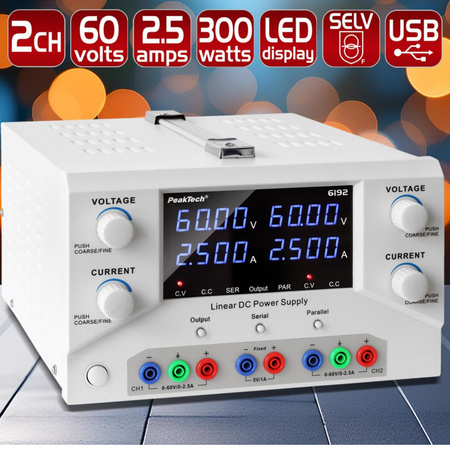

PeakTech 6192 2-channel 60V 2.5A DC laboratory power supply with USB
The 2-channel linear regulated laboratory power supply provides reliable performance and a high level of safety thanks to its integrated safety transformer. With an adjustable output of 0?60 V and 0?2.5 A DC, it is versatile and ideal for a variety of lab and workshop applications. It features current preselection, which allows you to set the desired current value before connecting the load. Four-digit blue LED displays clearly and accurately show voltage, current and power. An output button outputs the selected settings only after they have been set, preventing unintentional changes and providing additional safety. A temperature-controlled fan automatically adjusts to the temperature of the device, ensuring efficient cooling and quiet operation. With four current and voltage potentiometers, the desired output values can be set quickly and precisely. Two output channels can be connected in series or parallel at the touch of a button to double the output voltage or current. This model also offers a USB interface for remote control and reading via computer.
Key features of the PeakTech 6192 power supply
- Adjustable output in the range of 0?60 V and 0?2.5 A DC
- 4-digit segmented display of current, voltage and power
- Channels can be used independently, in series or in parallel
- Potentiometer for coarse and fine adjustment
- Overload protection and short circuit protection
- Temperature-controlled fan
- High load stability and low residual ripple
- Robust metal housing with carrying handle
- Very low safety voltage (SELV) output
- Safety: EN-61010-1, EN 61558-2-6
- Accessories: power cable, user manual, USB cable, software
Specifications
- Channels: 2 channels
- Cooling: Active
- Display type: segmented
- Input voltage: 115-230V 50/60Hz
- Output current: 0 - 2.5 A
- Output voltage: 0?60 V DC
- SELV: yes
- USB: yes
