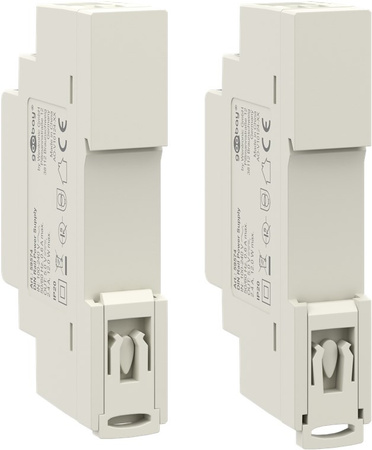

ZASDIN05V
DIN rail power supply | 5V | 2.4A | 12W
- The 5V power supply is suitable as a bell transformer, to operate surveillance and access systems, electric door openers, intercoms, bell systems, etc.
- It is suitable for DIN, TH 35/7.5 or TH 35/15 mounting.

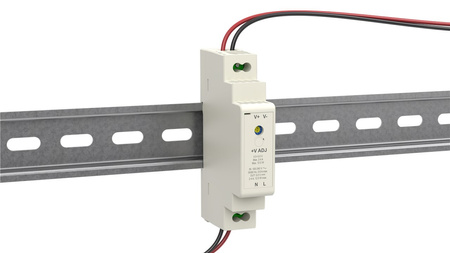

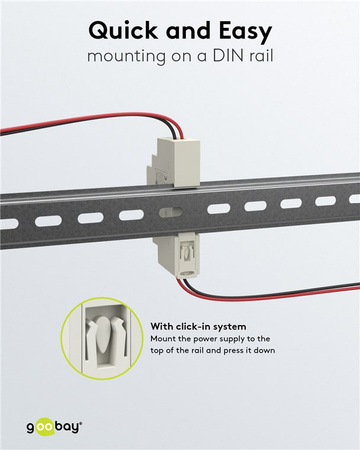

- With a width of 18 mm, it is particularly compact and can be quickly and easily mounted on a DIN rail with a top-hat profile using a click system, such as in a control cabinet.
- LED 5 V transformer with high reliability and stability with an input voltage range of 100-240 V (AC) at 50/60 Hz
- The rectifier features a variable DC output voltage in the range of 4.5-5.5 V, as well as high efficiency and low no-load power.
- The switched-mode power supply is particularly safe thanks to its overvoltage, overload and short-circuit protection, IP20 rating and safe electronic insulation according to protection class II.

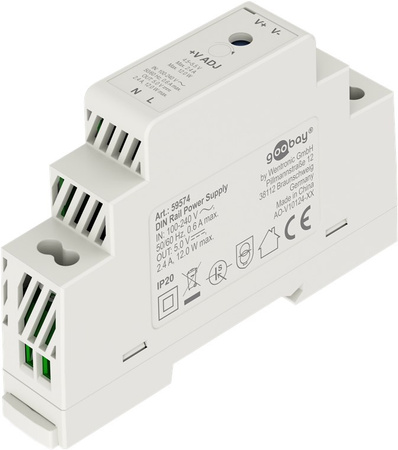

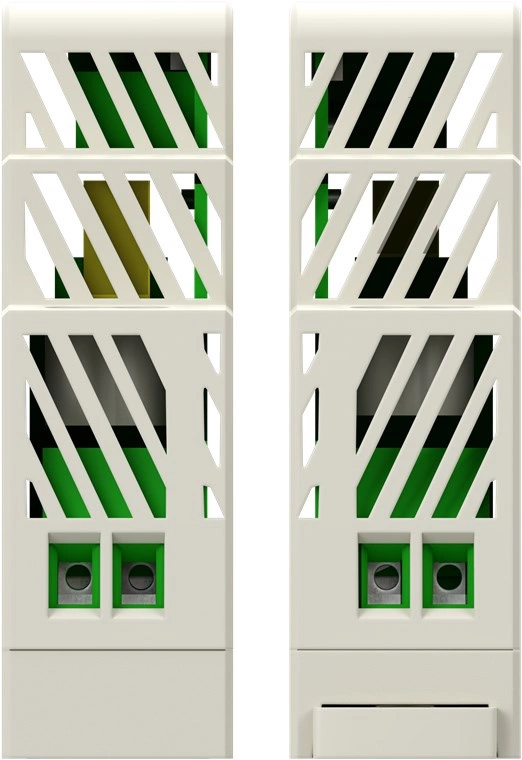

- The 230-volt to 5-volt transformer with passive convection cooling is connected via contact-protected screw terminals.

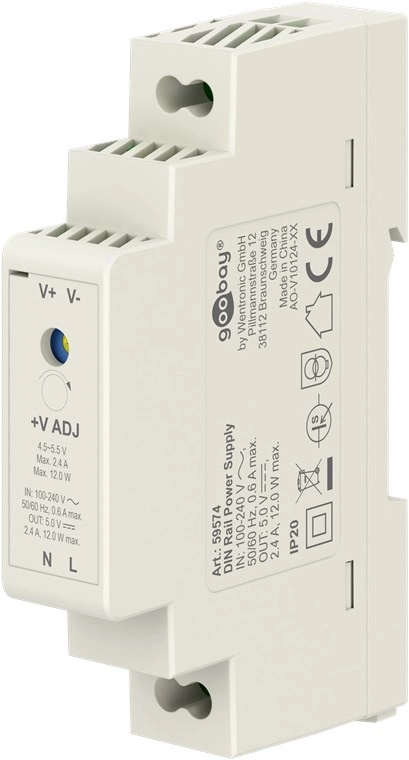

- The LED indicator on the DIN-rail transformer (DR-12-5) lights up continuously during operation.

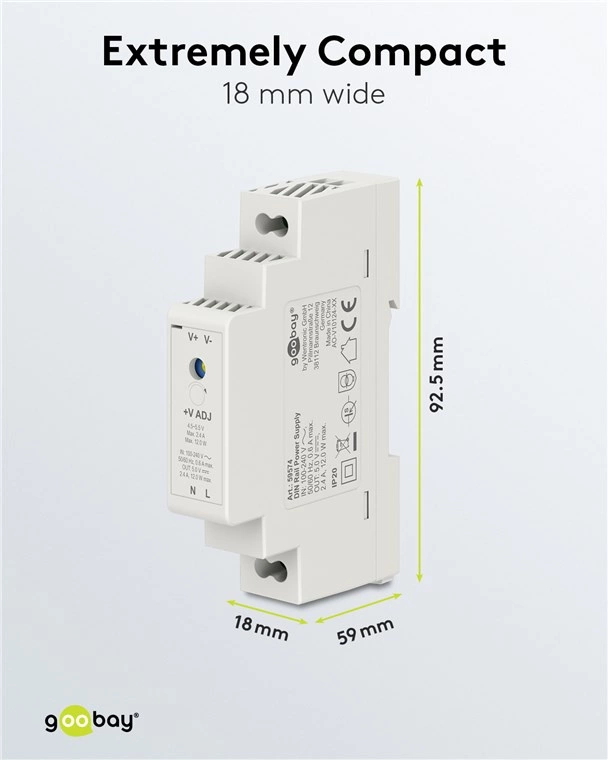

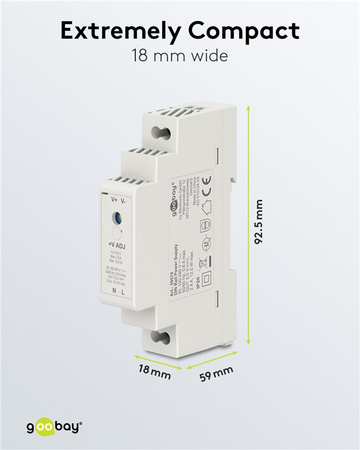

- Dimensions given in the product photo gallery.

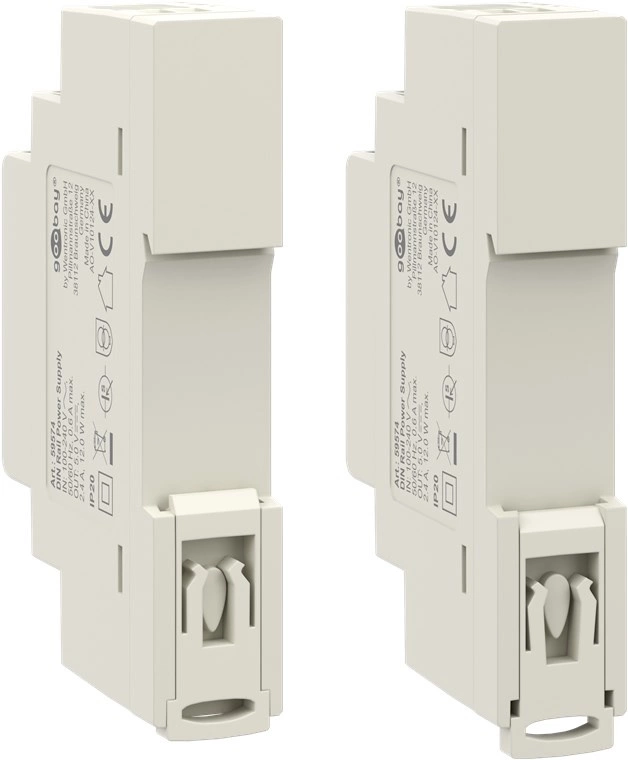

- Terminal/clip mounting.
product features
List price
12,80 €/1pcs.
Brand
Entity responsible for this product in the EU
DMTrade Mikołaj TomaszewskiMore
ProducerDMTrade Mikołaj TomaszewskiAddress:
ul. Wiśniowa 36Postal code: 64-000City: KościanCountry: PolandPhone number: +48 61 111 02 52E-mail: info@dmtrade.pl
Responsible entityDMTrade Mikołaj TomaszewskiAddress:
ul. Wiśniowa 36Postal code: 64-000City: KościanCountry: PolandPhone number: +48 61 111 02 523E-mail: info@dmtrade.plDescription: DMTrade
Symbol
ZASDIN05V
Producer code
4040849595745
Warranty
Output voltage [V]
5V
