EZ-BIR-XS00U

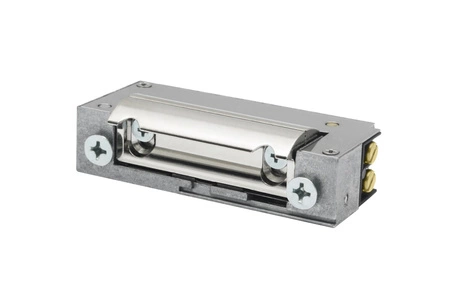

BIRA XS00U electric strike
The XS series electric strikes are slim (only 16.2 mm wide) and have small dimensions, allowing them to be installed in narrow profiles and door frames. They are built symmetrically ? they are perfect for left and right doors of various types. The catch is adjustable in 3.5mm and has a radial shape (it does not go beyond the outline of the electric strike) - it requires a smaller hole, which makes installation easier and faster.
Probably one of the most versatile electric strike available on the market.
Features:
- type of operation NC (normally closed) or NO (reversible)
- symmetrical design
- dimensions: width 16.2mm, height 67mm, depth 28mm,
- mechanical strength ? pressure 3000N (300kg)
- mechanical strength ? opening cycles 200,000
- for left and right handed doors
- striker adjustable in the range of 3.5mm
- radial shape of the striker ? during opening the striker does not go beyond the contour of the lock
product features
List price
23,90 €/1pcs.
Brand
Entity responsible for this product in the EU
DMTrade Mikołaj TomaszewskiMore
ProducerDMTrade Mikołaj TomaszewskiAddress:
ul. Wiśniowa 36Postal code: 64-000City: KościanCountry: PolandPhone number: +48 61 111 02 52E-mail: info@dmtrade.pl
Responsible entityDMTrade Mikołaj TomaszewskiAddress:
ul. Wiśniowa 36Postal code: 64-000City: KościanCountry: PolandPhone number: +48 61 111 02 523E-mail: info@dmtrade.plDescription: DMTrade
Symbol
EZ-BIR-XS00U
Producer code
BIRA XS00U 12-24V symmetrical electric door strike5903857580105
