GTMedia FreeSAT V8 Finder PRO 2 COMBO DVB-S2X/T2/C H.265 AHD 1080p DC 12V meter
GTMEDIA V8 Finder Pro 2 COMBO Meter for satellite DVB-S2X/S2/S, terrestrial and cable DVB-T/T2/C signal measurement, MPEG-2/4 H.264/H.265 compression supported (10 bits).
Handy COMBO meter, compact size of the device, light weight, intuitive user menu, long battery life, rich set of functions.
The meterprovides all the necessary functions for measurements in satellite TV installations, terrestrial antenna installations and cable TV signals.
Successor of the FreeSAT V8 PRO model, it supports AHD cameras up to Full HD 1080p resolution, not 720p, additional power output for cameras DC 12V 500mA, in the PRO 2 AV only signal input without output.
TFT LCD screen with a diagonal of 4.3 inches and high resolution
Built-inlithium-ion battery 7.4 V/4000 mAh - fast charging, long battery life.
Support for AHD CCTV cameras up to 1080p + additional power output for cameras DC12 V 500mA
Search for terrestrial and cable signals:DVB-T/T2/C MPEG-2/MPEG-4
Satellite signal search:DVB-S2X/S2/S
Technical specifications:
- 4.3" TFT LCD screen with high resolution
- Fully compatible with standards: DVB-S2X/S2/S/T2/T/C, MPEG-2/MPEG-4
- Supports H.264/H.265 hardware decoding (10 bit)
- Signal strength and quality measurement %
- Loop search support
- Spectrum analyzer
- View DVB-T2/C terrestrial channel video including audio !
- Supports auto, blind, manual or NIT scanning
- Automatic AZ,EL angle calculation
- Supports DISEQC 1.0/1.1/1.2,
- Supports Unicable converters
- Integrated speaker
- AV IN support
- HDMI output
- AHD 1.0 input: Test CCTV camera (support up to 1080P)
- Power outputs for cameras: DC12V 500mAh
- Built-in compass
- Support real-time power display with low power reminder
- Youtube media function via USB Wi-Fi 2.4G
- LNB short circuit protection
- Built-in 7.4V/4000 mAh lithium-ion battery
- Software update via USB

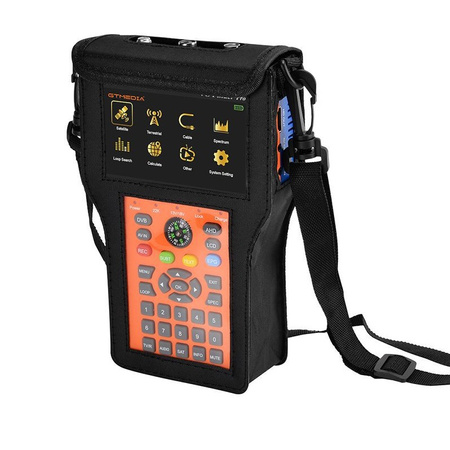

- Easy to carry (case + strap)
TRANSMISSION STANDARDS
- DVB-S2X/S2/S,DVB-T2/T,DVB-C,MPEG-2,MPEG-4,H.264/H.265 (10 bit)
- Auto rewind BISS, auto rotate PowerVu, TNT (19.2E)
- Support VCM, ACM, multiple streams, T2MI, multiple PLP
-Softcam support: CCCAM, NEWCAM, MGCAM
SATELLITE INPUT
- Connector type: F
- Input frequency: 950 to 2150 MHz
- Input signal level: -65 to -25 dBm
- Band switch control: 22 kHz
- LNB power supply: 13 V/18 V, 350 mA max
DVB-T2/T/C INPUT
- Connector type: IEC female type
- Input frequency: 48 to 862 MHz
- Input signal level: -80 dBm (MAX)
- ANT power supply: 5 V DC @ 120 mA MAX
- Demodulation type: QPSK,16QAM,32QAM,64QAM,128QAM,256QAM
LCD FEATURES
- LCD Type: 4.3? high-resolution digital LCD display
- Number of dots: 800 RGB(H) *480(V)
- Dimensions (W*H): 95.04*53.86mm
HDMI output
- HDMI 1.3a standard
- Resolution: 480i, 480P 576i, 576P, 720P, 1080i, 1080P
AV input interface
- Connector type: 3.5mm jack
- Video input: CVBS
- Audio input: stereo L/R audio input
CCTV AHD
- Connector type: BNC female
- Impedance: 75 ?
- Frequency range: DC ~ 2 GHz
- Video input: NTSC/PAL
- AHD input: 720P, 960P, 1080P
POWER SUPPLY
- Li-Lon 7.4V/4000 mAh battery
- Built-in lithium battery allows up to about 3 hours of operation
- Playback time on battery (AV input): approximately 5 hours
- Power supply: DC 9 V/2 A 100 ~ 240 V AC 50/60 Hz
- Power consumption Max. 10W
FEATURES
- Product size dimensions: (W*D *H) 123*204*45(mm)
- Net product weight: 0.6 kg
- Operating temperature: 0+45 ?
- Storage temperature: -10 ~ + 60 ?
- Humidity: 20~90%
