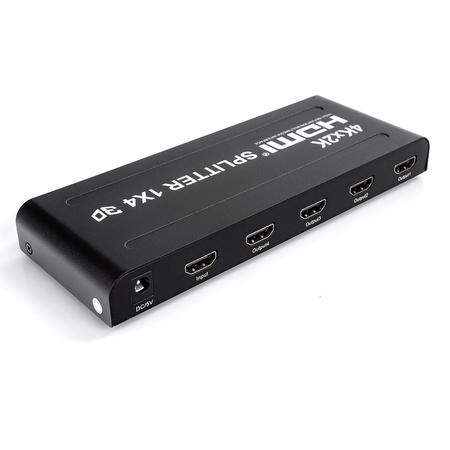

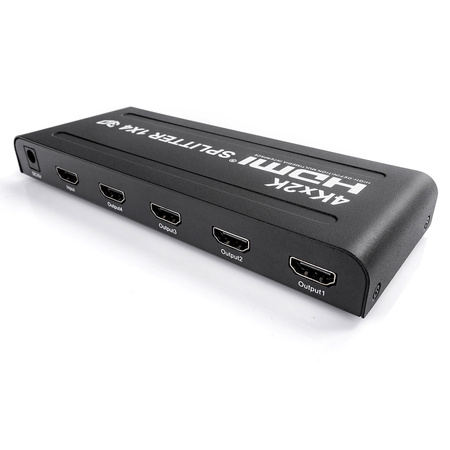

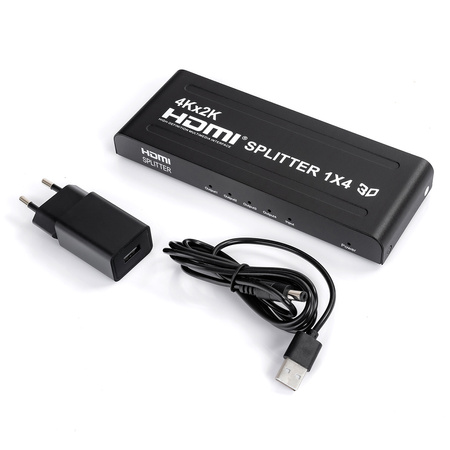

Spacetronik SPH-RS104V14 HDMI 1/4 splitter

HDMI 1x4 Splitter allows you to distribute HDMI signal from one source to four receivers (TVs, Monitors, etc.). The device transmits images in very high quality Ultra HD 4K and full 3D.

This product has the ability to buffer the signal as well as amplify it. It is ideal for conference rooms to distribute the signal from one source to four screens or monitors. The device is ideal for connecting an HD device (satellite receiver, DVD player, computer, console), to TV sets equipped with HDMI connectors.

Features:

- One HDMI input signal split to four HDMI devices
- Full HD, Full 3D support
- Support up to 4K 3840x2160 / 30Hz
- TMDS up to 600MHz
- Support Deep Color 30bit, 36bit
- Support Blue-Ray 24/50 / 60fs / HD-DVD / xvYCC
- Digital audio format DTS-HD / Dolby-TrueHD / DTS / Dolby-AC3 / DSD / HD (HBR)
- Signal retiming support
- Input support up to 12 meters AWG26 length of standard HDMI cable, output up to 20 meters AWG26 length of cable (with 4k resolution selected, input up to 8 meters, output up to 12 meters.
- No loss of quality


Specifications:

HDMI version	HDMI 1.4b
HDMI resolution	up to 4K - 3840x2160 / 30Hz
Color and video format	24/deep color 30bit,36bit,HD(HBR)
Audio format support	DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max. Bandwidth	600MHz
Max. bit rate	3.0Gbps
TMDS signal input/output	0.5~1.5V p-p(TTL)
DDC signal input / output	5V p-p(TTL)
Distance - input cable	(1080p resolution ) ?10m , (4K resolution ) ?8m standard AWG26 HDMI cable
Output - cable distance	(1080p resolution ) ?20m , (4K resolution ) ?12m standard AWG26 HDMI cable
Max. current	350mA
Operating temp	(-15 to +55?)
Operating humidity range	5 to 90% RH (non-condensing)
Dimensions ( L x W x H)	62x51x11 (mm)

Declaration of conformity >> HERE<<
