WSATJOHSS9659
LNB Wide Band/Universal satellite signal amplifier 4x SAT input/output + 1x DVB-T/T2/C Johansson 9659 AGC ASC
Johansson 9659 - dual satellite and terrestrial amplifier with AGC and ASCIdeal amplifier for multiswitch systems with cable/terrestrial path.
The amplifier optimizes satellite V/H (290-2400 MHz) and terrestrial (87-862 MHz) signals in real time.
Itis suitable for 2 Wide Band LNBs or 1 Quattro LNB.
It uses Automatic Gain Control (AGC) and Automatic Slope Control (ASC) for this purpose.
- Automatic gain control on all lines (V/H/cable) and automatic slope control on both satellite lines (V/H)
- DC input for amplifier and LNB (optional power supply (ref. 9933))
- Choice between Wide Band LNB (290 - 2400 MHz) and Universal LNB (950 - 2150 MHz)

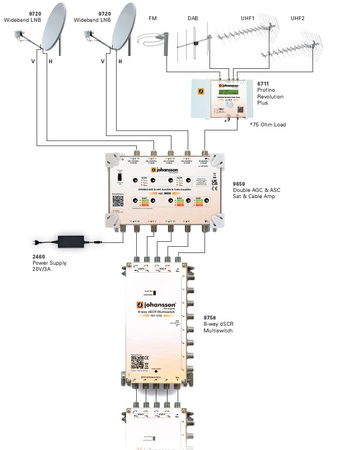

Installation diagram:

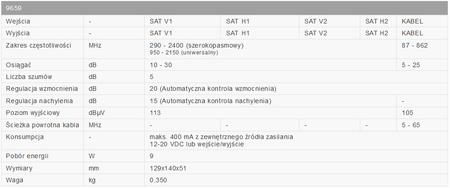

Technical specifications:
product features
List price
215,00 €/1pcs.
Brand
Entity responsible for this product in the EU
DMTrade Mikołaj TomaszewskiMore
ProducerDMTrade Mikołaj TomaszewskiAddress:
ul. Wiśniowa 36Postal code: 64-000City: KościanCountry: PolskaPhone number: +48 61 111 02 52E-mail: info@dmtrade.pl
Responsible entityDMTrade Mikołaj TomaszewskiAddress:
ul. Wiśniowa 36Postal code: 64-000City: KościanCountry: PolskaPhone number: +48 61 111 02 523E-mail: info@dmtrade.plDescription: DMTrade
Symbol
WSATJOHSS9659
Producer code
2096590000016
Warranty
EAN
2096590000016
