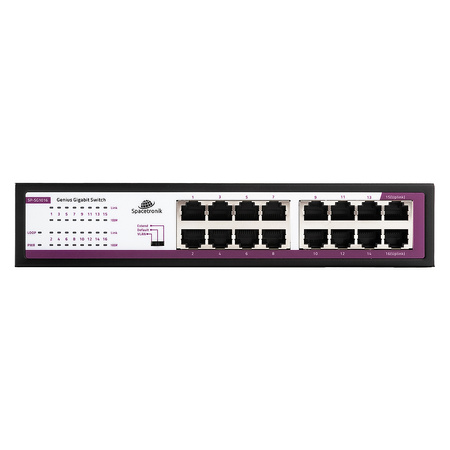

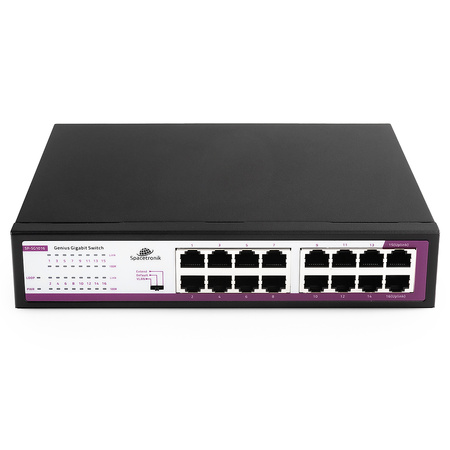

spacetronik 16x port 10/100/1000M SWITCH SP-SG1016

Spacetronik Switches - the best for splitting your Internet network

Powerful, rugged Ethernet switch for universal use

RJ-45 ports with auto-negotiation can ensure the transfer of large files, and are compatible with any 10/100/1000Mbps Ethernet devices. With non-blocking switching architecture, the product forwards and filters packets at full cabling speed for maximum throughput. It combines practicality and robust performance along with an aesthetically pleasing, rugged heat dissipation housing. It is an ideal product for elegant office and home environments.

• 16*10/100/1000M port
• Compliant with IEEE 802.3/u/ab/x standards
• Supports automatic port reversal (Auto MDI/MDIX)
• Handy, ideal for office and home applications
• Rugged metal housing that dissipates heat
• Intelligent switch with three speeds and one button, supporting VLAN mode, Normal mode and Extend mode
• Loop alarm support

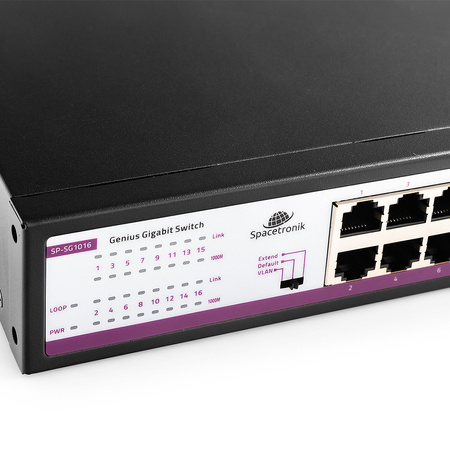

• Panel with LED indicators for easy status monitoring
• Mounting arms, power supply included

CE, FCC, RoHS certifications

This Ethernet switch has European CE certification, US FCC certification and meets ROHS directive standards, making it a fully tested, high-quality product that meets all global standards and norms.

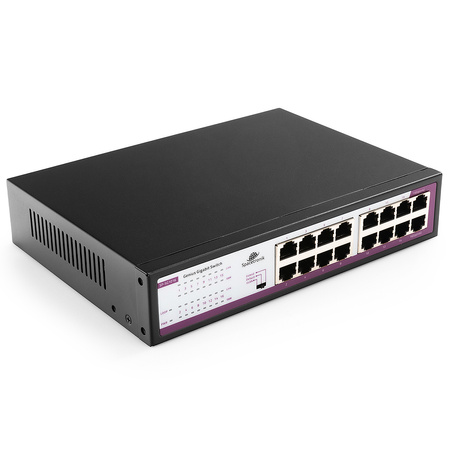

Metal housing

Durable, elegant metal housing provides excellent heat dissipation and damage resistance

Plug&Play technology

Easy to use switch - just plug in the device. No additional hardware or network configuration required.

Loop Alarm support

The switch's loop alarm function is used to detect situations in which network frames circulate endlessly between ports on the same device. Its purpose is to prevent network congestion by eliminating loops.

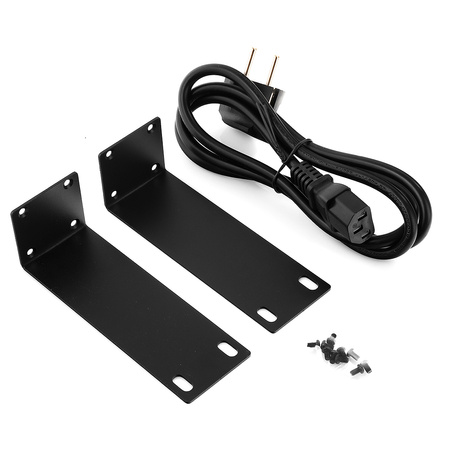

Mounting accessories

Rack mounting accessories and a power supply for the switch are included

Simple button to switch between modes

With one button on the chassis, you can switch between VLAN, Normal, Extend modes.

Technical specifications SP-SG1016

Voltage
Power input voltage - AC 100-240V
Power supply output voltage - 12V1A

Performance
Switching capacity - 32Gbps
Performance - 23.8Mpps
Packet buffer - 4Mbit
MAC address - 8K
Forwarding mode - Store and forward

Modes - VLAN, Normal, Extend
Network protocols - IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab
Network medium - 10BASE-T: Cat 3,4,5 or above UTP/STP (?100 m); 100BASE-TX: Cat5 or above UTP/STP (?100 m); 1000BASE-TX: Cat5 or above UTP/STP (?100 m)
LED indicators - PWR, Link

Dimensions
Productdimensions- 220*161*44mm; Package dimensions - 315*215*85mm
Net product weight - 0.9kg; Gross product weight - 1.24kg

Operating environment
Operating temperature: -10-50C
Storage temperature: -20-70C
Operating humidity: 10%~90% (non-condensing)
Storage humidity: 5%~95% (non-condensing)

Package contents - switch 1pc, manual 1pc, power supply 1pc, mounting arms 1pc.
Certifications - CE, FCC, RoHS
