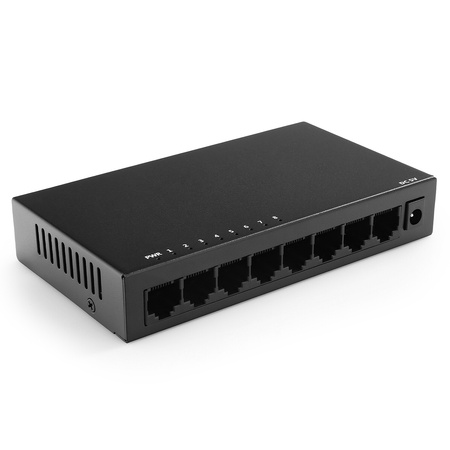

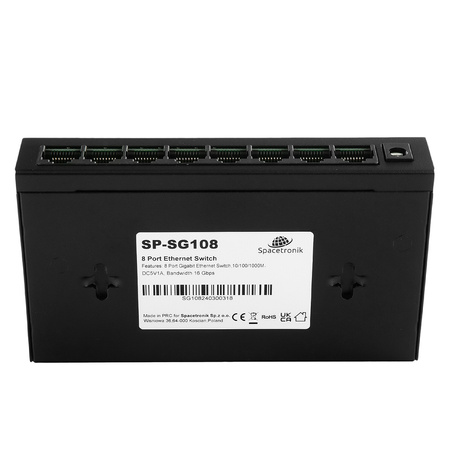

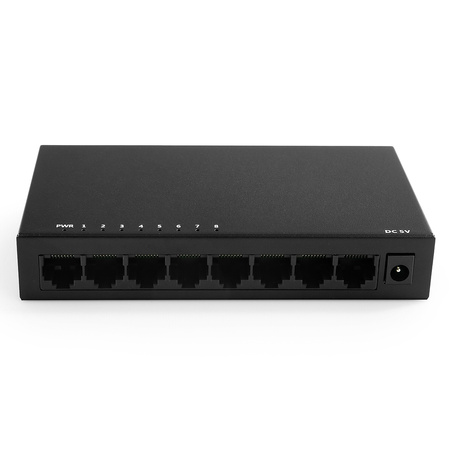

spacetronik 8x port 10/100/1000M SWITCH SP-SG108
Handy, efficient, ideal for a sleek office or home space
RJ-45 ports with auto-negotiation can ensure the transfer of large files, and can be compatible with any 10/100/1000Mbps Ethernet devices. With non-blocking switching architecture, the product forwards and filters packets at full cabling speed for maximum throughput. It combines practicality and robust performance along with a small size and aesthetically pleasing rugged heat dissipation housing. It is an ideal product for elegant office and home environments.

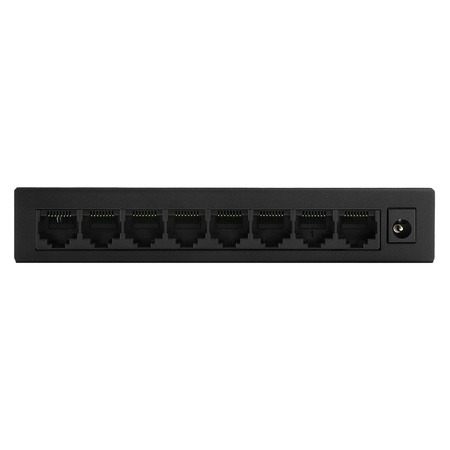

- 8*10/100/1000M port
- Compliant with IEEE 802.3/i/u/x/ad/az standards
- Supports automatic port reversal (Auto MDI/MDIX)
- LED indicators to provide status monitoring
- Handy, ideal for office and home applications
- Rugged metal housing to dissipate heat
CE, FCC, RoHS certifications
This Ethernet switch is certified by European CE, US FCC and meets ROHS directive standards, making it a fully tested, high-quality product that meets all global standards and norms.
Metal housing
Durable, elegant metal housing provides excellent heat dissipation and damage resistance
Plug&Play technology
Easy to use switch - just plug in the device. No additional hardware or network configuration required.
Technical specifications SP-SG108
Voltage
Power input voltage - DC 2.1
Input voltage switch - DC 5V1A
Performance
Switching capacity - 16Gbps
Performance - 11.9Mpps
Packet buffer - 4Mbit
MAC address - 8K
Forwarding mode - Store and forward
Network protocols - IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab
Network medium - 10BASE-T: Cat 3,4,5 or above UTP/STP (?100 m); 100BASE-TX: Cat5 or above UTP/STP (?100 m); 1000BASE-TX: Cat5 or above UTP/STP (?100 m)

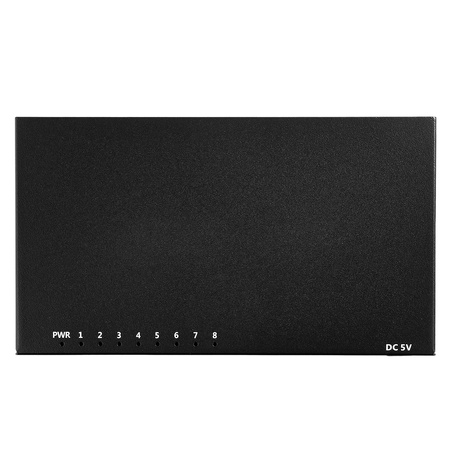

LED indicators - PWR, Link
Dimensions
Productdimensions- 138*78*25mm; Package dimensions - 175*120*63mm
Net product weight - 0.24kg; Gross product weight - 0.37kg
Operating environment
Operating temperature: -10-50C
Storage temperature: -20-70C
Operating humidity: 10%~90% (non-condensing)
Storage humidity: 5%~95% (non-condensing)
Package contents - switch 1pc, manual 1pc, power adapter 1pc.
Certifications - CE, FCC, RoHS
