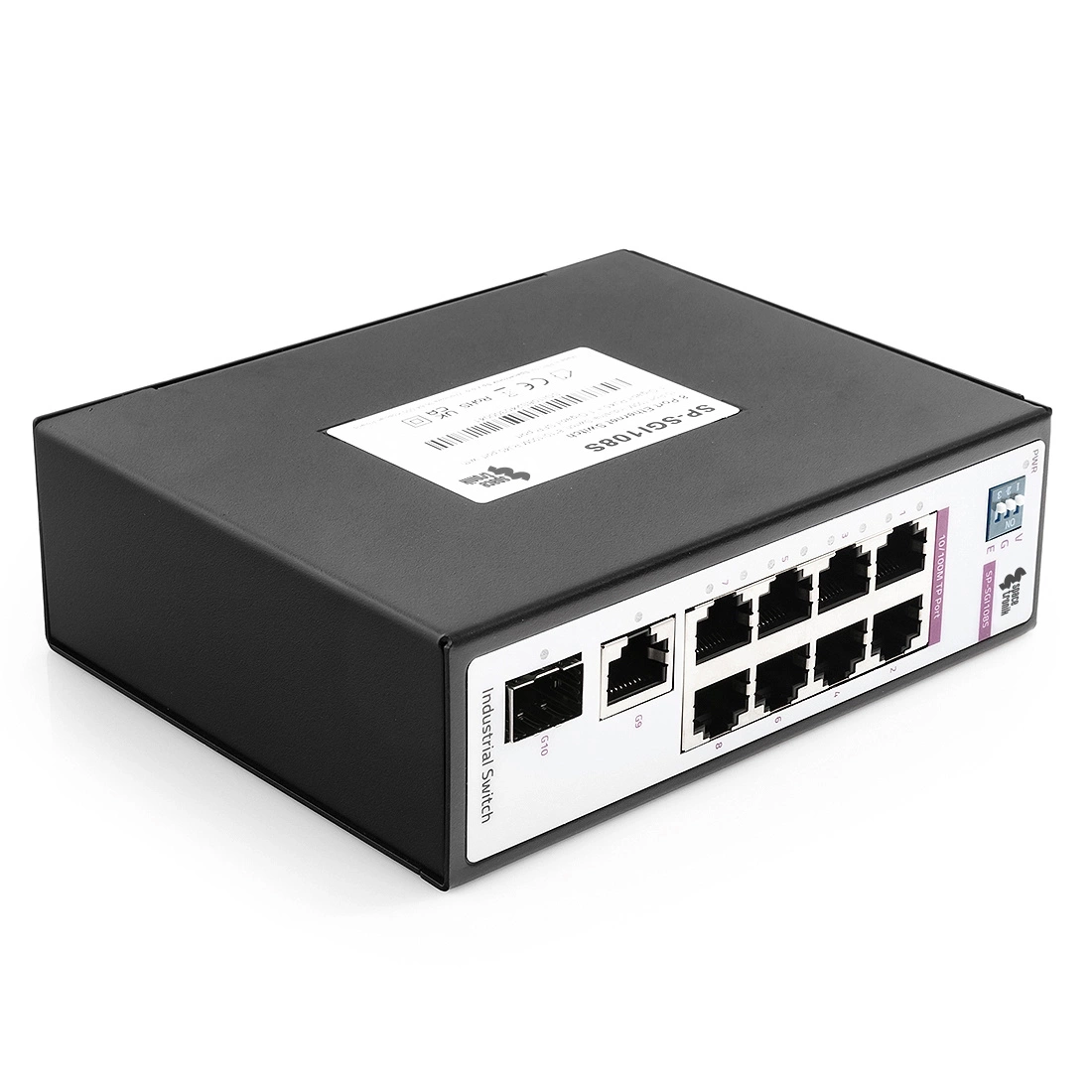

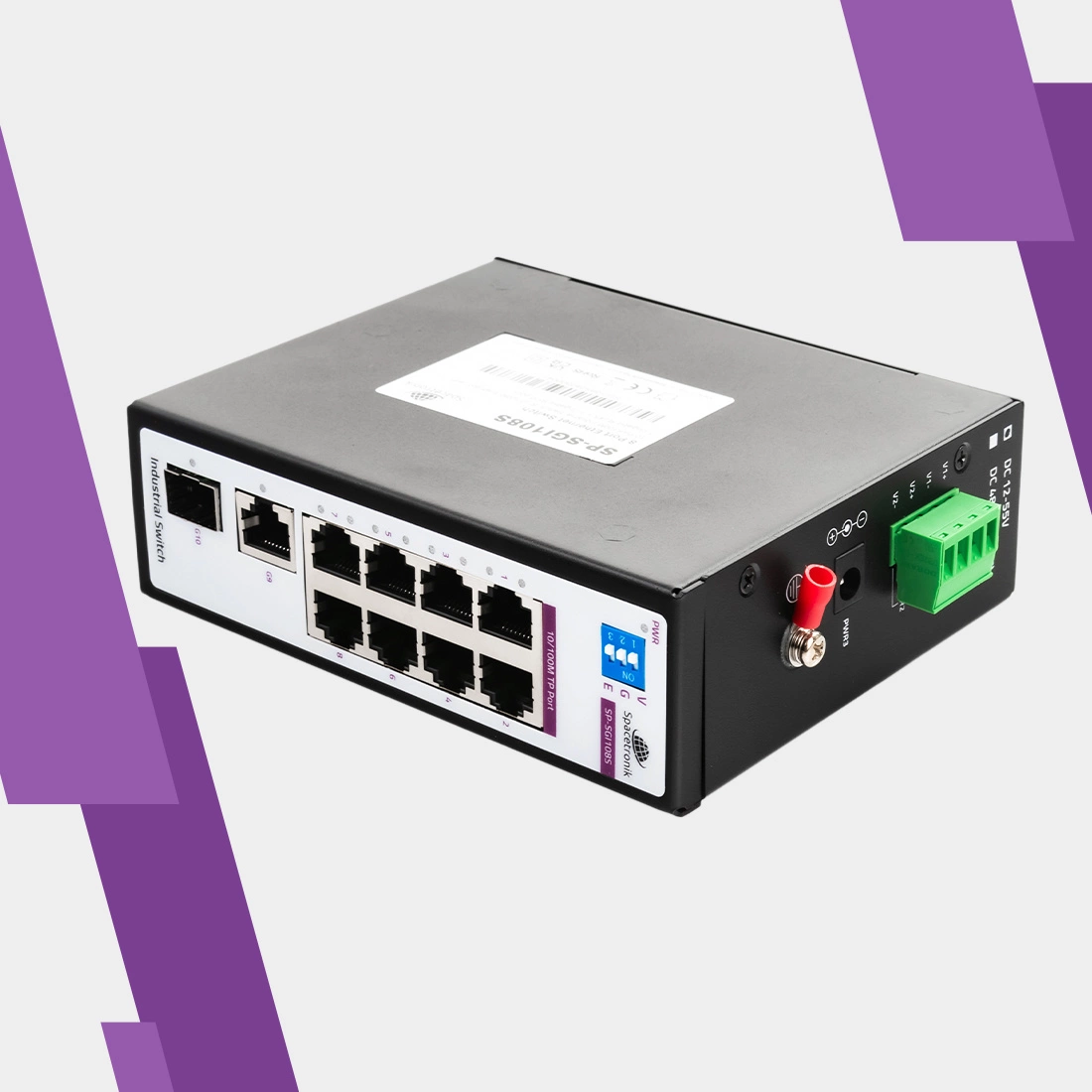

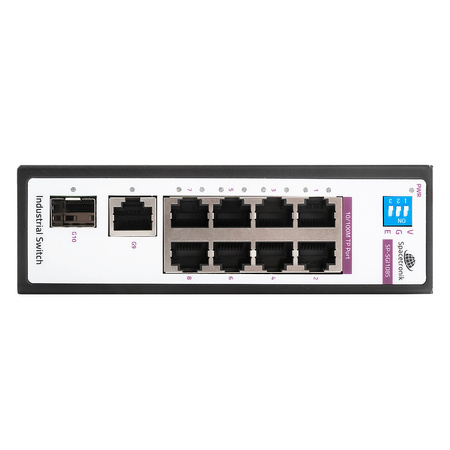

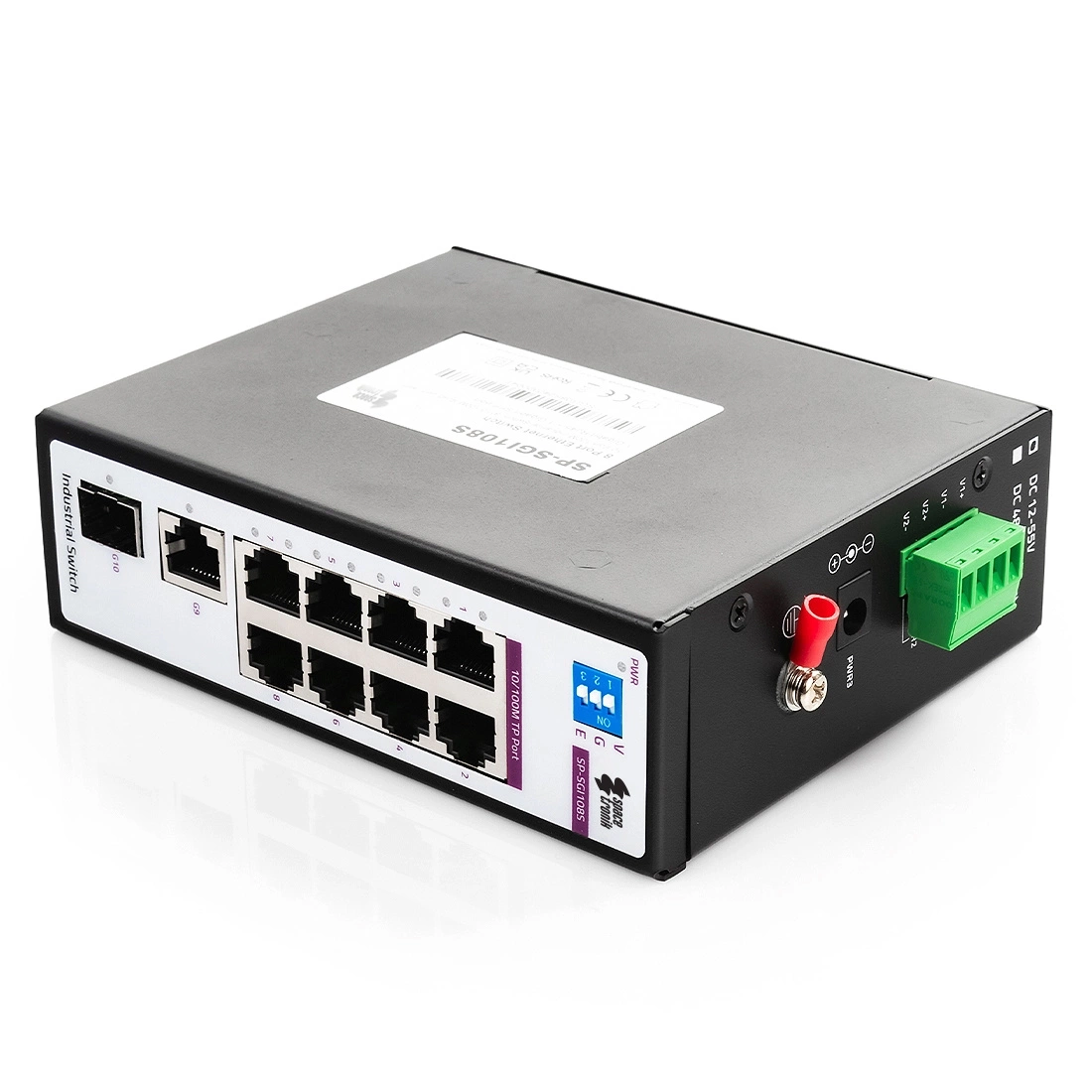

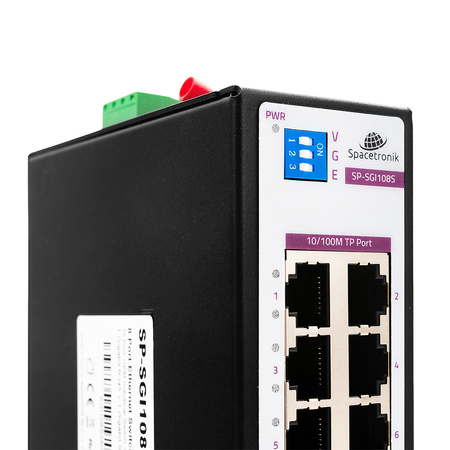

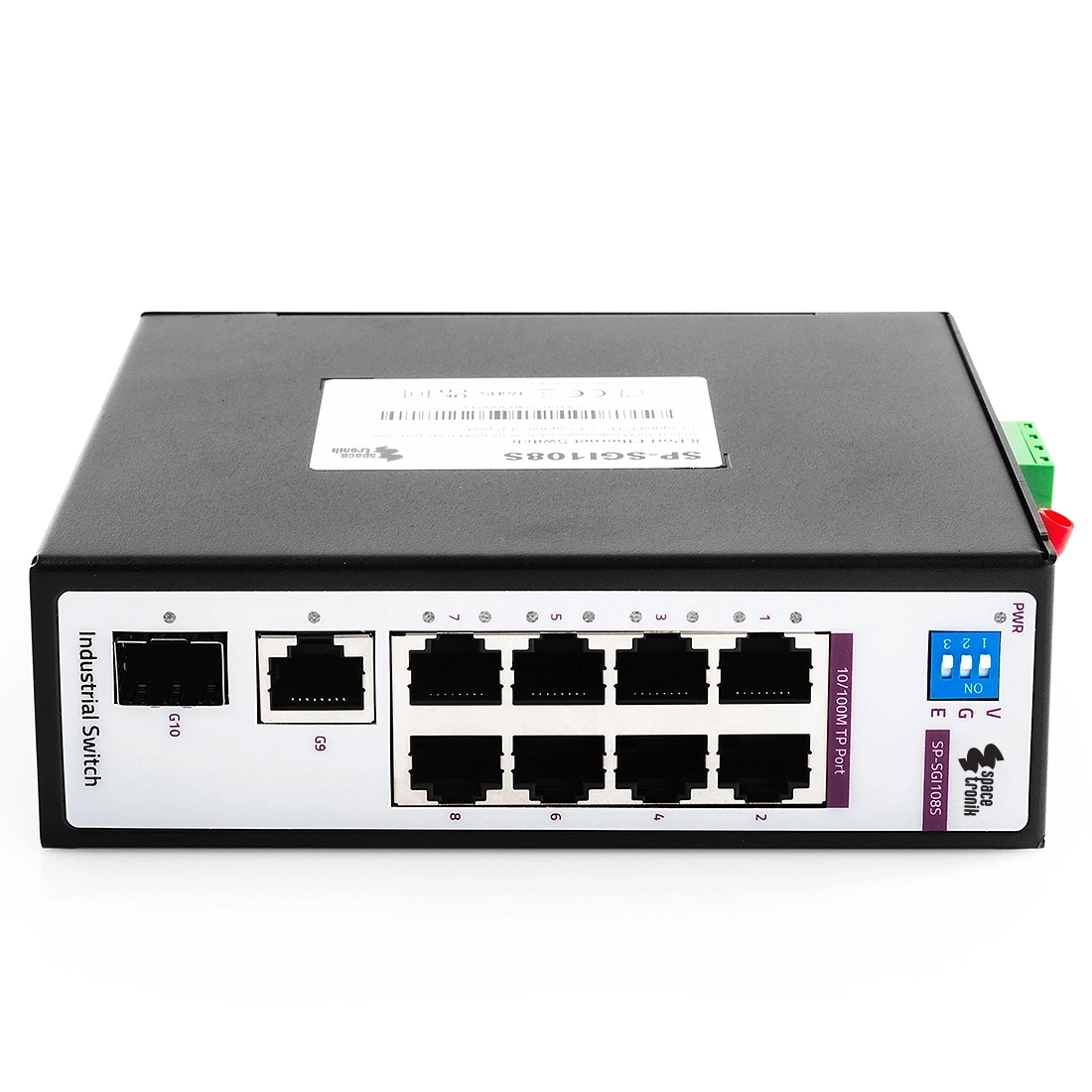

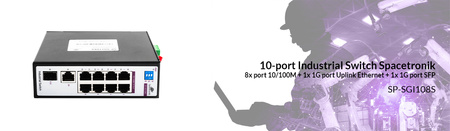

spacetronik 10-port industrial SWITCH 8x 10/100Mbps port + 1x Uplink Ethernet port RJ45 1Gbps + 1x SFP port 1Gbps SP-SGI108S
Spacetronik Switches - the best for splitting your internet network

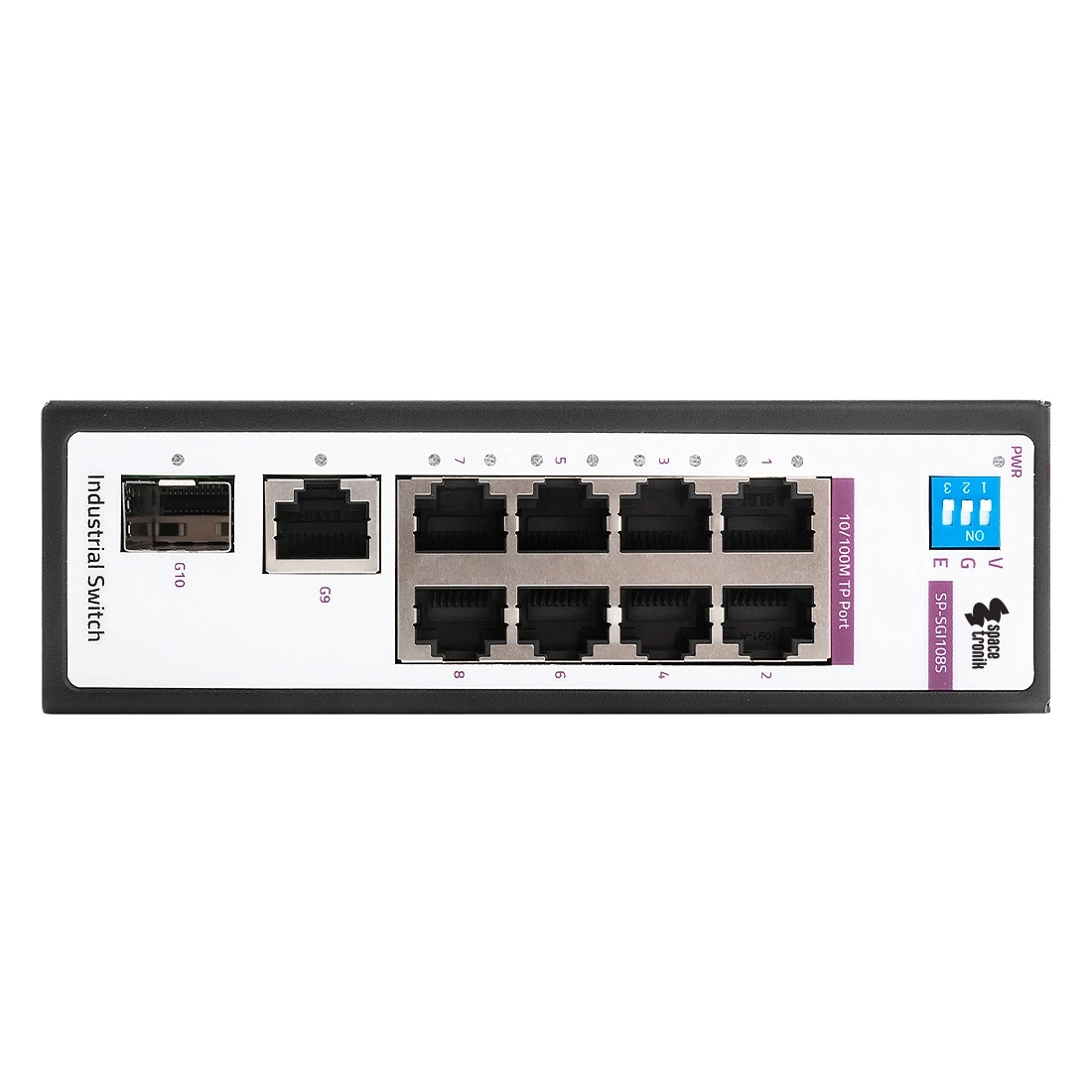

- 8*10/100M port + 1*1G Uplink RJ45 port + 1*1G SFP port
- Compliant with IEEE 802.3/IEEE 802.3u/ IEEE 802.3z standards
- Uplink Ethernet port supports adaptive speed of 1Gbps
- Supports automatic port inversion (Auto MDI/MDIX)
- Panel indicators monitor status and help analyze failures
- Smart switch with three speeds and one button, supporting VLAN mode, Normal mode and Extend mode
- Lightning surge: general mode 6KV, differential mode 2KV, ESD 15KV, contact 8KV
- Advanced IP40 protection rating

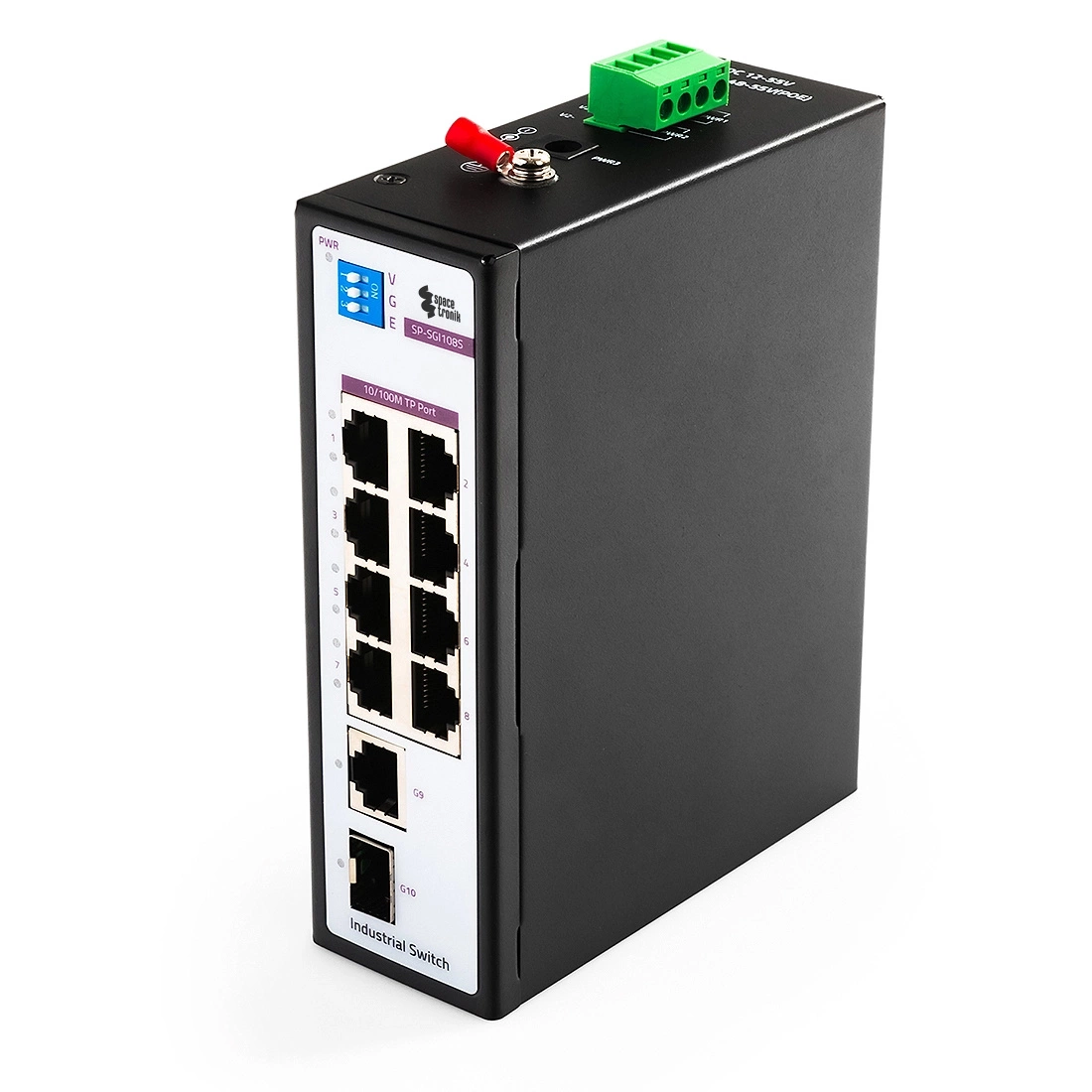

- DIN35 rail mounting possible
- Industrial design to withstand operating temperatures of -40 to 75 degrees Celsius

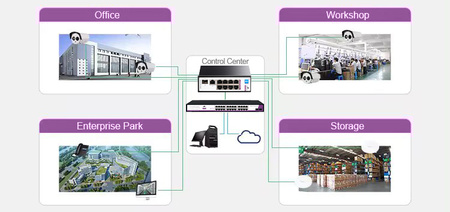

Application of Spacetronik industrial switches
Industrial switches are devices of reinforced construction, usually made of metal, designed specifically for use in harsh environments. They are indispensable where standard switches may be subject to rapid damage or even fail completely. Examples of where they are used include production halls, industrial facilities, warehouses, construction sites and other environments where conventional devices are not robust enough.
They feature a wide operating temperature range, capable of operating in extreme conditions, even from -40 to 75 degrees Celsius. In addition, they are resistant to dust and various atmospheric conditions, such as rain, snow or strong wind. Their robust construction provides protection against mechanical damage, such as falls, shock and vibration. In addition, they are less susceptible to voltage spikes.

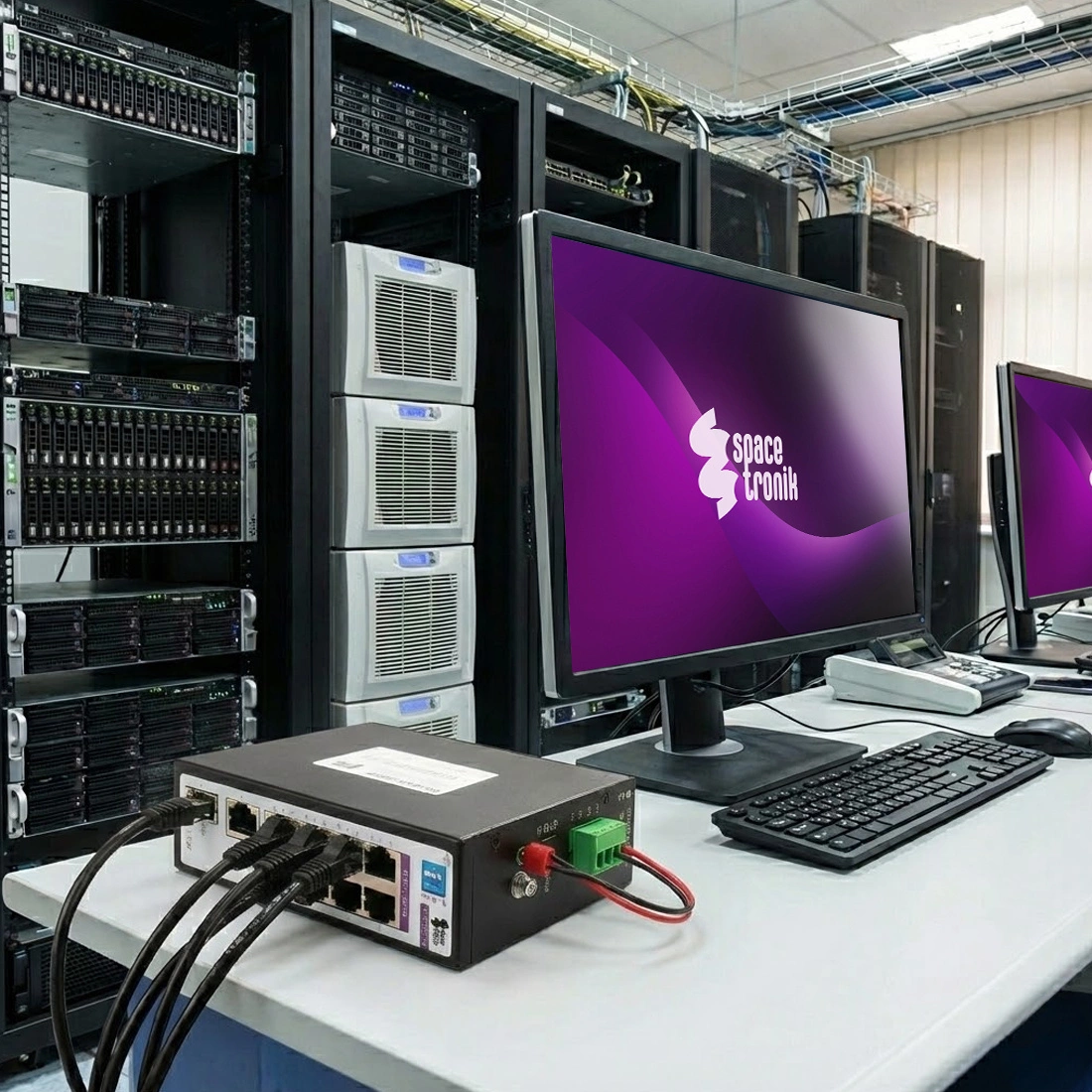

Industrial switches are often mounted on a DIN rail, especially in RACK cabinets in larger server rooms. This makes them easily accessible and integrates with existing infrastructure. Their robustness and resilience make them reliable solutions for professional industrial applications.
High performance
RJ-45 ports with auto-negotiation can ensure the transfer of large files, and are compatible with any 10/100Mbs Ethernet devices. With non-blocking switching architecture, the product forwards and filters packets at full cabling speed for maximum throughput.
It is a switch for all conditions - rugged housing, temperature resistance. Ideal for industrial applications.

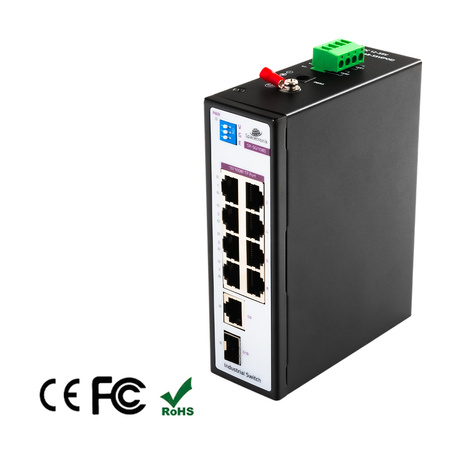

CE, FCC, RoHS certifications
This Ethernet switch is certified by the European CE, American FCC and meets the standards of the ROHS directive, making it a fully tested, high-quality product that meets all global standards and norms.
IP40 protection
The switch has an IP40 protection rating, which makes it ideal for most industrial applications.

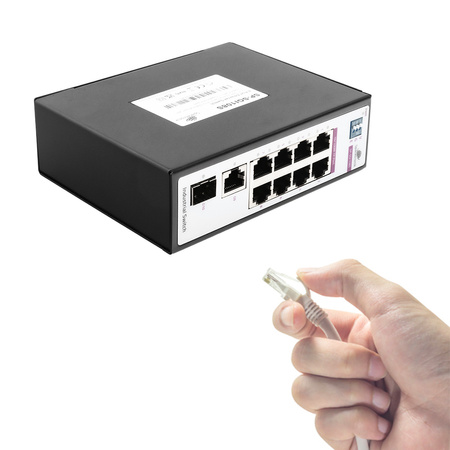

Plug&Play technology
Easy to use industrial switch - just plug in the device. No additional hardware or network configuration required.

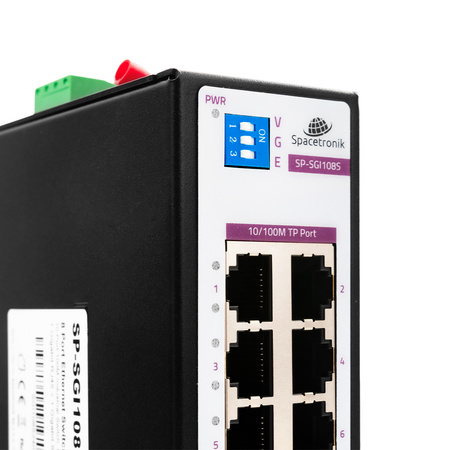

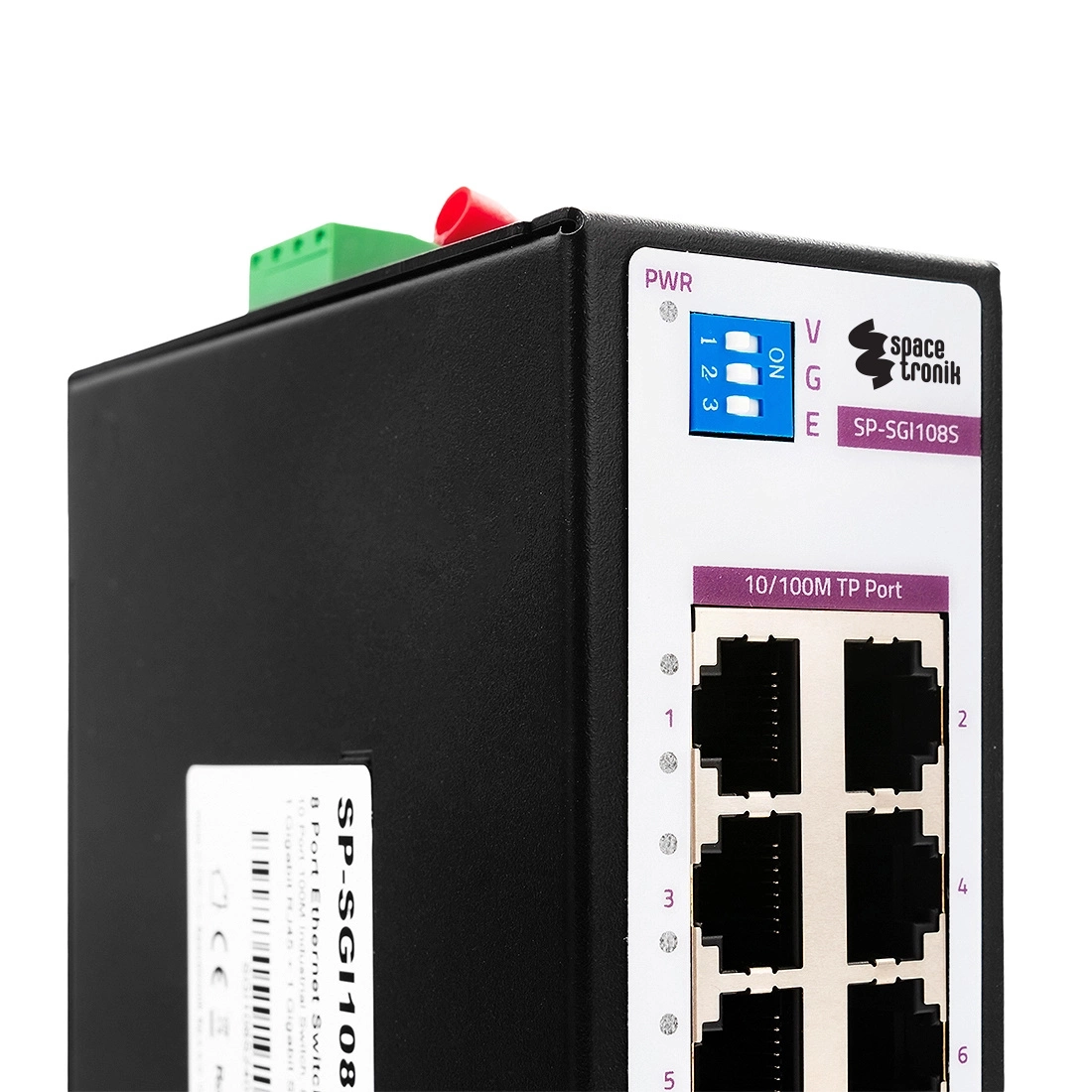

Simple button to switch between modes
With one button on the chassis you can switch between VLAN, Normal, Extend modes
Operation over a wide temperature range
The Ethernet switches are designed with wide temperature support to ensure reliable operation in temperatures from -40?C to 75?C. Made of high-quality metal housing, rugged and durable, with long service life, provides better heat dissipation, suitable for most environments in industrial applications.
Technical Specifications SP-SGI108S
Voltage
Power input voltage - DC 12~55V

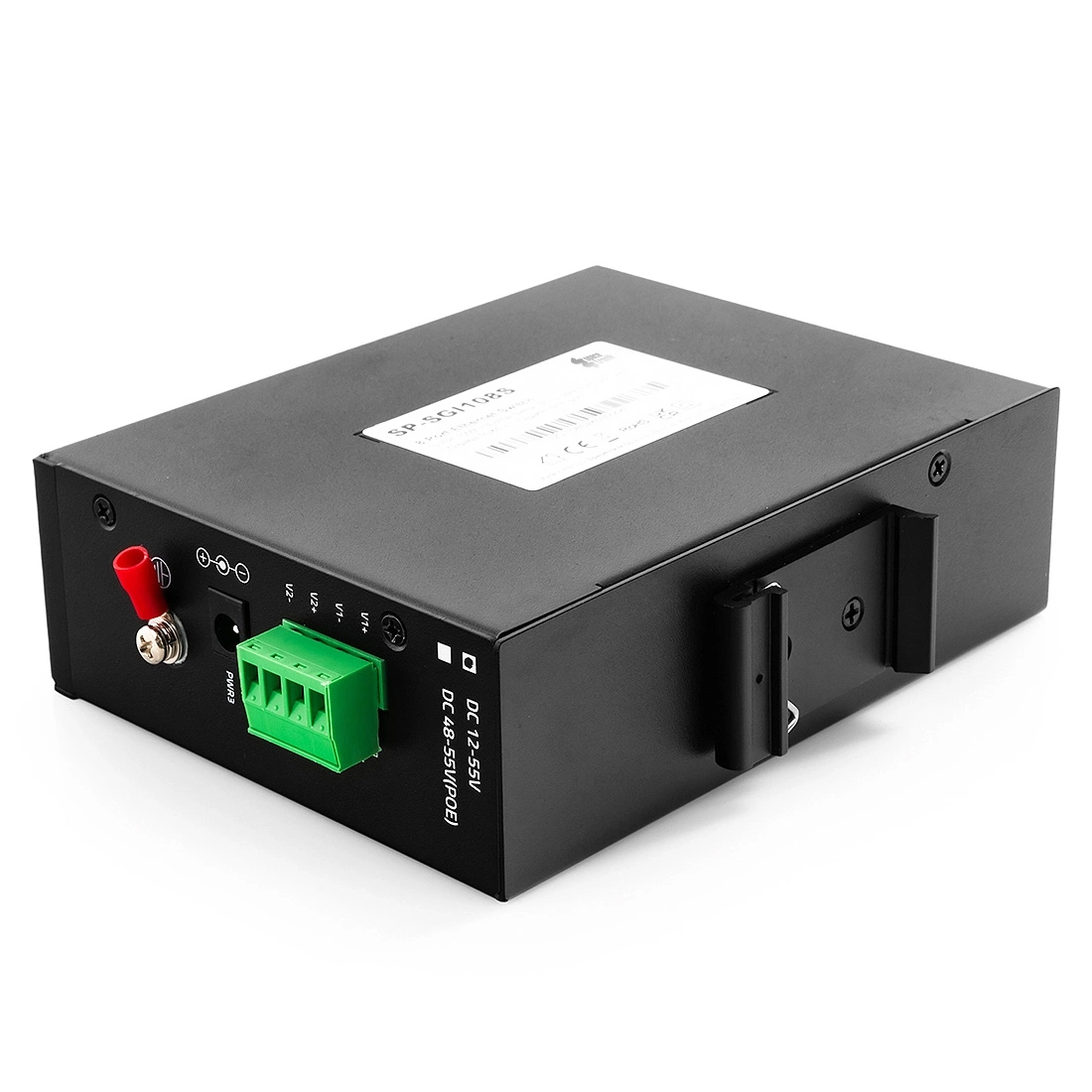

Power pins - 4 PIN industrial terminal (redundant V1+V1-, V2+V2-) / DC 2.1 (DC 2.1 cannot be used together with V1 and V2)
Performance
Switching capacity - 5.6Gbps
Performance - 4.166Mpps
MAC Address - 1K
Jumbo Frame - 9.6B
Transmission mode - Store and forward
MTBF - 100000h
Modes - VLAN, Normal, Extend
Network Protocols -IEEE802.3/u/z
Network medium - 10BASE-T: Cat 3,4,5 or above UTP/STP (?100m); 100BASE-TX: Cat5 or above UTP/STP (?100 m); 1000BASE-TX: Cat5 or above UTP (?100 m)
LED indicators - PWR, Link
Industry standards - EMI: FCC Part 15, CISPR (EN55022) class A, EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT), EN61000-4-5 (Surge)
Optical Medium - Multimode fiber: 850nm, 1310nm transmission distance: 550m/2Km; Single-mode fiber: 1310nm, 1550nm transmission distance: 20/40/60/80/100/120Km
IP protection - IP40
Dimensions
Product dimension - 138*108*44mm; Package dimension - 245*190*60mm
Net product weight - 0.646kg; Gross product weight - 0.781kg
Operating environment
Operating temperature: -40-75C
Storage temperature: -40-85C
Operating humidity: 10%~90% (non-condensing)
Storage Humidity: 5%~95% (non-condensing)
Package contents - industrial switch 1pc, manual 1pc, certificate 1pc, mounting arms 1pc.
Certifications - CE, FCC, RoHS
