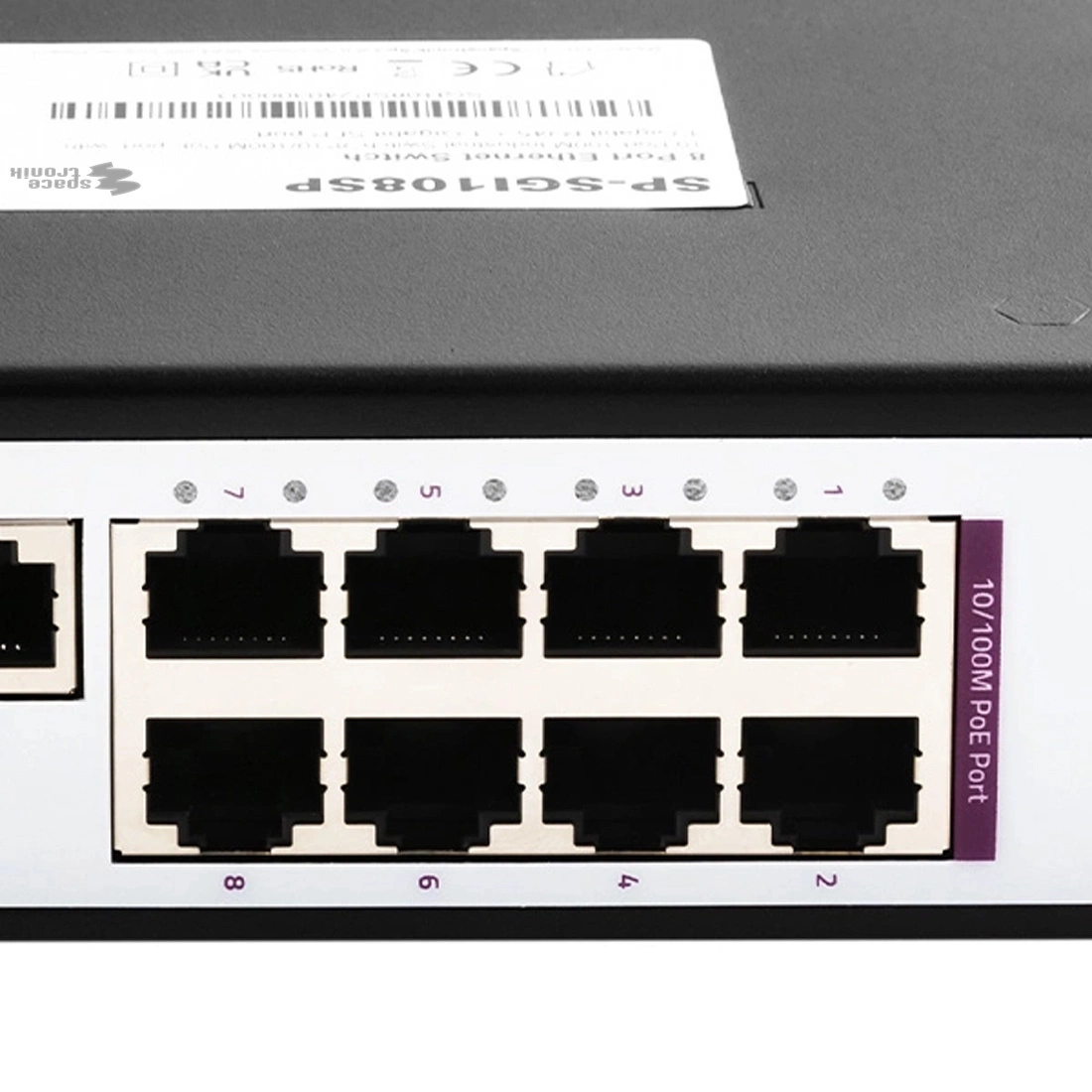

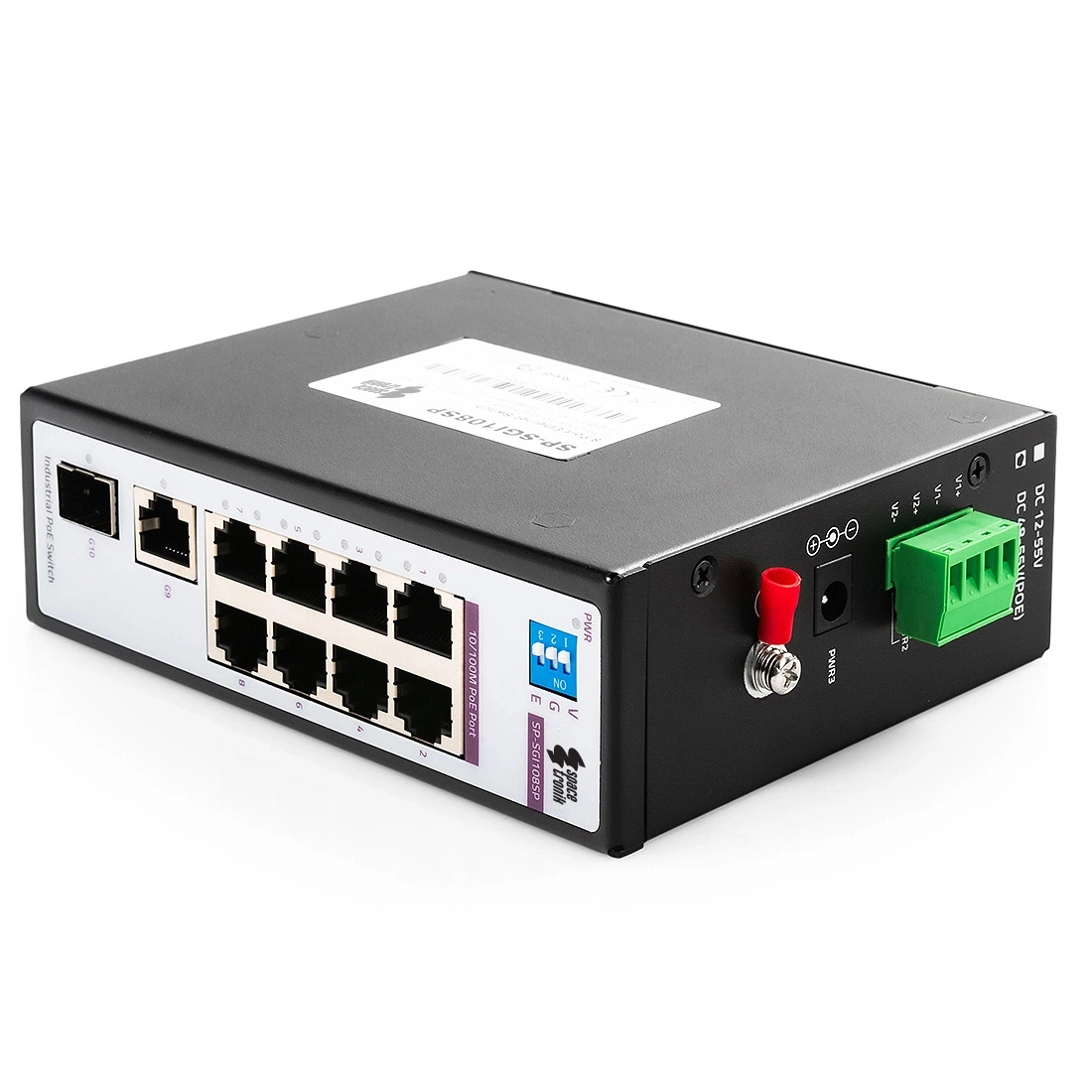

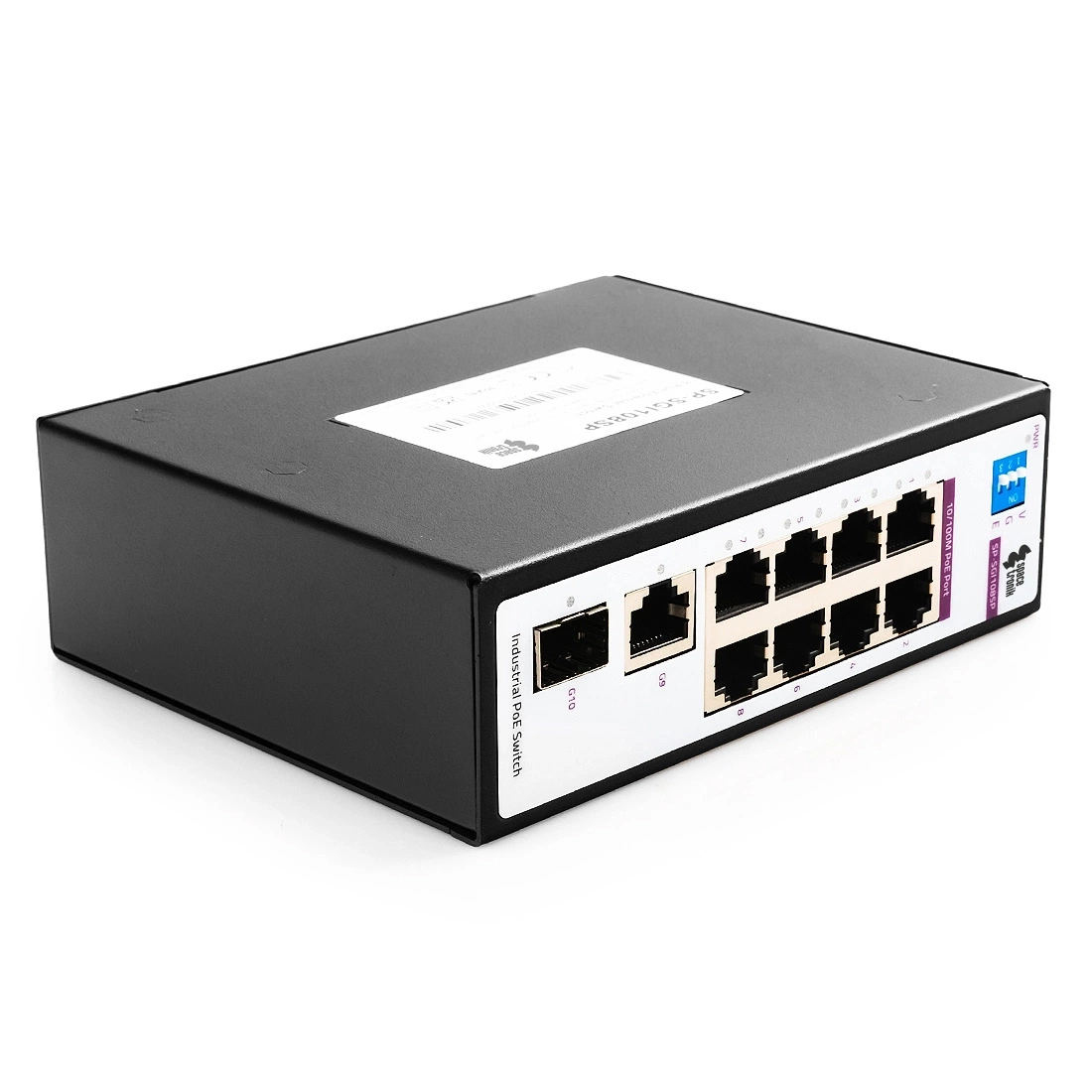

spacetronik 10-Port SWITCH 8x 10/100Mbps POE port + 1x 1Gbps RJ45 Uplink Ethernet port + 1x 1Gbps SFP port SP-SGI108SP
- 8*10/100M POE ports + 1*1G Uplink RJ45 port + 1*1G SFP port
- Compliant with IEEE 802.3/IEEE 802.3u/ IEEE 802.3z standards
- Ethernet port supports adaptive speed of 1Gbps
- Support for Watchdog function
- Supports automatic port inversion (Auto MDI/MDIX)

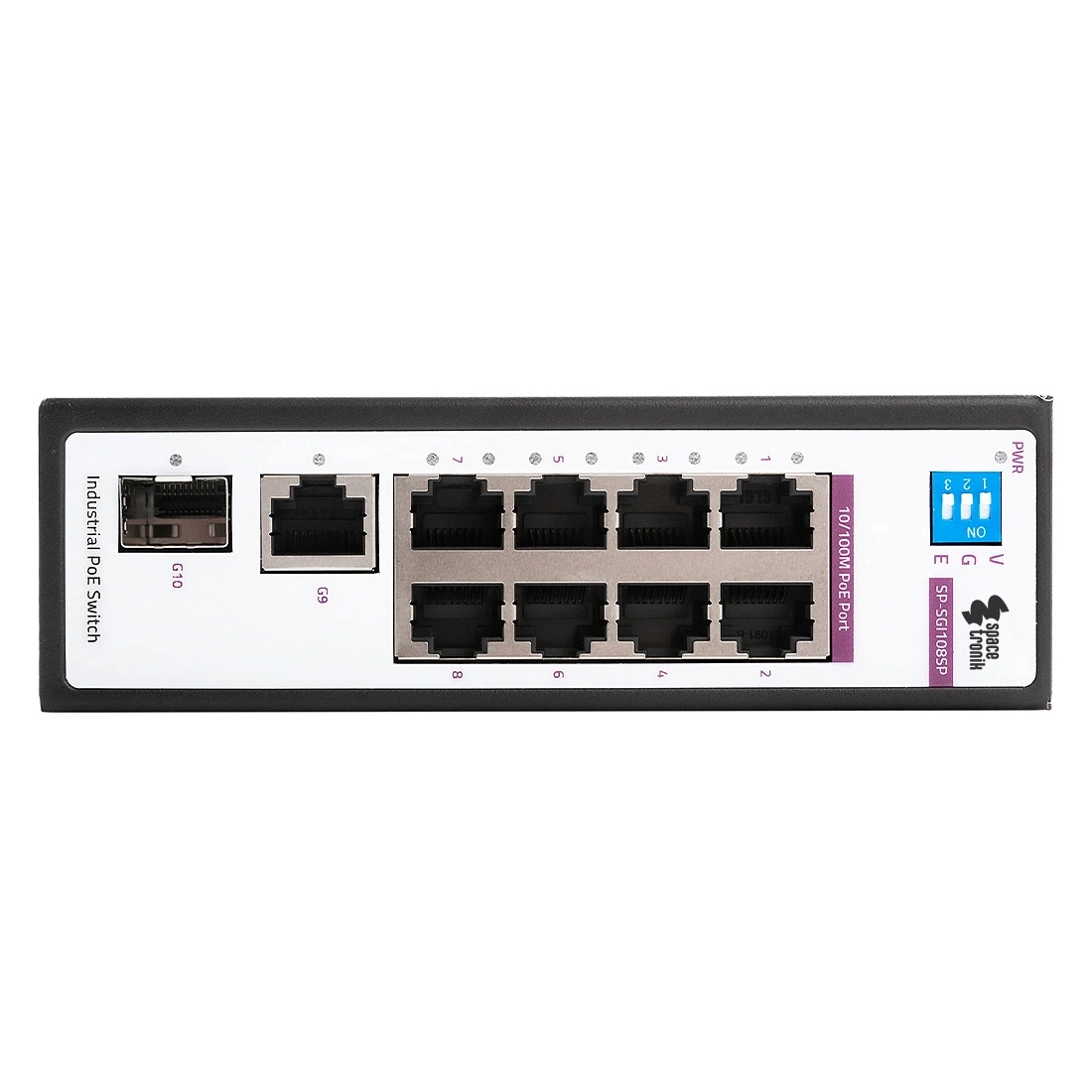

- Panel indicators monitor status and help analyze failures
- Smart switch with three speeds and one button, supporting VLAN mode, Normal mode and Extend mode
- Lightning surge: general mode 6KV, differential mode 2KV, ESD 15KV, contact 8KV
- Advanced IP40 protection rating

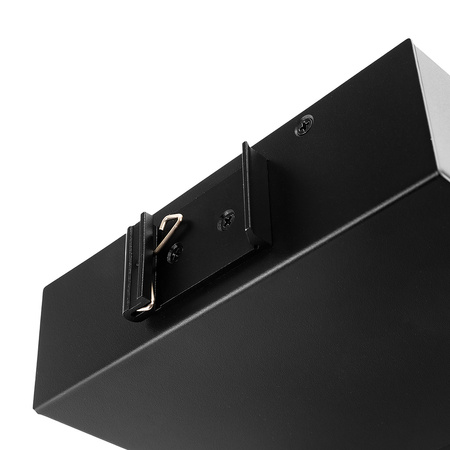

- DIN35 rail mounting possible
- Industrial design to withstand operating temperatures of -40 to 75 degrees Celsius
Spacetronik PoE switch applications
- Metro-optical broadband network:
Data network operators such as telecommunications, cable TV and network system integration, etc.
- Broadband private network
Suitable for financial, government, oil, railroad, electric power, public security, transportation, education and other industries.
- Multimedia transmission
Integrated video, voice and data transmission, suitable for remote teaching, conference television, video.
- Real-time monitoring
Simultaneous transmission of control signals, images and data in real time.
- Resistant to harsh environments
Suitable for networking in harsh environments with strong electromagnetic interference and long distances.
Power over Ethernet PoE - what is it?
Power over Ethernet (PoE for short) is a technology for transmitting power over an Ethernet cable. This allows us to simultaneously power the device and provide information exchange. PoE technology is particularly popular for IP cameras, VoIP phones, Internet access points (Access Point) and POS terminals. Network devices using PoE are convenient to use, which makes them well-liked by installers. Taking a surveillance network, for example - normally one would have to pull a separate power and transmission cable for each camera. Here we can use a switch that both powers the devices and transmits information from them.
High performance
RJ-45 ports with auto-negotiation can ensure the transfer of large files, and are compatible with any 10/100Mbs Ethernet devices. Thanks to the non-blocking switching architecture, the product forwards and filters packets at full cabling speed for maximum throughput.
It is a switch for all conditions - rugged housing, temperature resistance. Ideal for industrial applications.

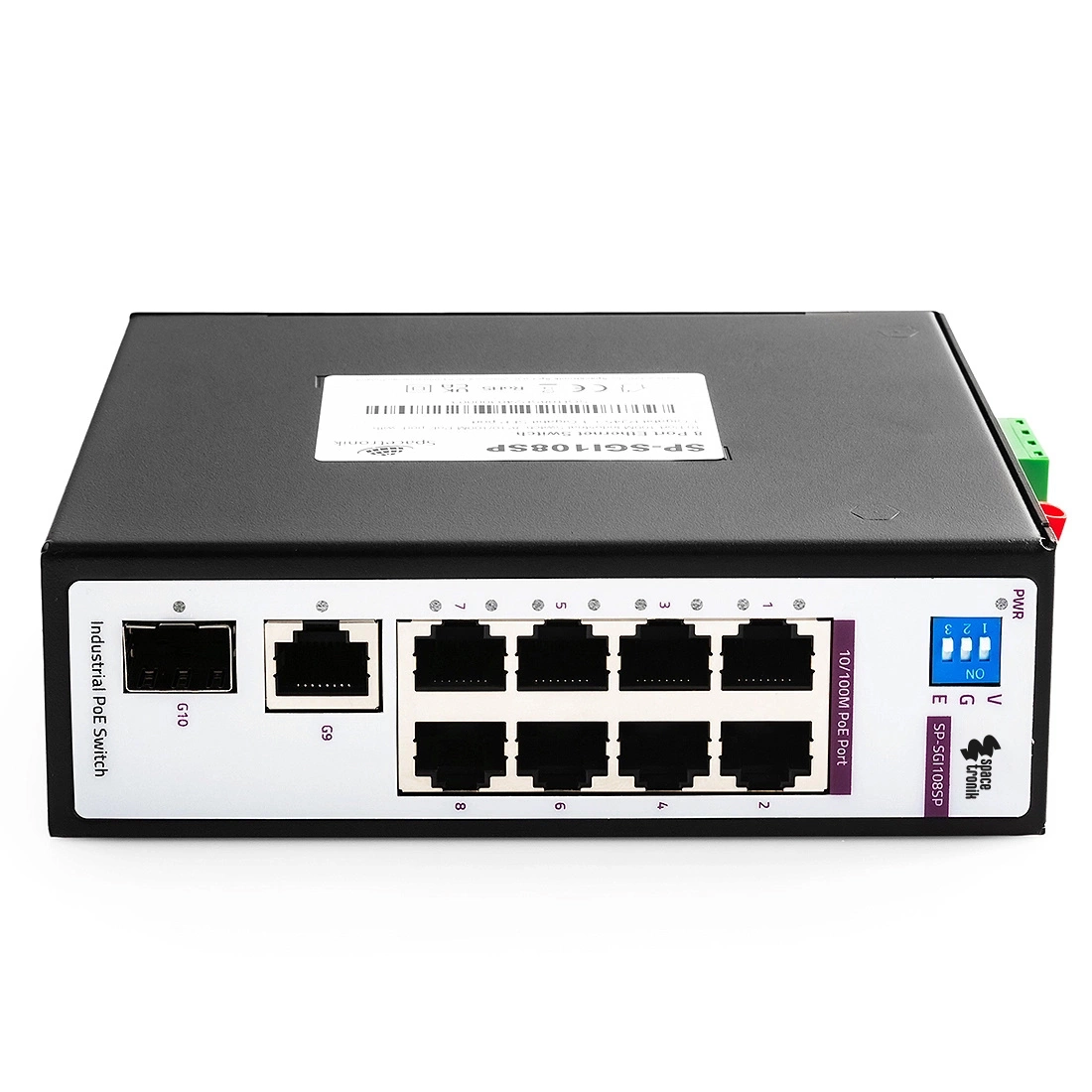

Simple button to switch between modes
With one button on the chassis you can switch between VLAN, Normal, Extend modes
Power your devices with POE+
Supports a total PoE power of up to 30W per port. Automatically detects the power device, so it won't burn a non-standard PoE device or a normal PoE switch. Compatible with POE standard IEEE802.3af/at.

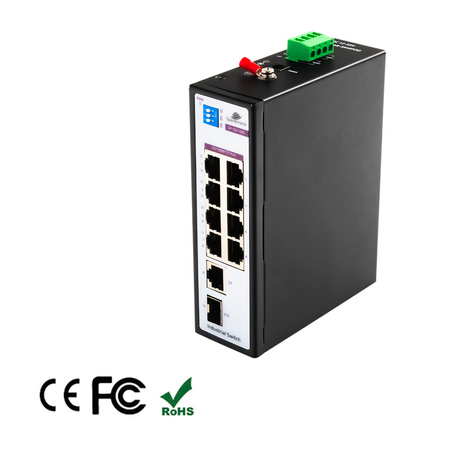

CE, FCC, RoHS certifications
This Ethernet switch has European CE certification, US FCC certification, and meets ROHS directive standards, making it a fully tested quality product that meets all global standards and norms.
IP40 protection
The switch has an IP40 protection rating, which makes it ideal for most industrial applications.
Plug&Play technology

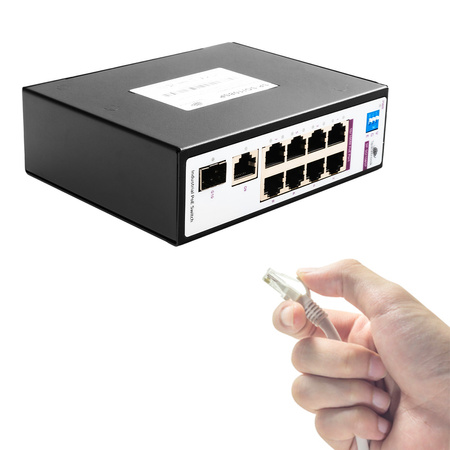

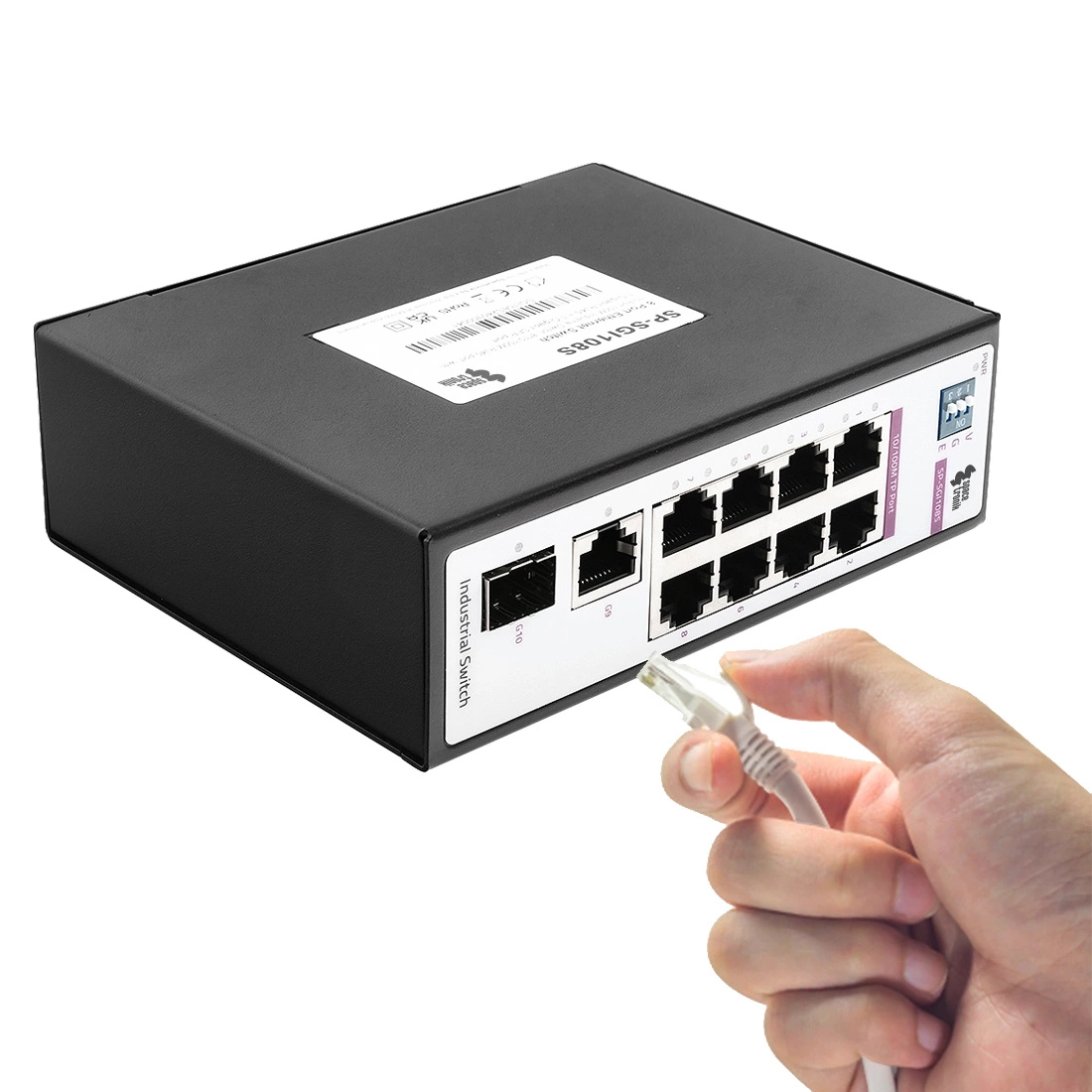

Easy to use industrial switch - just plug in the device. No additional hardware or network configuration required.

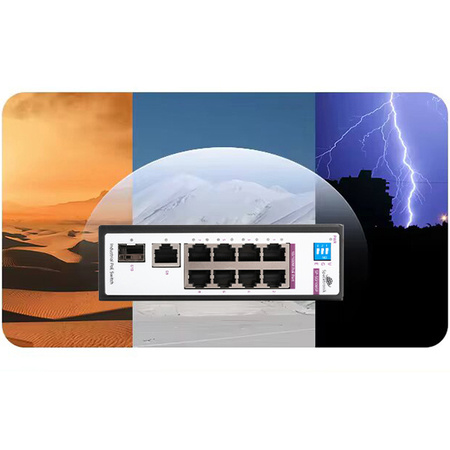

Operation over a wide temperature range
The Ethernet switches are designed with wide temperature support to ensure reliable operation in temperatures from -40?C to 75?C. Made of high-quality metal housing, rugged and durable, with long service life, provides better heat dissipation, suitable for most environments in industrial applications.
Technical Specifications SP-SGI108SP
Voltage
Power input voltage - DC 48~55V

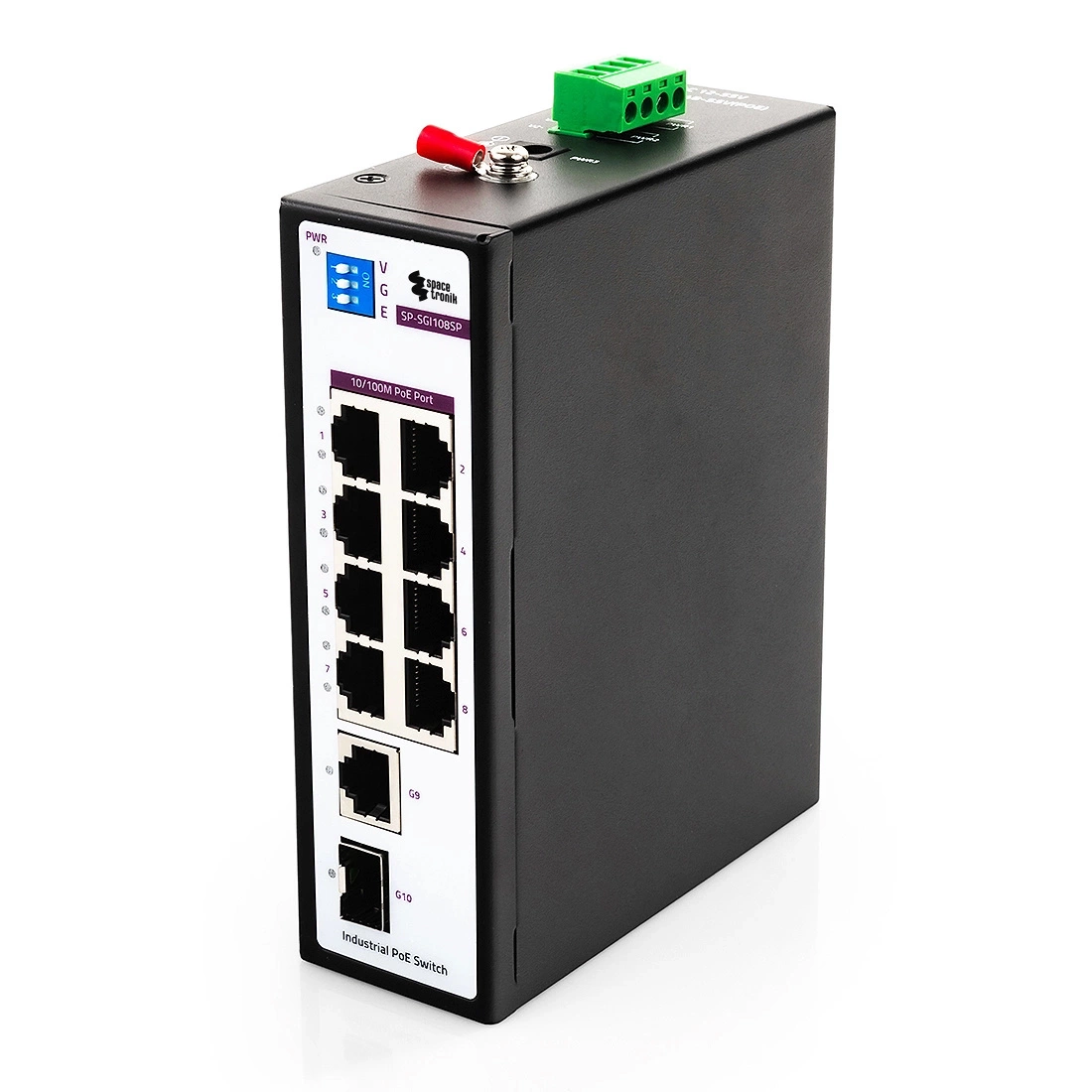

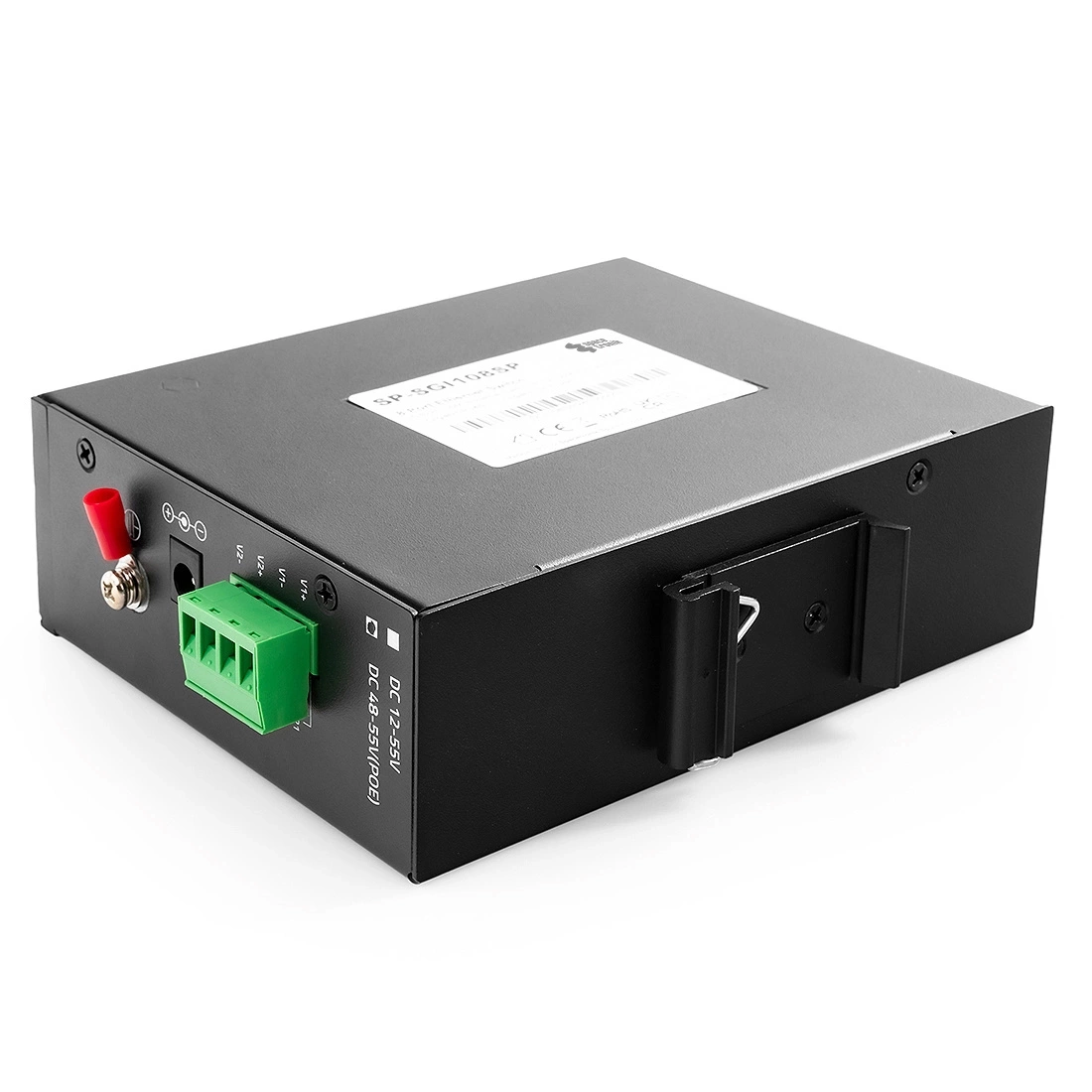

Power pins - 4 PIN industrial terminal (redundant V1+V1-, V2+V2-) / DC 2.1 (DC 2.1 cannot be used together with V1 and V2)
Performance
Switching capacity - 5.6Gbps
Performance - 4.166Mpps
MAC Address - 8K
Jumbo Frame - 9.6B
Transfer mode - Store and forward
MTBF - 100000h
PoE
PoE standard: IEEE802.3af /IEEE802.3at
Single port: 15.4W (IEEE 802.3af), 30W (IEEE 802.3at)
PoE compatibility: IEEE 802.3af/at self-adaptive
PoE port output voltage: DC 48-55V
PoE power pins: 1/2+ ; 3/6-
Modes - VLAN, Normal, Extend
Network protocols -IEEE802.3/u/z
Network medium - 10BASE-T: Cat 3,4,5 or above UTP/STP (?100 m); 100BASE-TX: Cat5 or above UTP/STP (?100 m); 1000BASE-TX: Cat5 or above UTP (?100 m)
LED indicators - PWR, Link
Industry standards - EMI: FCC Part 15, CISPR (EN55022) class A, EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT), EN61000-4-5 (Surge)
Optical Medium - Multimode fiber: 850nm, 1310nm transmission distance: 550m/2Km; Single-mode fiber: 1310nm, 1550nm transmission distance: 20/40/60/80/100/120Km
IP protection - IP40
Dimensions
Product dimension - 138*108*44mm; Package dimension - 245*190*60mm
Net product weight - 0.646kg; Gross product weight - 0.781kg
Operating environment
Operating temperature: -40-75C
Storage temperature: -40-85C
Operating humidity: 10%~90% (non-condensing)
Storage Humidity: 5%~95% (non-condensing)
Package contents - industrial switch 1pc, manual 1pc, certificate 1pc, mounting arms 1pc.
Certifications - CE, FCC, RoHS
