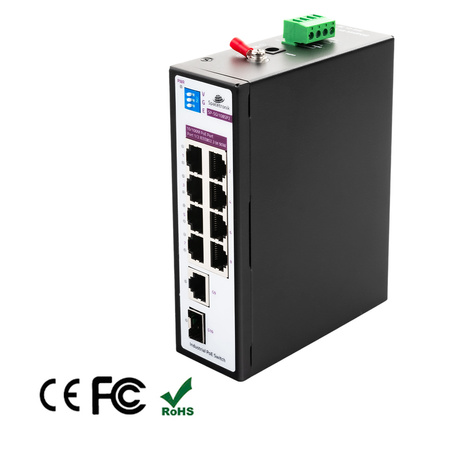

  • Spacetronik 100Mbps industrial POE switch 8x ports with POE 15.4/30W + 1x RJ45 1Gbps Uplink port + 1 SFP 1Gbps port. PoE port 1 and 2 supports BT90W. Aluminum rugged outdoor enclosure with DIN rail mount. Operating temperature from -40 to 75 °C. IP40.
Porty 90W
70,20 €
incl. VAT / pcs.
Regular price / pcs.
of
Szybkie zakupy 1-Click (bez rejestracji)
You can also buy using:
Product available in very large quantities
Product available in very large quantities
14 days for easy returns
Safe shopping
Product sold out
You will receive an email notification from us when the product is available again.
Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Contact details entered above are not used to send newsletters or other advertisements. When you sign up to be notified, you hereby agree to receive only a one-time notification of a product re-availability.

spacetronik 10-port SWITCH 8x 10/100Mbps POE port (including 2x 90W port) + 1x Uplink Ethernet port RJ45 1Gbps + 1x SFP port 1Gbps SP-SGI108SP2

Spacetronik Switches - the best for splitting your Internet network

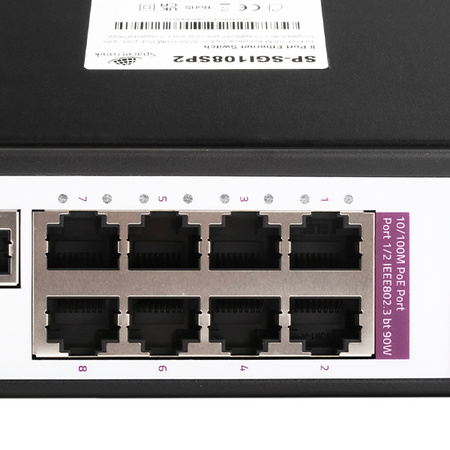

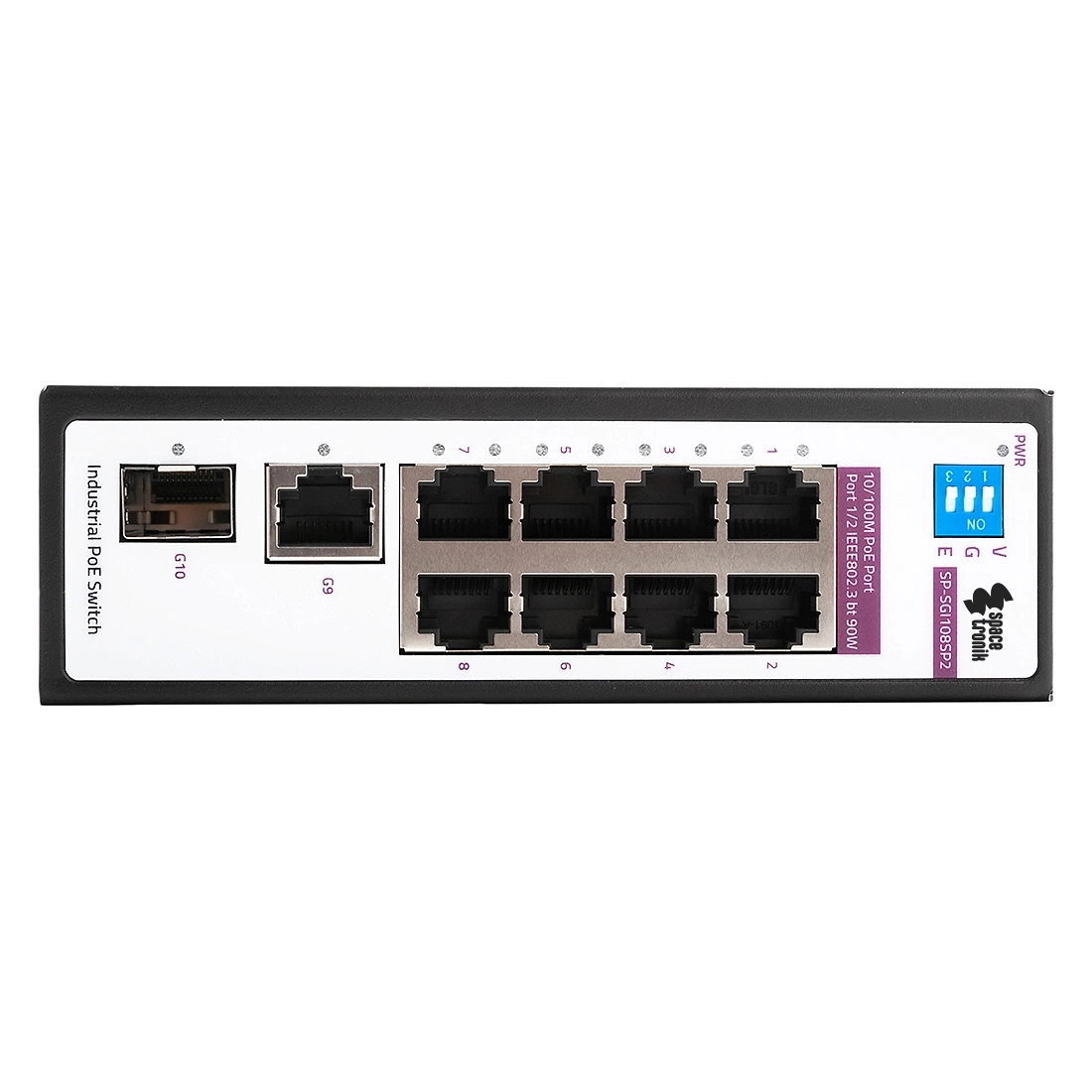

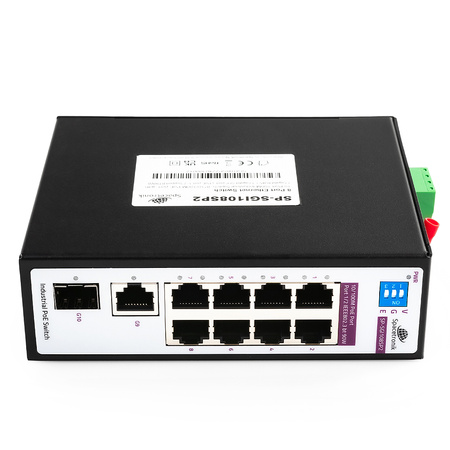

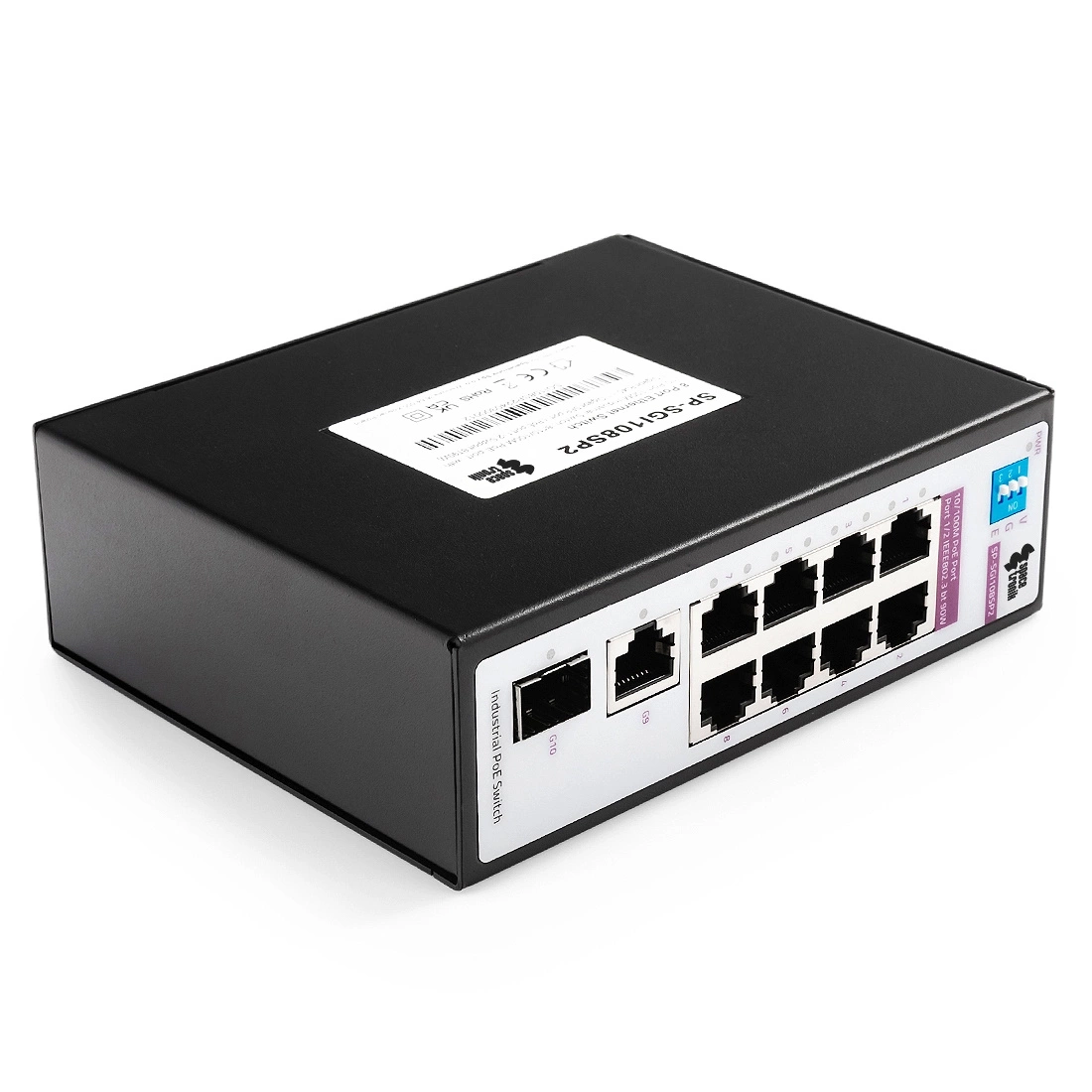

  • 8*10/100M POE ports (port 1 and 2 support up to 90W bt) + 1*1G Uplink RJ45 port + 1*1G SFP port
  • Compliant with IEEE 802.3/IEEE 802.3u/ IEEE 802.3z standards
  • Ethernet port supports adaptive speed of 1Gbps
  • Supports automatic port inversion (Auto MDI/MDIX)
  • Panel indicators monitor status and help analyze failures
  • Smart switch with three speeds and one button, supporting VLAN mode, Normal mode and Extend mode
  • Lightning surge: general mode 6KV, differential mode 2KV, ESD 15KV, contact 8KV
  • Advanced IP40 protection rating

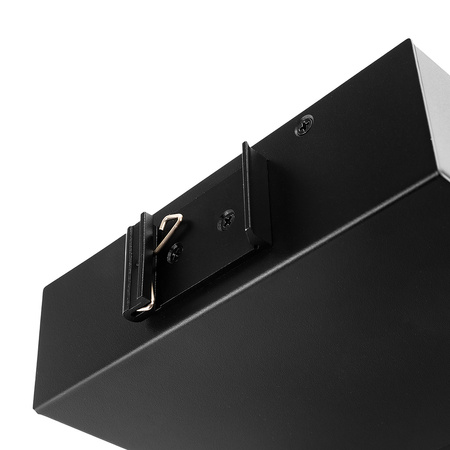

  • DIN35 rail mounting possible
  • Industrial design to withstand operating temperatures of -40 to 75 degrees Celsius

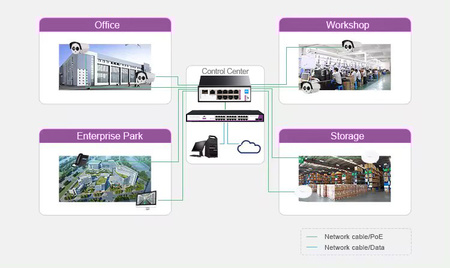

Spacetronik PoE switch applications

  • Metro-optical broadband network:

Data network operators such as telecommunications, cable TV and network system integration, etc.

  • Broadband private network

Suitable for financial, government, oil, railroad, electric power, public security, transportation, education and other industries.

  • Multimedia transmission

Integrated video, voice and data transmission, suitable for remote teaching, conference television, video.

  • Real-time monitoring

Simultaneous transmission of control signals, images and data in real time.

  • Resistant to harsh environments

Suitable for networking in harsh environments with strong electromagnetic interference and long distances.

Biurko z elektryczną regulacją wysokości

Power over Ethernet PoE - what is it?

Power over Ethernet (PoE for short) is a technology for transmitting power over an Ethernet cable. This allows us to simultaneously power the device and provide information exchange. PoE technology is particularly popular for IP cameras, VoIP phones, Internet access points (Access Point) and POS terminals. Network devices using PoE are convenient to use, which makes them well-liked by installers. Taking a surveillance network, for example - normally one would have to pull a separate power and transmission cable for each camera. Here we can use a switch that both powers the devices and transmits information from them.

switch spacetronik

High performance

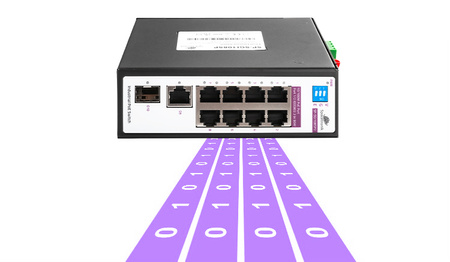

RJ-45 ports with auto-negotiation can ensure the transfer of large files, and are compatible with any 10/100Mbs Ethernet devices. Thanks to the non-blocking switching architecture, the product forwards and filters packets at full cabling speed for maximum throughput.
It is a switch for all conditions - rugged housing, temperature resistance. Ideal for industrial applications. PoE ports 1 and 2 support POE++ standard up to 90W.

switch spacetronik



CE, FCC, RoHS certifications

This Ethernet switch is certified by European CE, US FCC and meets the standards of ROHS directive, making it a fully tested quality product that meets all global standards and norms.


IP40 protection

The switch has an IP40 protection rating, which makes it ideal for most industrial applications.

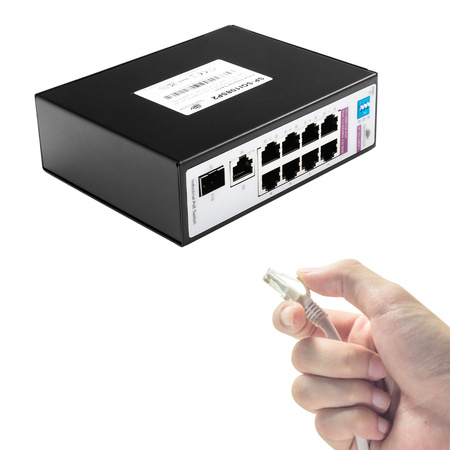

Plug&Play technology

Easy to use industrial switch - just plug in the device. No additional hardware or network configuration required.


Powering devices with POE++

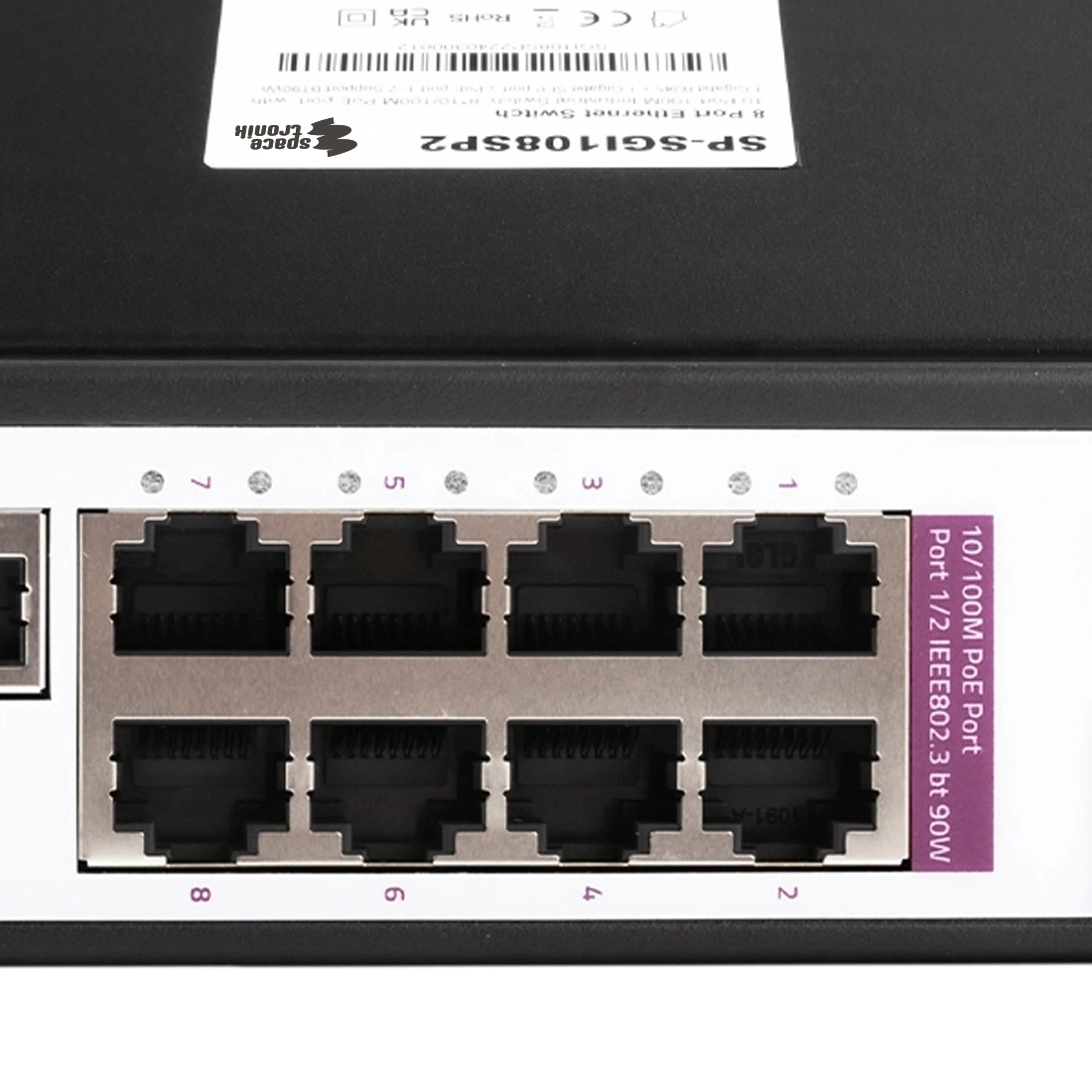

Supports a total PoE power of up to 30W per port. Automatically detects the power device, so it won't burn a non-standard PoE device or a normal PoE switch. Compatible with POE standard IEEE802.3af/at. Ports 1 and 2 support PoE++ IEEE802.3bt with up to 90W.

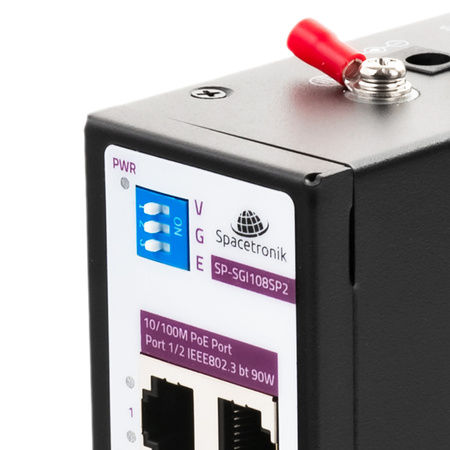

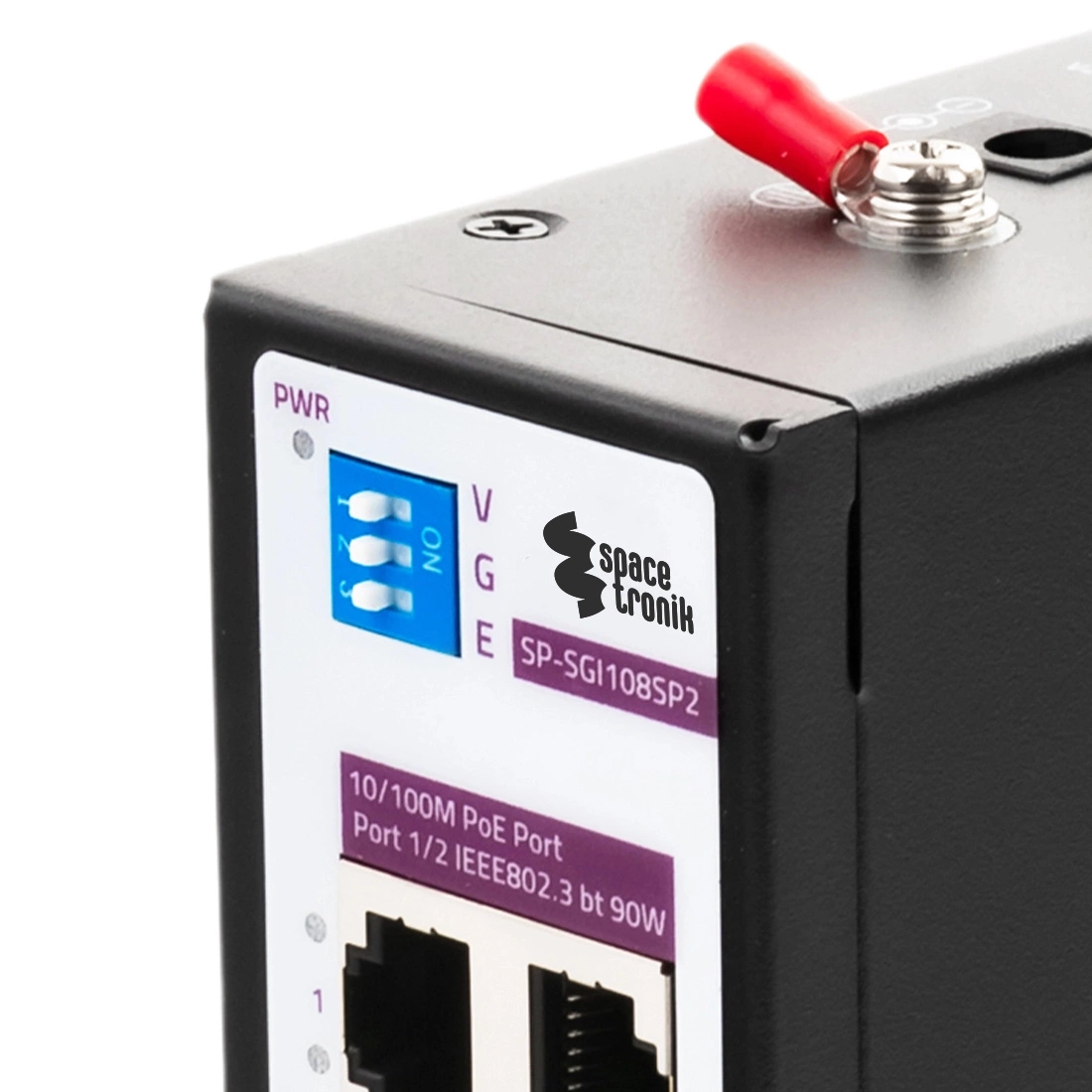

Simple button to switch between modes

With one button on the chassis, you can switch between VLAN, Normal, Extend modes


Operation over a wide temperature range

The Ethernet switches are designed with wide temperature support to ensure reliable operation in temperatures from -40?C to 75?C. Made of high-quality metal housing, rugged and durable, with long service life, provides better heat dissipation, suitable for most environments in industrial applications.

Technical Specifications SP-SGI108SP2

Voltage
Power input voltage - DC 48~55V

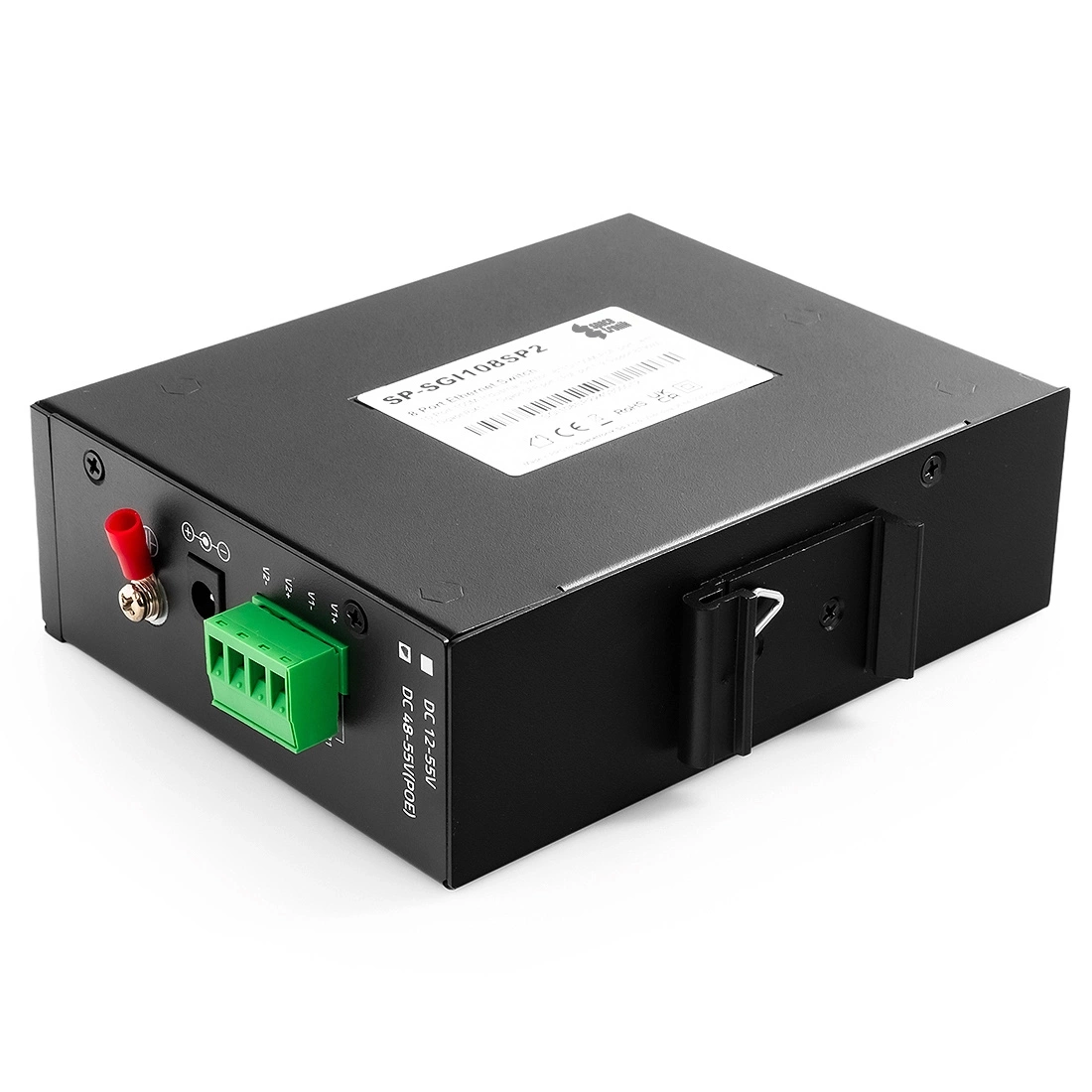

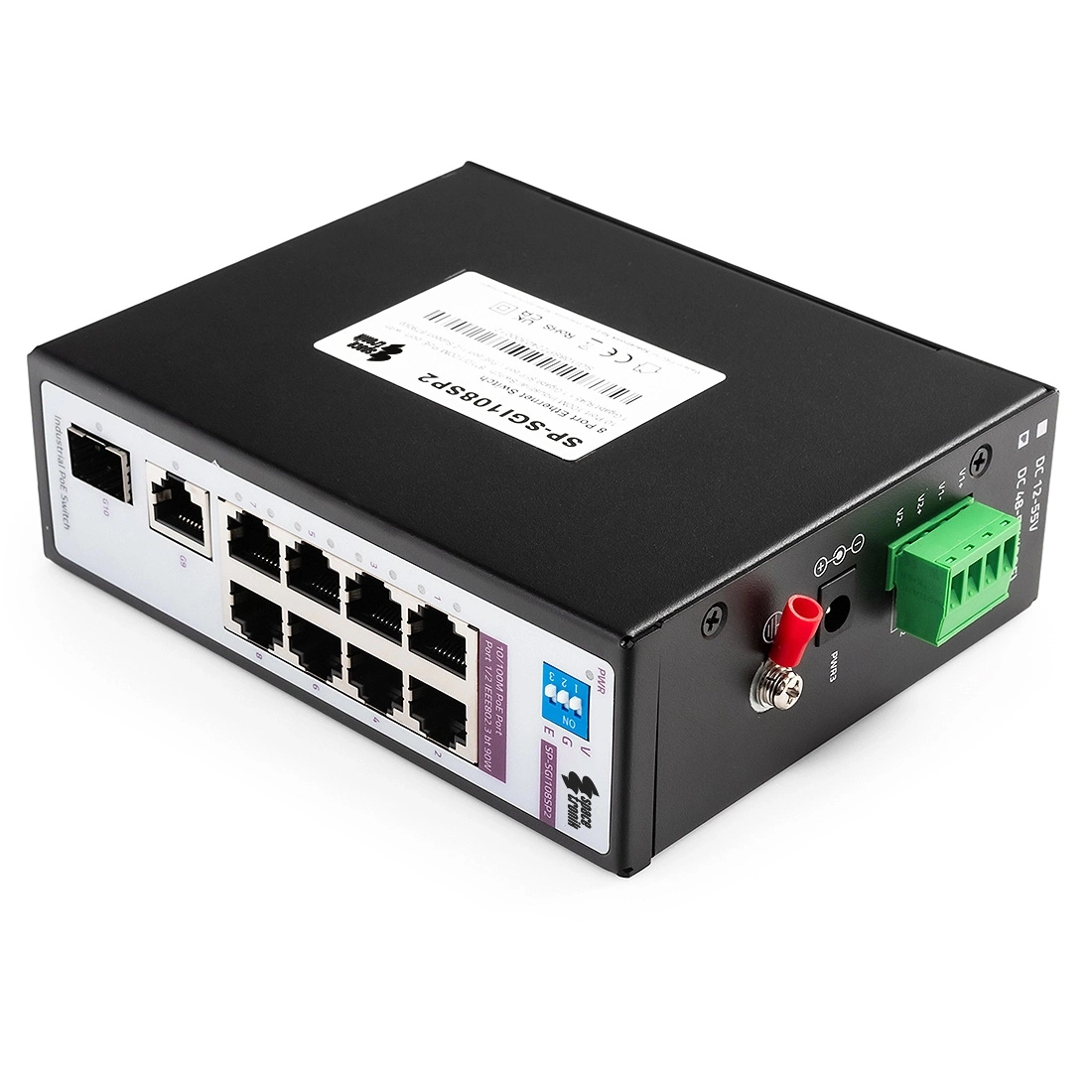

Power pins - 4 PIN industrial terminal (redundant V1+V1-, V2+V2-) / DC 2.1 (DC 2.1 cannot be used together with V1 and V2)

Performance
Switching capacity - 5.6Gbps
Performance - 4.166Mpps
MAC Address - 8K
Jumbo Frame - 9.6B
Transmission mode - Store and forward
MTBF - 100000h

PoE

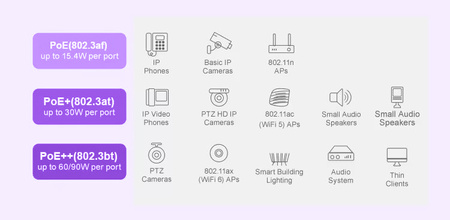

PoE standard: IEEE802.3af /IEEE802.3at
Single port (3-8): 15.4 W (IEEE 802.3af), 30 W (IEEE 802.3at)
Ports 1 and 2: up to 90W (IEEE 802.3bt)
PoE compatibility: IEEE 802.3af/at/bt
PoE port output voltage: DC 48-55V
PoE power pins: 1/2+ ; 3/6-

Modes - VLAN, Normal, Extend
Network protocols -IEEE802.3/u/z/af/at/bt
Network medium - 10BASE-T: Cat 3,4,5 or above UTP/STP (?100 m); 100BASE-TX: Cat5 or above UTP/STP (?100 m); 1000BASE-TX: Cat5 or above UTP (?100 m)
LED indicators - PWR, Link
Industry standards - EMI: FCC Part 15, CISPR (EN55022) class A, EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT), EN61000-4-5 (Surge)
Optical Medium - Multimode fiber: 850nm, 1310nm transmission distance: 550m/2Km; Single-mode fiber: 1310nm, 1550nm transmission distance: 20/40/60/80/100/120Km
IP protection - IP40

Dimensions
Product dimension - 138*108*44mm; Package dimension - 245*190*60mm
Net product weight - 0.646kg; Gross product weight - 0.781kg

Operating environment
Operating temperature: -40-75C
Storage temperature: -40-85C
Operating humidity: 10%~90% (non-condensing)
Storage Humidity: 5%~95% (non-condensing)

Package contents - industrial switch 1pc, manual 1pc, certificate 1pc, mounting arms 1pc.
Certifications - CE, FCC, RoHS

product features
List price
72,70 €/1pcs.
Entity responsible for this product in the EU
Spacetronik Sp. z o.o.More
ProducerSpacetronik Sp. z o.o.Address: ul. Wiśniowa 36Postal code: 64-000City: KościanCountry: PolandPhone number: +48661082052E-mail: info@spacetronik.pl
Responsible entitySPACETRONIK Sp. z o.o.Address: ul. Wiśniowa 36Postal code: 64-000City: KościanCountry: PolandPhone number: + 48 661 082 052E-mail: info@spacetronik.plDescription: SPACETRONIK
Symbol
SP-SGI108SP2
Producer code
SWITCH 8-port SP-SGI108SP2 Industrial PoE SFP5903031049558
Warranty
SFP ports
1
Number of ports
10
Network architecture
10/100Mbit
PoE resource (W)
360
Management
unmanageable
Type of installation
DIN rail
PoE power supply
Yes
