Spacetronik SPH-RS1102.0 4K HDR EDID 1/10 HDMI 1x10 splitter

Wondering how to show the same image on multiple mointors? The solution is to use an HDMI splitter. Ultra HDMI Splitter 1x10 allows you to distribute HDMI signal from one source to 10 receivers (TVs, Monitors, etc.)
The device transmits ultra-high quality Ultra HD 4K video and full 3D.

This product has the ability to buffer the signal as well as amplify it.
It is ideal for conference rooms to distribute the signal from one source to 10 screens or monitors.
The device is ideal for connecting an HD device (satellite receiver, DVD player, computer, console), to TV sets equipped with HDMI connectors.

Features of the HDMI splitter:

- One HDMI input signal split to 10 HDMI devices
- Support HDR, Full 3D HDMI V2.0, HDCP 2.2
- Support up to 4K 3820x2160 / 60Hz
- Superior 6G and TMDS clock speed up to 600MHz
- Deep Color 8 / 10 / 12 bit support
- DTS-HD / Dolby-TrueHD / DTS / Dolby-AC3 / DSD digital audio format
- Signal retiming support
- Input support up to 5 meters AWG26 length of standard HDMI cable, output up to 10 meters AWG26 length of cable
- Support for EDID transfer (switch) for intelligent matching of resolution and audio format between source device and display device
- No loss of quality
- CEC support (output1 only)
- Built-in IR extension function via IR-RX HDMI amplifier (device NOT included) to control video sources
- Power supply included

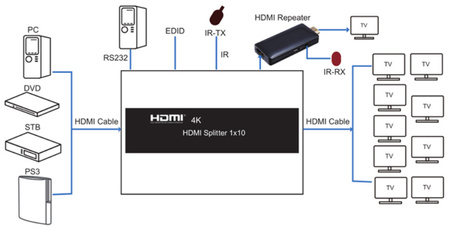

Example wiring diagram for connecting devices to the splitter:
