SPH-RS102_V20

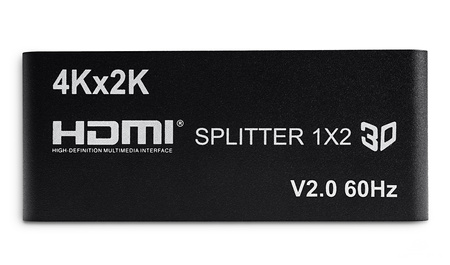

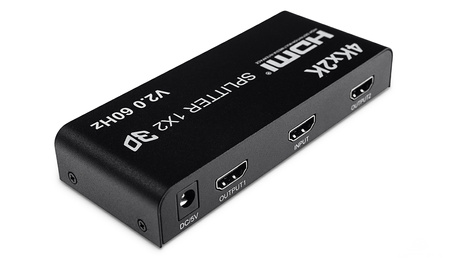

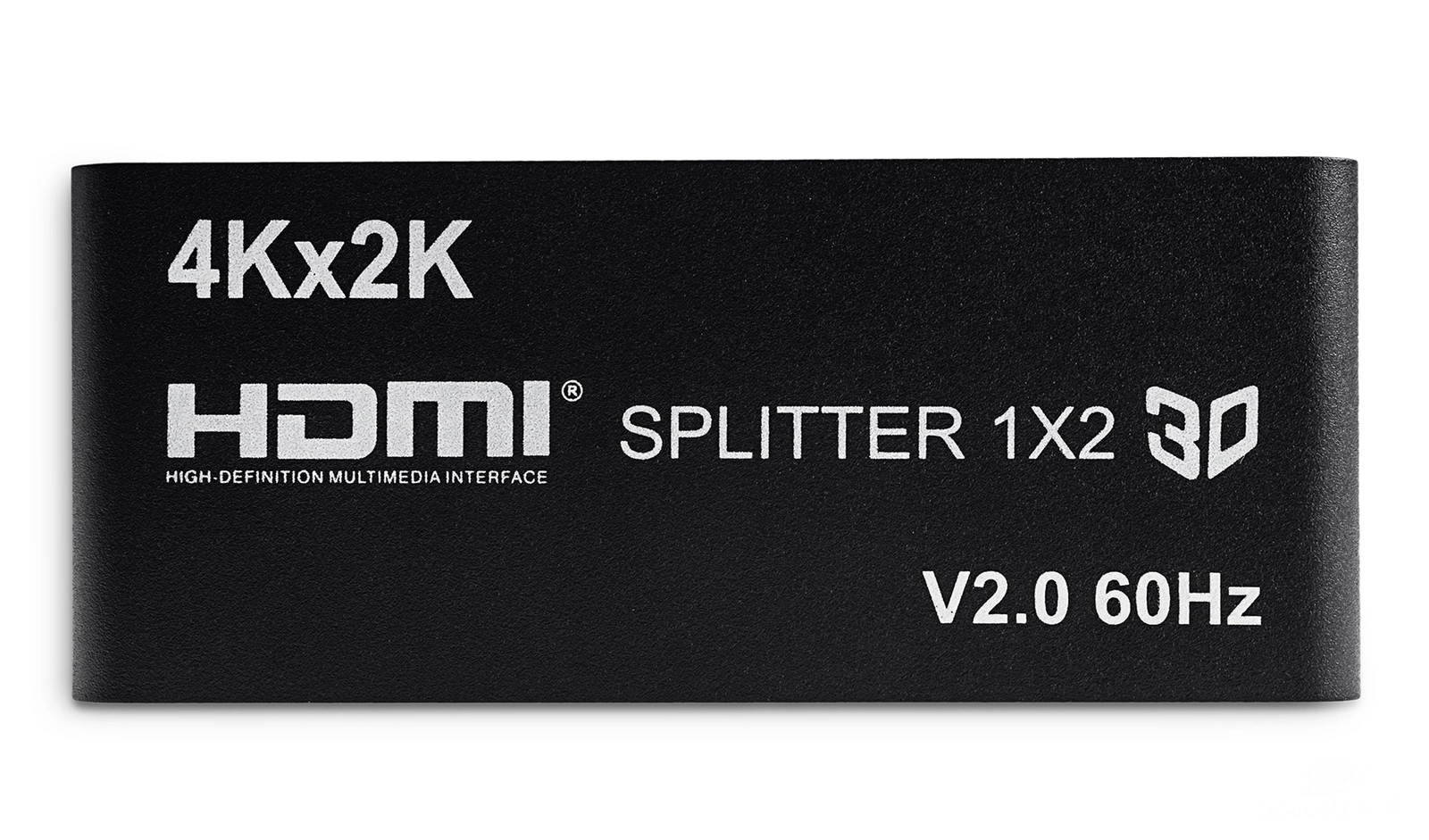

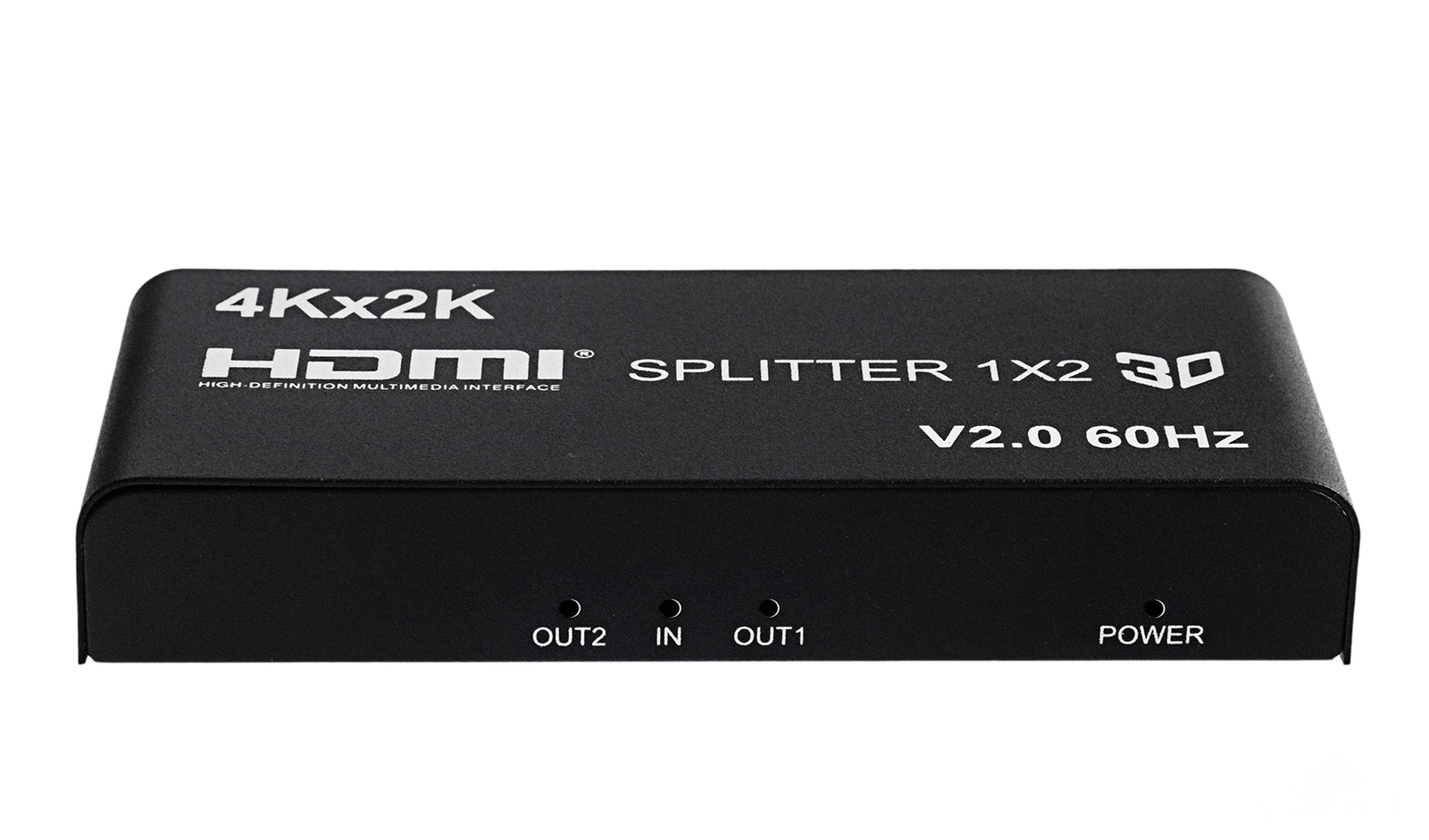

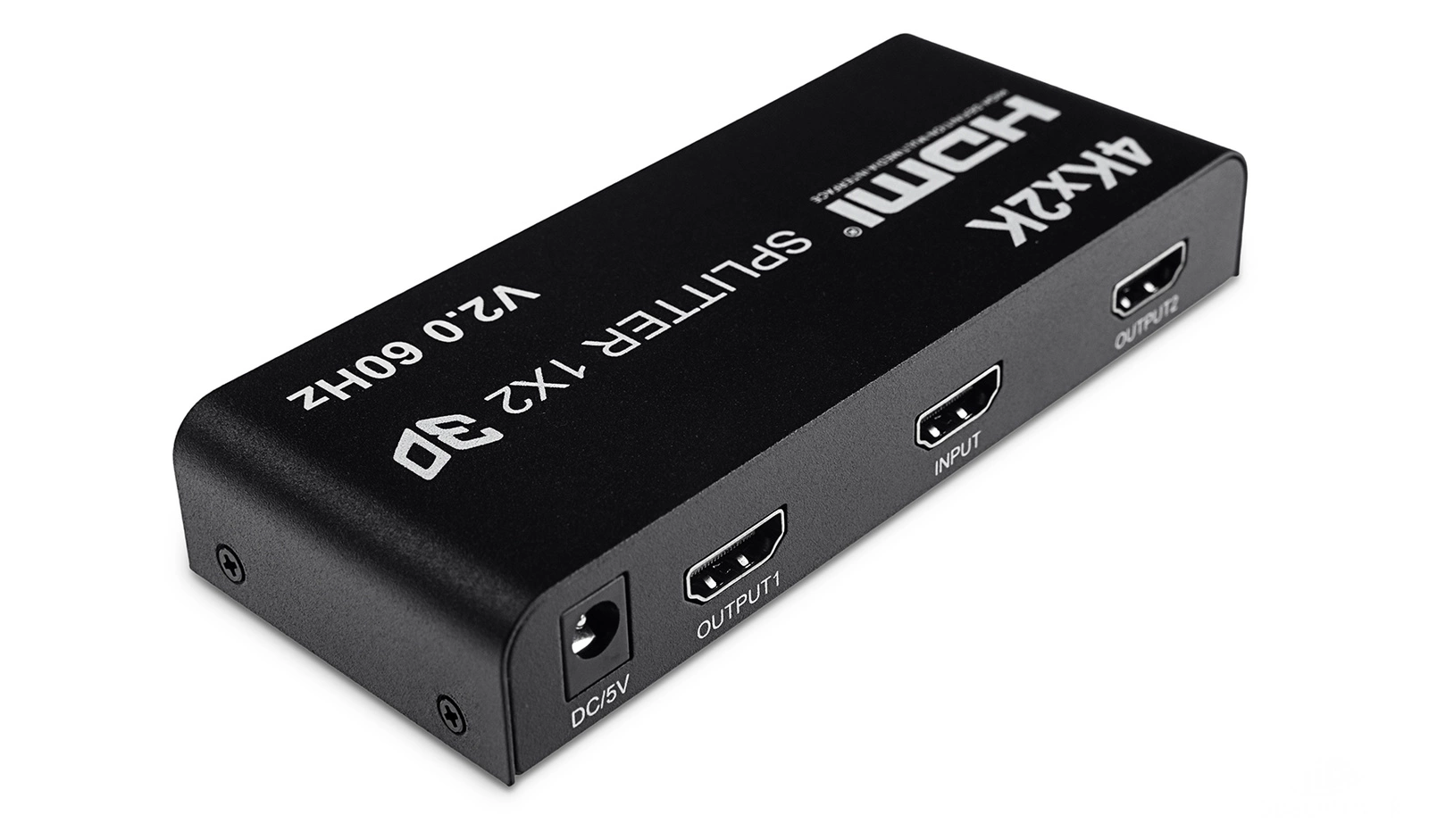

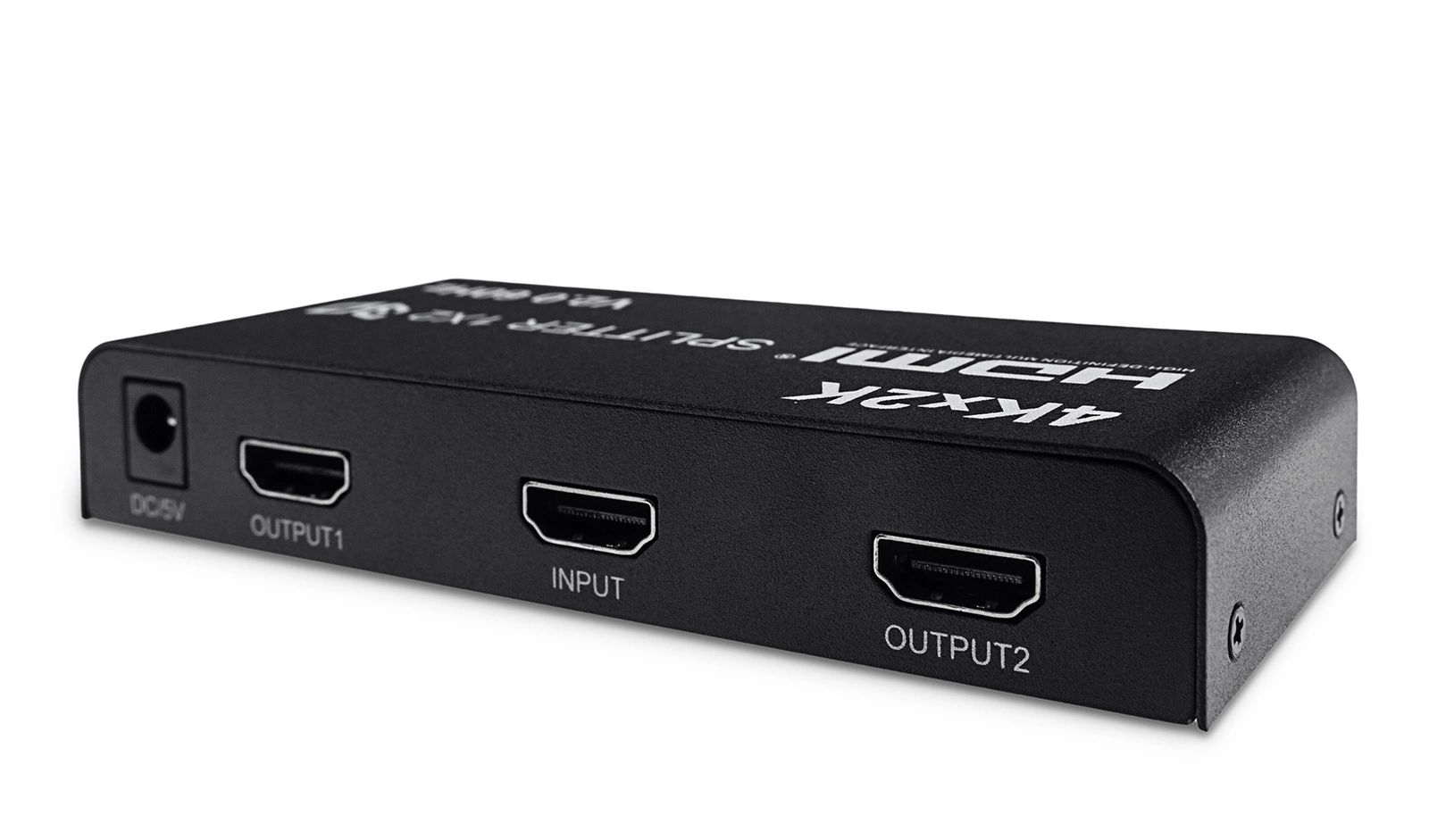

SPH-RS1022.0 4K HDR 1/2 HDMI 1x2 Splitter
Ultra HDMI Splitter 1x2 allows you to distribute HDMI signal from one source to two receivers (TVs, Monitors, etc.)The device transmits ultra-high quality Ultra HD 4K video and full 3D.
This product has the ability to buffer the signal as well as amplify it.
It is ideal for conference rooms to split the signal from one source to two screens or monitors.
The device is ideal for connecting an HD device (satellite receiver, DVD player, computer, console),
to TV sets equipped with HDMI connectors.
Key features of the HDMI splitter:
- One HDMI input signal split to two HDMI devices
- Support for HDMI version 2.0
- Full HD, Full 3D support
- Support up to 4K2K 3840x2160 / 60Hz
- Max trams rate up to 6Gbps
- TMDS up to 600MHz
- Support Deep Color 8 / 10 / 12 bit
- Support Blue-Ray 24/50 / 60fs / HD-DVD / xvYCC
- Digital audio format DTS-HD / Dolby-TrueHD / DTS / Dolby-AC3 / DSD / HD (HBR)
- Signal retiming support
- Input support up to 8 meters AWG26 length of standard HDMI cable, output up to 8 meters AWG26 length of cable
- No loss of quality
- Power supply included

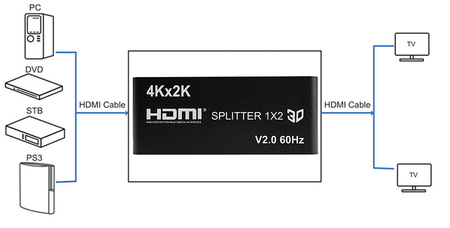

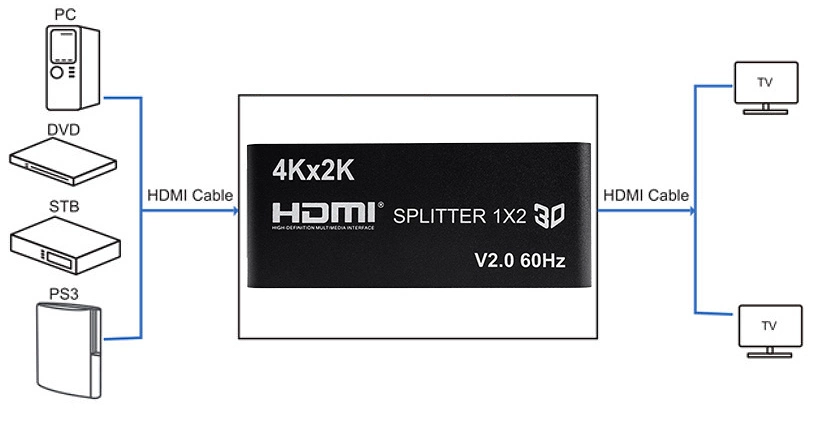

Example wiring diagram for connecting devices to the splitter:

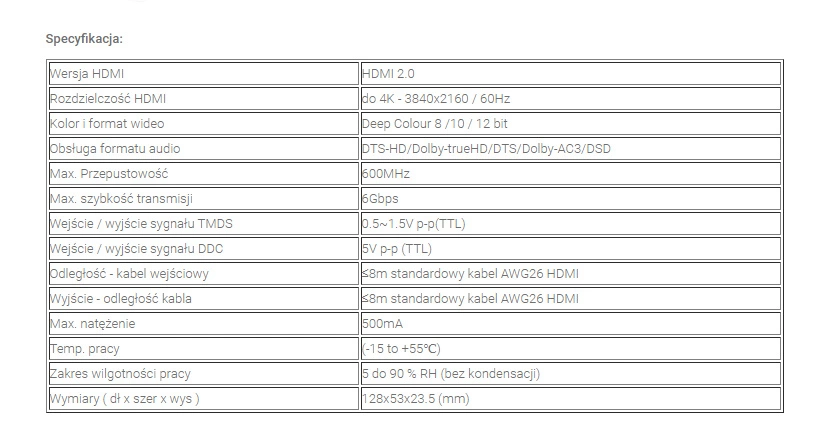

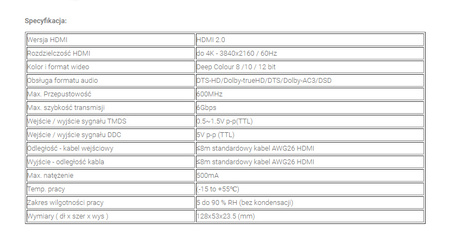

Technical specifications of HDMI splitter:
| HDMI version | HDMI 2.0 |
| HDMI resolution | up to 4K - 3840x2160 / 60Hz |
| Color and video format | Deep Colour 8 /10 / 12 bit |
| Audio format support | DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD |
| Max. Bandwidth | 600MHz |
| Max. transmission speed | 6Gbps |
| TMDS signal input/output | 0.5~1.5V p-p(TTL) |
| DDC signal input / output | 5V p-p(TTL) |
| Distance - input cable | ?8m standard AWG26 HDMI cable |
| Output - cable distance | ?8m standard AWG26 HDMI cable |
| Max. current | 500mA |
| Operating temp | (-15 to +55?) |
| Operating humidity range | 5 to 90% RH (non-condensing) |
| Dimensions ( L x W x H) | 128x53x23.5 (mm) |
Declaration of conformity >> HERE<<
https://dmtrade.pl/katalogi/deklaracje/splittery/splittery.pdf
product features
List price
22,40 €/1pcs.
Brand
Entity responsible for this product in the EU
Spacetronik Sp. z o.o.More
ProducerSpacetronik Sp. z o.o.Address:
ul. Wiśniowa 36Postal code: 64-000City: KościanCountry: PolskaPhone number: +48661082052E-mail: info@spacetronik.pl
Responsible entitySPACETRONIK Sp. z o.o.Address:
ul. Wiśniowa 36Postal code: 64-000City: KościanCountry: PolskaPhone number: + 48 661 082 052E-mail: info@spacetronik.plDescription: SPACETRONIK
Symbol
SPH-RS102_V20
Producer code
5903031013382
Warranty
Control
Brak
Number of inputs
1
Number of outputs
2
Resolution
up to 4K
