SPH-RS116_V20
HDMI 1x16 4K 60Hz HDR HDMI 2.0 3D 1/16 SPH-RS1162.0 splitter
Ultra HDMI Splitter 1x16 4K allows you to distribute HDMI signal from one source to 16 receivers (TVs, Monitors, etc.)The device transmits images in very high quality HDR 4K and full 3D.
This product has the ability to buffer the signal as well as amplify it.
It is ideal for conference rooms to distribute the signal from one source to 16 screens or monitors.
The device will be perfect for connecting an HD device (satellite receiver, DVD player, computer, console),
to multiple TV sets equipped with HDMI connectors.
Key features of the 1/16 splitter:
- One HDMI input signal divided into 16 HDMI devices
- HDMI version 2.0
- Support for HDR, Full 3D
- HDCP 2.2 standard
- Support up to 4K 3840x2160 / 60Hz
- Max tramsec speed up to 6Gbps
- TMDS up to 600MHz
- Deep Color 8/10/12bit support
- Digital audio format DTS-HD / Dolby-TrueHD / DTS / Dolby-AC3 / DSD
- Signal retiming support
- Input support up to 10 meters AWG26 length of standard HDMI cable, output up to 15 meters AWG26 length of cable (with 4k resolution selected, input up to 5 meters, output up to 10 meters.
- No loss of quality
- Power supply included
Example diagram of how to connect devices to the splitter:

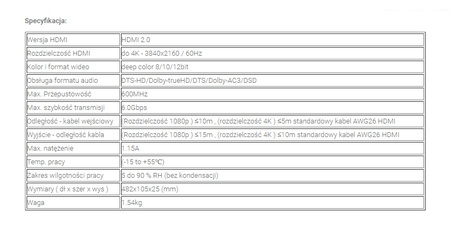

Technical specifications of the HDMI splitter:
| HDMI version | HDMI 2.0 |
| HDMI resolution | up to 4K - 3840x2160 / 60Hz |
| Color and video format | deep color 8/10/12bit |
| Audio format support | DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD |
| Max. Bandwidth | 600MHz |
| Max. bit rate | 6.0Gbps |
| Distance - input cable | (1080p resolution ) ?10m , (4K resolution ) ?5m standard AWG26 HDMI cable |
| Output - cable distance | (1080p resolution ) ?15m , (4K resolution ) ?10m standard AWG26 HDMI cable |
| Max. current | 1.15A |
| Operating temp | (-15 to +55?) |
| Operating humidity range | 5 to 90% RH (non-condensing) |
| Dimensions (L x W x H) | 482x105x25 (mm) |
| Weight | 1.54kg |
Declaration of conformity >>HERE<<
http://dmtrade.pl/katalogi/deklaracje/splittery/splittery.pdfproduct features
List price
143,00 €/1pcs.
Brand
Entity responsible for this product in the EU
Spacetronik Sp. z o.o.More
ProducerSpacetronik Sp. z o.o.Address:
ul. Wiśniowa 36Postal code: 64-000City: KościanCountry: PolandPhone number: +48661082052E-mail: info@spacetronik.pl
Responsible entitySPACETRONIK Sp. z o.o.Address:
ul. Wiśniowa 36Postal code: 64-000City: KościanCountry: PolandPhone number: + 48 661 082 052E-mail: info@spacetronik.plDescription: SPACETRONIK
Symbol
SPH-RS116_V20
Producer code
HDMI 1x16 SPH-RS116_V20 4K 60 Hz HDR splitter5903031020335
Warranty
Number of outputs
16
Rozdzielczość obrazu
up to 4K
