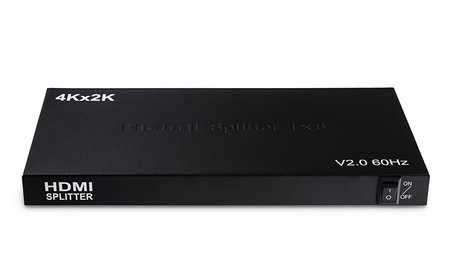

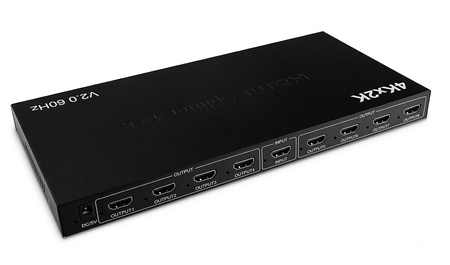

HDMI Splitter 1x8 SPH-RS1082.0 4K HDR 1/8

Ultra HDMI Splitter 1x8 allows you to distribute the HDMI signal from one source to eight receivers (TVs, Monitors, etc.) The device transmits the image in very high quality Ultra HD 4K and full 3D.

This product has the ability to buffer the signal as well as amplify it. It is ideal for conference rooms to split the signal from one source to two screens or monitors. The device is ideal for connecting an HD device (satellite receiver, DVD player, computer, console),
to TV sets equipped with HDMI connectors.

Key features of the HDMI splitter:

- One HDMI input signal split to eight HDMI devices
- Support for HDMI version 2.0, HDCP 2.2
- Full HD, Full 3D support
- Support up to 4K2K 3840x2160 / 60Hz
- Max tramsec speed up to 6Gbps
- TMDS up to 600MHz
- Support Deep Color 8 / 10 / 12 bit
- Support Blue-Ray 24/50 / 60fs / HD-DVD / xvYCC
- Digital audio format DTS-HD / Dolby-TrueHD / DTS / Dolby-AC3 / DSD / HD (HBR)
- Signal retiming support
- Input support up to 10 meters AWG26 length of standard HDMI cable, output up to 20 meters AWG26 length of cable (with 4k resolution selected, input up to 5 meters, output up to 10 meters)
- No loss of quality
- The power supply is included in the set

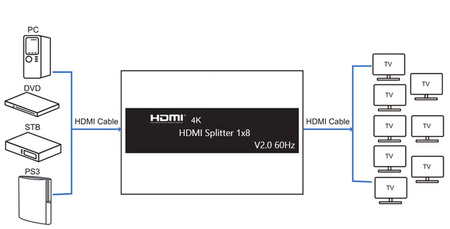

Example diagram of how to connect devices to the splitter:

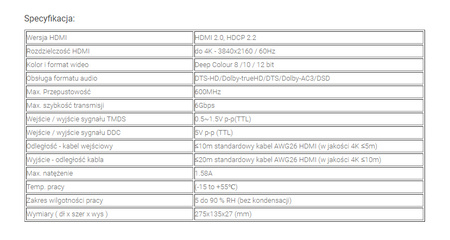

Technical specifications of the HDMI splitter:
