SPH-RS104_V20
SPH-RS1042.0 4K HDR 1/4 HDMI 1x4 Splitter
Ultra HDMI Splitter 1x4 allows you to distribute HDMI signal from one source to four receivers (TVs, Monitors, etc.) The device transmits images in very high quality Ultra HD 4K2K and full 3D.This product has the ability to buffer the signal as well as amplify it.

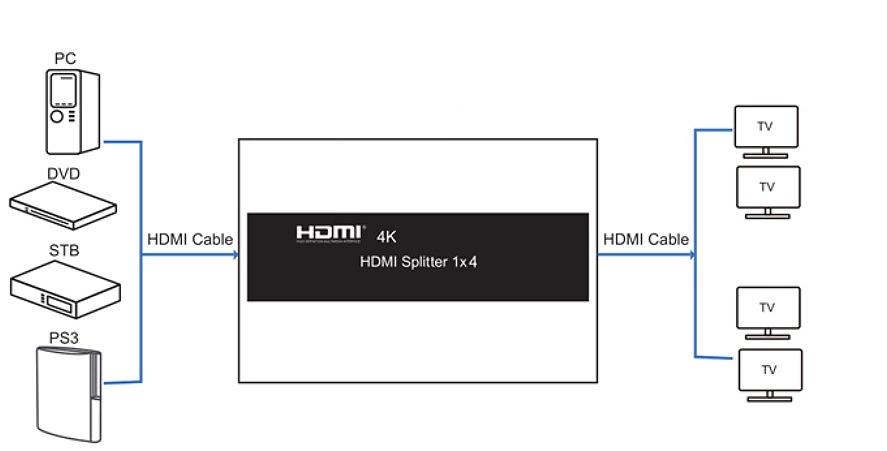

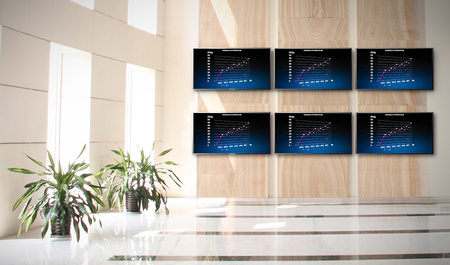

It is perfect for conference rooms to distribute the signal from one source to four screens or monitors. The device is ideal for connecting an HD device (satellite receiver, DVD player, computer, console), to TV sets equipped with HDMI connectors.
Key features of the HDMI 1x4 splitter:
- One HDMI input signal split to 4 HDMI devices
- HDMI version 2.0
- Support for HDR, Full 3D
- HDCP 2.2 standard
- Support up to 4K2K 3840x2160 / 60Hz
- Max tramsession speed up to 6Gbps
- TMDS up to 600MHz
- Deep Color 8 / 10 / 12 bit
- Support LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio;
- No loss of quality
- Power supply included
HDMI splitter technical specification
| HDMI version | HDMI 2.0, HDCP 2.2 |
| HDMI resolution | up to 4K - 3840x2160 / 60Hz |
| Color and video format | Deep Colour 8 /10 / 12 bit |
| Audio format support | DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD |
| Max. Bandwidth | 600MHz |
| Max. bit rate | 6.0Gbps |
| Distance - input cable | (1080p resolution ) ?15m , (4K resolution ) ?8m standard AWG26 HDMI cable |
| Output - cable distance | (1080p resolution ) ?15m , (4K resolution ) ?8m standard AWG26 HDMI cable |
| Max. current | 350mA |
| Operating temp | (-15 to +55?) |
| Operating humidity range | 5 to 90% RH (non-condensing) |
| Dimensions ( L x W x H) | 178x67x21 (mm) |
Declaration of Conformity >> HERE<<
http://dmtrade.pl/katalogi/deklaracje/splittery/splittery.pdf
product features
List price
30,70 €/1pcs.
Brand
Entity responsible for this product in the EU
Spacetronik Sp. z o.o.More
ProducerSpacetronik Sp. z o.o.Address:
ul. Wiśniowa 36Postal code: 64-000City: KościanCountry: PolskaPhone number: +48661082052E-mail: info@spacetronik.pl
Responsible entitySPACETRONIK Sp. z o.o.Address:
ul. Wiśniowa 36Postal code: 64-000City: KościanCountry: PolskaPhone number: + 48 661 082 052E-mail: info@spacetronik.plDescription: SPACETRONIK
Symbol
SPH-RS104_V20
Warranty
Number of outputs
4
Rozdzielczość obrazu
up to 4K
